| Prod Model: |
HCA-type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Cabinet Air Conditioner |
| Operating Voltage: |
230 VAC |
| Mounting: |
Floor Standing |
| Certification: |
CCC |
Product Description
Floor standing Power saving Server Room Use Precision Air Conditioner
Outline:
As computers have become an essential part of almost every organisation, it is very essential that computers and servers run at the correct temperature. When servers overheat, they may run slow, automatically shut down or simply crash. Unplanned server downtime can have potentially catastrophic implications for businesses where a continuous IT function is essential for operations.
Technical Parameters: Rated Voltage and frequency | 380V ±10 % 50 ±5Hz |
| Temperature ranger | -40 - 50ºC |
| Rated airflow | 5000 - 29500 m3/h |
| Standard conditions cooling capacity | 17-103KW |
| Air-cooled ratio | 3.32-3.49 |
| EER | 3.0 ( EER of energy-saving efficient more than 3.6) |
| Sensible heat ratio | 0.91-0.99 |
| Outside Hydrostatic | 70-300pa |
| Temperature control | 17 - 32ºC ±1ºC |
| Sensible control | 40 - 70% ±5% |
| Filtering grade | Over G4 |
| Protection function | System could choice the phase sequence protection, over-voltage protection and leakage protection to protect units can working normally in the case of unattended. |
| Monitor function | RS-485 communication serial port, MODBUS,SUNRISE-PLUS communication protocol( optional TCP/IP interface) 49 - 67dB(A). |
| 40 - 58dB(A) |
| IP rating | I P 54(outside),I P 20 |
| Insulation class | Class F |
| Fire rating | A level |
| Safety devices | Optional leakage alarm, smoke alarm, fire alarm. |
| Information interface | A: Display specifications: Standard 240 × 64 pixels large LCD. |
| B: Display content: 1.Unit run-time status. 2. Automatic maintenance tips, troubleshooting, parts and other alarms. 3.Graphical display of temperature and humidity curve, all the components of output state, and parts run timing. |
| C: Information record: 1.Machine and components of operating time. 2. 1000 historical alarm record. |

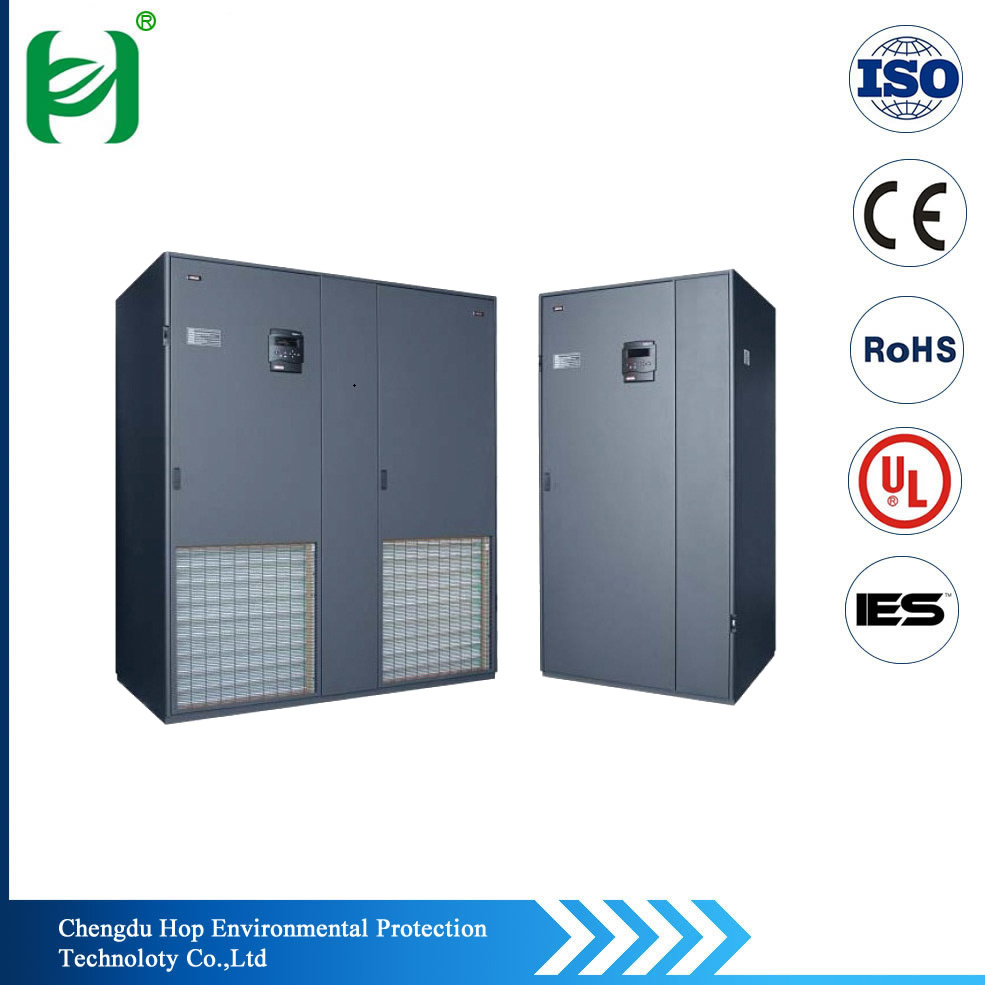

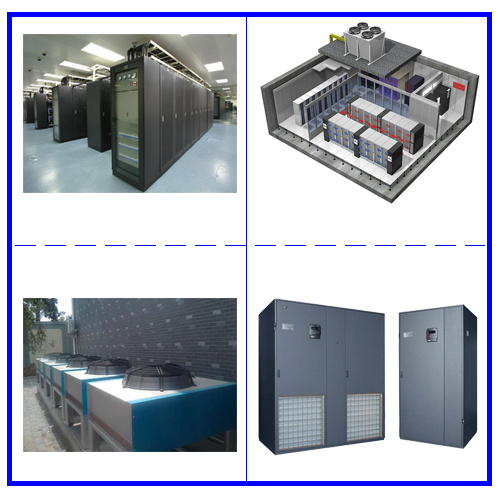

Prodcut picture & Application:
PI030 series is suitable for IDC Room, Telecom center, computer center, control center and other engine room.
Certificate:
Exhibition Show:
Any questions, pls don't hesitate to contact:
Pearl Zhou
Phone//: 0086 15928835844
Chengdu Hop Environmental Protection Technology Co., Ltd. Are specialized Research and development in Indurstrail air conditioning and electric energy meter more than 20 years, We are committed to environmental protection and energy conservation, hope that through our efforts to bring better environmentally friendly products for the world.
We also are supplier of China telecom China moble and China Unicom.
With over 10 years' manufacturing & trading experiences, our products have got dozens of patent-letter, and are hot sale all over the world since 2004.
Our continuous innovation based on customer needs, has established our leading position in energy-saving equipment, industrial air conditioning, energy management and environment monitoring.
We take "professional, careful, thorough" for the idea. Strive to do the "low-carbon life, low-carbon development, fine energy-saving"!
