| Prod Model: |
TJH series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour: |
White |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CB |
Product Description

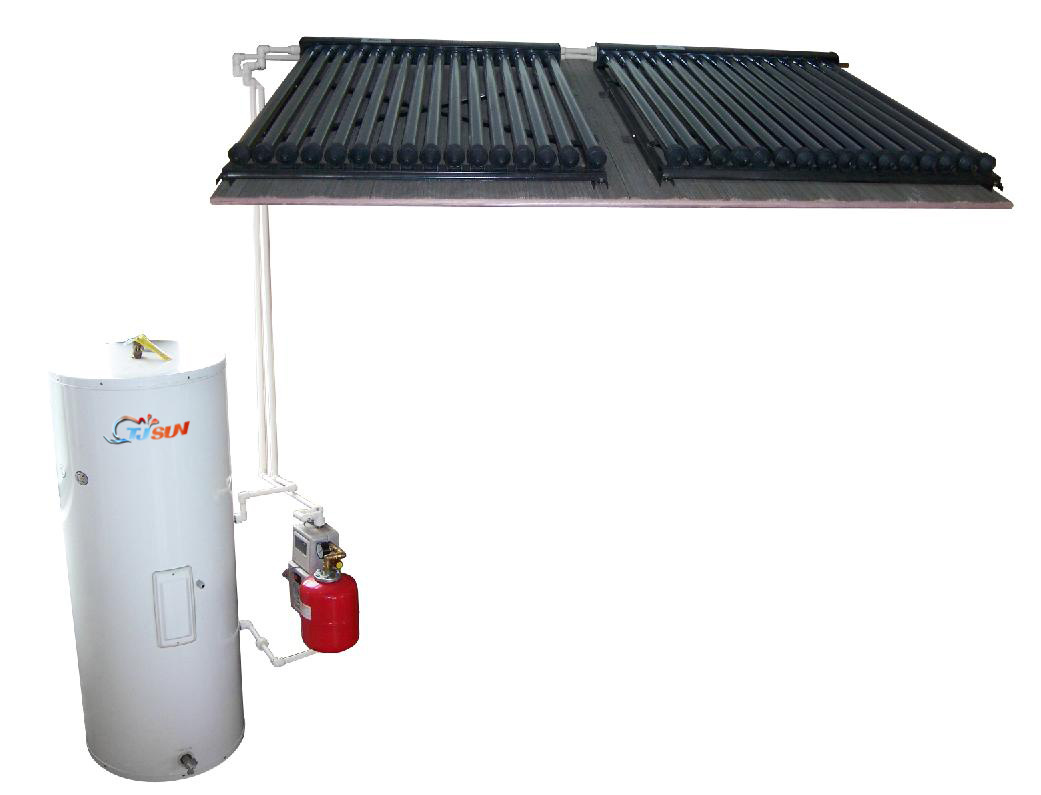

Separated Pressurized Solar water heater
A. Module design, arbitrary combination, harmonize with the building perfectly
B. Intelligent control and automatic operation
C. Anti-freeze: Using the anti-freezing liquid as the medium and the controller Has the anti-freezing function
D. Multifunction: Bathing, washing, domestic heating etc.
E. Work at anytime and enjoyable.
F. Material of Model:
1) The pipeline is made of red copper and conducted by heat transfer medium Liquid
2) Temperature preservation is equipped with standard electric water heater Setting, Automatic temperature control exchanger, and increased anode magnesium bars Sticking to prevent furring
3) The insulating layer uses polyurethane bulk bubble and has a good effect of Temperature preservation
4) Water tank (interior): Stainless steel inner tank
5) Manifold: Aluminum alloy out casing & red copper flow passage
6) Glass tube: New trivalent element heat tube, borrosilicate glass 3.3
7) Solar working station
8) With heat pipe: Anti-freezing > -35 degrees centigrade
9) Water capacity: 150L, 200L, 250L, 300L, 500L
10) Pressure: 6 Bars
11) Daily efficiency: >= 55%(>=42% in winter)
12) Heat preservation: 72h to 80h
13) Electric heater: 1.5Kw to 3Kw
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
