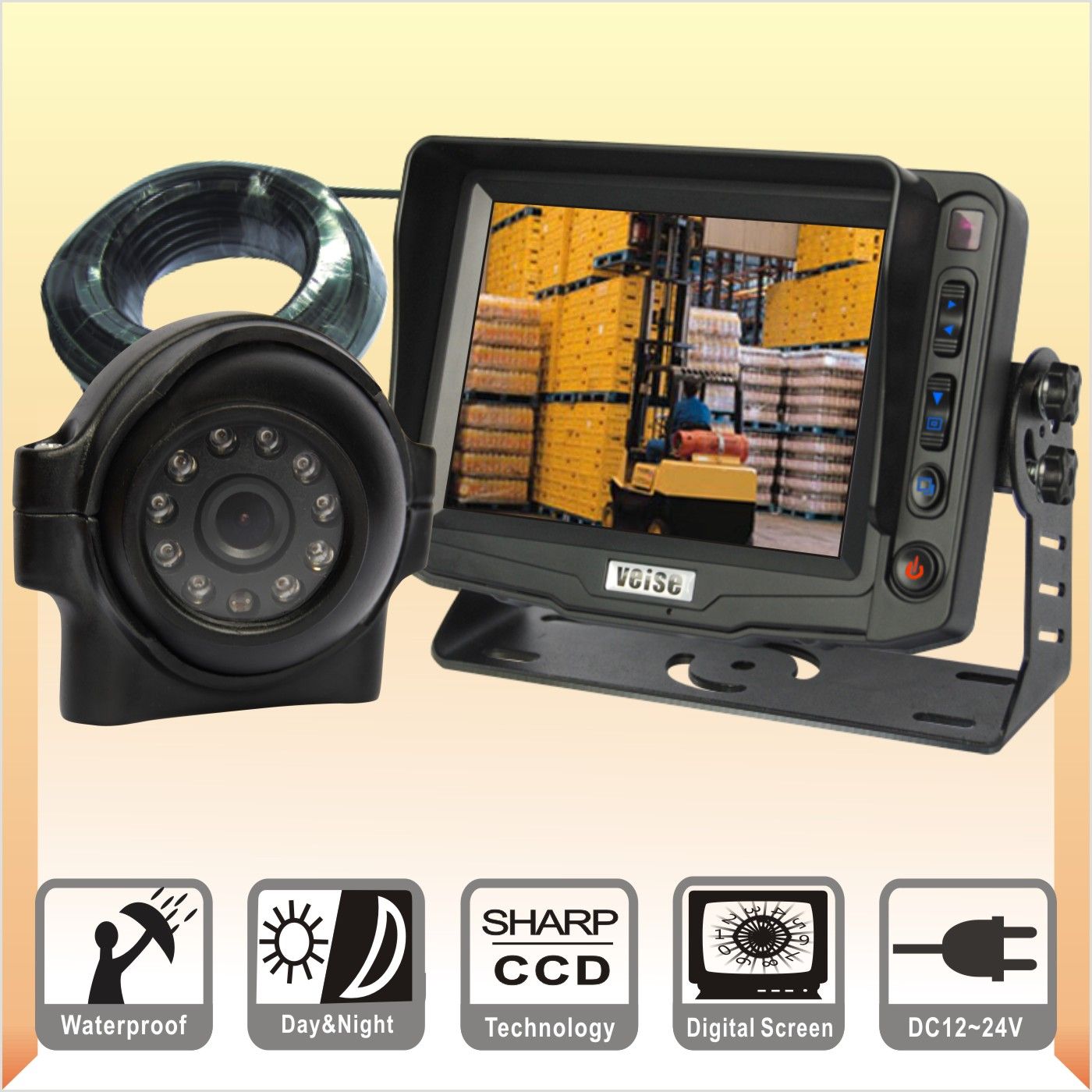

Reverse Camera System with Waterproof Camera
| Price: |
US $ 105-155/Piece |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
DF-5270511 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
5inch |
| Free Operating Voltage: |
8-32V |
| Usable Illumination: |
0lux ,Built in 10PCS IR |
| Interface: |
Air Plug |
| Chip: |
CCD |
| Waterproof Grade: |
IP69k |
| Definition: |
700tvl |
Product Description
Reverse camera system with waterproof cameraReverse camera system with waterproof camera for the narrow aisle trucks, Reach Truck, Side Loader, Tipping Truck, Paver Machine, also suits for narrow aisle forklifts in the factories, large supermarkets, warehouse
The patented 5" Digital Screen Monitor Support Two-channel Camera Video Audio Inputs, Automatically Adjust Brightness to Display and Button by According Environment, DC14+87V(Td400mS) 5pulses Load Dump, 300cd/m2 Brightness, OSD Menu Separately Set Each Camera Mirror/Normal image, Trigger Priority of Camera image Display, Reversing Image Delay Time 0-10s
420 TV Lines High Performance Side Camera IP69K Waterproof and 10G Shockproof, Easy to Install
| Aluminum Shell Waterproof IR Color Camera(MODEL:DF-8053*2) |
| Image Type: 1/3 Color CCD |
| Horizontal Resolution:420TV Lines |
| Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V) |
| Usable Illumination : 0Lux ( Built in 10pcs IR for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Video Output:1.0Vp-p75Ω |
| Power supply:DC12V from Reversing Monitor |
| Dimensions: 56(L) x 64(W) x 74(H)mm |
|
| 5 inches Digital Screen TFT LCD Color Monitor(Model:SP-527) |
| Digital Screen TFT LCD Color Monitor with Removable Sun Visor |
| OSD MENU Separately Set Each Camera Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-10" |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| Automatically Adjust Brightness to Display and Button by According Environment |
| Color System:PAL/NTSC (AUTO) |
| Display Resolution: 640RGB(H) X 480(V) dot |
| Accepts up to 2 Cameras Video Inputs:1.0Vp-p75Ω |
| Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 |
| Contrast ratio: 500:1 |
| Back-light : Single LED 300cd/m2 Brightness |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Load Dump: DC14+67V(Td400mS) 5pulses |
| Free Operating Voltage DC8-32V |
| External dimensions:L*W*T(151X113X50)mm(without mounting) |
| Weight Approx: 270g |
|
| Product Accessories |
| U- Support Bracket\Angle Adjustment Screw\Removable Sun Visor\Electrical Connecting Cable\15m cable*2\Auto cigarette lighter\Remote Control\User's Manual |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
