Waterproof Security Camera System with ABS+PC Housing Wireless Camera
| Price: |
US $ 120-180/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DF-723H2361 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
450(CD/M2) |
| Waterproof Level: |
IP69k |
| Load Dump: |
DC14+87V(Td400ms) 5pulses |
| Free Viewing Angle: |
DC10~32V |
| Technology: |
Wireless |
| Style: |
Box Camera |
| Type: |
Video Camera |
| Sensor: |
CMOS |
| HDMI Format: |
720P |
| Kind: |
Manual Focus Lens |
| Certification: |
E-MARK |
| Feature: |
Vandal-proof |
| Sensor Size: |
1/3 inch |
| Horizontal Resolution: |
500tvl |
Product Description

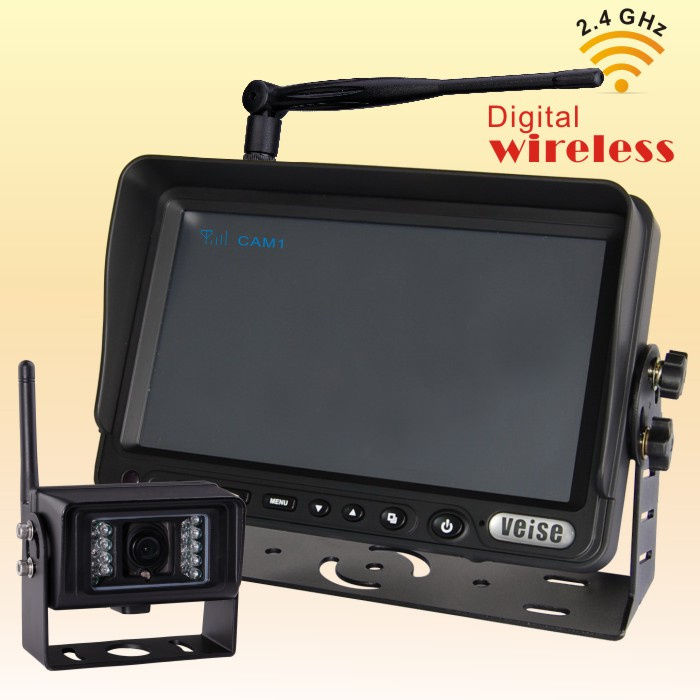

Waterproof Security Camera System with ABS+PC housing Wireless Camera FOR FARM TRACTORS DIGITAL WATERPROOF AGRICULTURE Equipment(Included 2 Pcs Digital Wireless Waterproof IR Camera)
120° Digital Wireless Waterproof IR Camera with 18 Infra-red LEDs to Illuminate the Camera's View for Crisp(15m night view distance maximum) Night Vision
Estimate of 100 meter wireless send distance without block,Support 2 channel Camera Video Audio Inputs,CAM1 and CAM2 individually set automatically receive image mode, CAM1 image mode automatically receive priority, CAM1 individually set reversing ruler
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision
| Digital Wireless Receive Monitor(Model:SP-723H2) |
| 7" Digital Screen TFT LCD Monitor with Removable Sun Visor |
| Built in 2 CH 2.4GHz Digital Wireless Receiver |
| Operation Frequency:2400 ~ 2483.5MHz |
| Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE) |
| Overlapping Hopping Channel:80 |
| Color System:PAL/NTSC |
| Display Resolution: 800RGB(H) X 480(V) dot |
| Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 450 |
| Contrast ratio: 500:1 |
| Operating temperature: -20ºC to +70ºC |
| Storage temperature: -30ºC to +80ºC |
| Free Operating Voltage: DC10~32V |
| External dimensions:(L x W x T) (185X122X28mm) without mounting Sun Visor |
| Weight Approx: 400g |
|
| Digital Wireless Waterproof IR Camera(MODEL:DF-8275H-SFS) |
| Image Type: 1/3 inch Color CMOS |
| Built in 2.4GHz Digital wireless transmitter |
| Transmission Power:18dBm with Power control |
| Line of Sight Range:≤100M |
| Horizontal Resolution:500TV Lines |
| Effective pixel:NTSC:720(H)X480(V);PAL:720(H)X480(V) |
| Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark) |
| Free viewing angle: 120° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Free Operating Voltage: DC10-32 Volts |
| Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting) |
| Weight : 450g |
|
| Accessorie |
| U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3, Auto cigarette lighter,User's Manual |
|
|
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
