Reversing Camera System with 7-Inch Digital LCD Monitor
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
DF-7370511 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Free Viewing Angle: |
130° |
| Shockproof: |
10g |
| Color System: |
PAL/NTSC (Auto) |
| Brightness: |
400(CD/M2) |
| Chip: |
CCD |
| Definition: |
600tvl |
| Waterproof Grade: |
IP69k |
Product Description

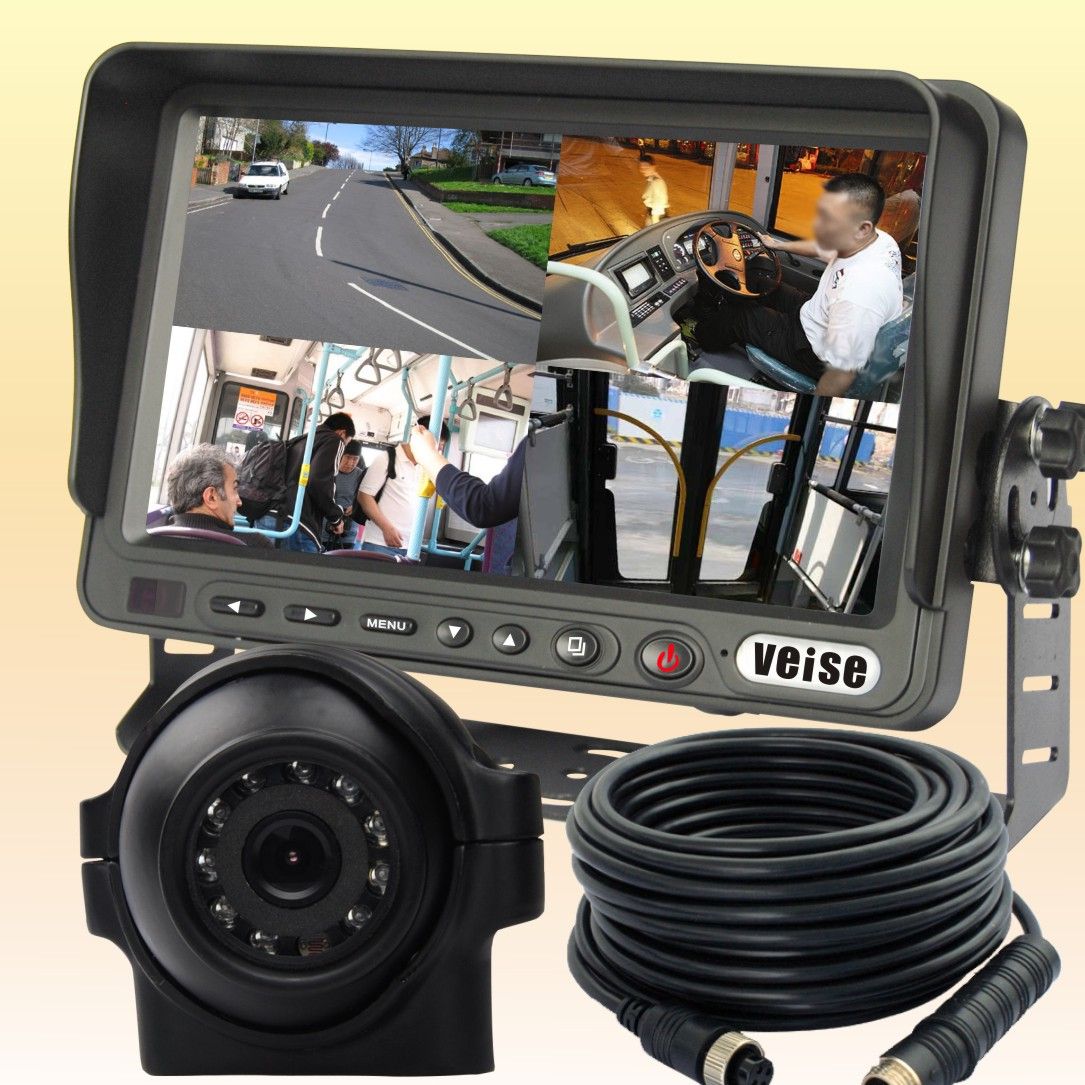

Reversing Camera System with 7-inch Digital LCD Monitor(DF-7370511)
1. Input voltage available from DC11V-36V with audio
2. Mirror or no mirror could be set seperately in each channel
3.Could be connected with 4 cameras for side view and rear view
| Quad Monitor Camera System Product Specification |
| Aluminum Shell Waterproof IR Side CCD Camera(MODEL: DF-8053*1) |
| Image Type: 1/3 Color Sharp CCD |
| Horizontal Resolution: 600TV Lines |
| Effective pixel: NTSC: 768(H)X492(V); PAL: 768(H)X582(V) |
| Usable Illumination: 0Lux ( Built in 10pcs IR LED' s for Picture Support in the Dark) |
| Free viewing angle: 130° |
| Waterproof: IP69K |
| Shockproof: 10G |
| Video Output: 1.0Vp-p75Ω |
| Power supply: DC12V from Reversing Monitor |
| Dimensions: 74(W) x 49(H) x 57(D) mm (without mounting) |
|
| 7 inches Digital Screen TFT LCD Color Quad Monitor (Model: SP-737) |
| 7" Digital Screen TFT LCD Color Quad Monitor with Removable Sun Visor |
| Single View/Split View/Quad image View Selectable |
| OSD MENU Separately Set Each Camera Trigger Priority |
| OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30” |
| OSD MENU Separately Set Each Camera Mirror/Normal image |
| Manual and Automatic Switch Display Mode |
| 1 Cable Solution System Make It Easy For Users To Install and Use The Device In Any Places |
| Color System: PAL/NTSC (AUTO) |
| Display Resolution: 2400(H) X 480(V) dot |
| Support Four Camera Inputs: 1.0Vp-p75Ω |
| Wide view angle(CR> 10): (up/ down): 45/65 (left/right): 65/65 |
| Brightness (cd/m2): 400 (Automatically Adjust Environment by According) |
| Contrast ratio: 500: 1 |
| Back-light: Single LED |
| Operating temperature: -20º Cto +70º C |
| Storage temperature: -30º Cto +80º C |
| Free Operating Voltage DC11-32V (1 Cable Solution) |
| External dimensions: L*W*T(185X124X48)mm(without mounting) |
| Weight Approx: 379g |
|
| Product Accessories |
| Monitor bracket, 15m cable*4, Electrical connecting cablesolution, Auto cigarette lighter. |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
