| Prod Model: |
P5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apple4s ( 8 Inch): |
Apple 5s (10 Inch) |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
5mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
40,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
Product Description
Low Power Consumption Rentel LED Display
Outdoor Stage LED display is specially designed for the outdoor HD shows; LED lamp adopts standard SMD technology with high brightness and good heat dissipation. Every pixel is composed by red, green, blue color, the colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs\VCD or DVD\live programs, and so on.
Outdoor display adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
Product feature:
The resolution that the display supports can be reached 1920X1080
Ultra high refresh frequency: Adopting the latest Smart-PWM technology and original brightness homogenization algorithm, which makes the LED display with ordinary general pure drive have ultra high refresh frequency (more than 4000Hz), eliminates the display's stroboscopic phenomenon, lets the shooting effect of the screen be irreproachable, and satisfies the demands of live broadcast.
Product Description
MYLED P5 outdoor Full Color Rental LED Display
Specifications
1. Outdoor LED Display
2. Higher refresh rate: Over 2000Hz/s, no scan line
3. High color quality
4. Excellent waterproof

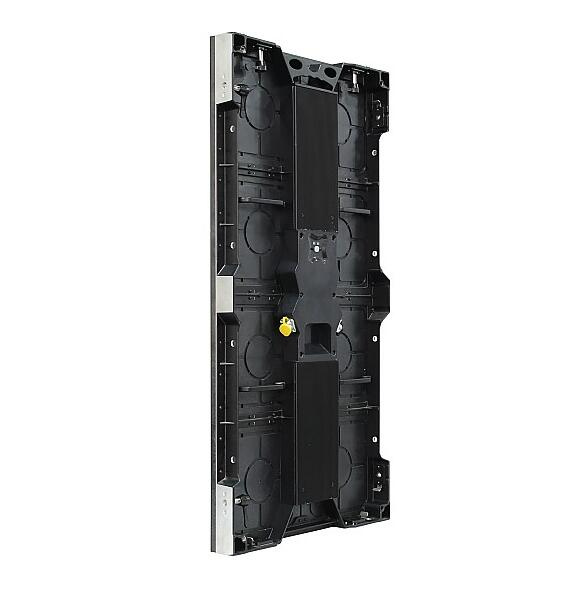

5. Outdoor Cast aluminium cabinet
6. Durable & stable LED display.
7. MBI5020, MBI5024, MBI5041, MBI5050 are optional
8. Waterproof Neutrik, Seatronic and Weipu connectors are optional, better connectivity performance.
Model | P4.81(P5) Die-casting LED display for rental outdoor |
| Pixel pitch | 4.81mm |
| Pixel density | 43,264 dots /sqm |
| Module size(W*H) | 250 mm(width)*250 mm(height) |
| Module pixels(W*H) | 52 dots *52 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/13 scan |
| LED lamp type | SMD2727 |
| Cabinet size(W*H*D) | 500mm*500mm or 500mm*1000mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 6000cd/sqm. |
| Power consumption(one cabinet) | Max: 800W / cabinet , Average: 200W / cabinet |
| Operating Voltage | AC110V±10% or 220V ±10%; 50---60HZ |
| Net weight | 9Kg / cabinet |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 47--63Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
|
