| Prod Model: |

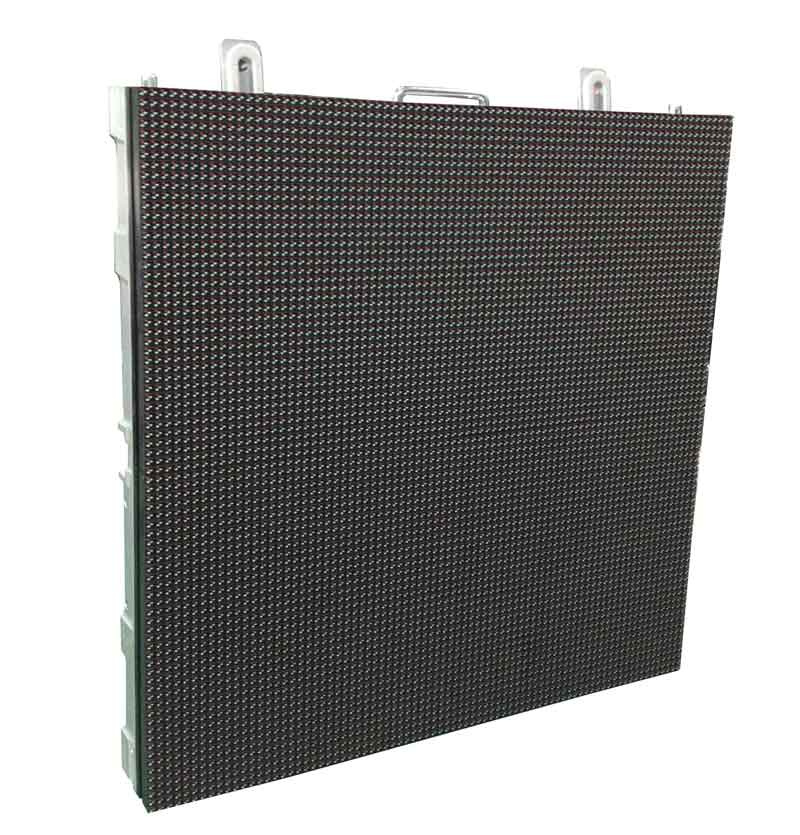

P8 outdoor die casting led display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Within 7 Days |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
ETL |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
600W / m² |
| Pixel Pitch: |
P8 |
| Application: |
Rental |
| Pixel Density: |
15625 Dots/Sqm |
Product Description
Products features:
Fully sealed design of waterproof and dustproof module;
Conduction cooling and mute of power;
Fast locks device--- Improving 80% of assembly speed;
Die-cast aluminum design, Lightweight,high intensity, high precision, unchangeable;
Support fixed and hanging installation method , Rapid to installation and disassemble,
Applicable to the stage rental.
Suitable Pixel pitch: P5.33, P5.926, P6.67, P8, P10;
Cabinet size: 640mm*640mm*65mm(100mm)
Weight: P5.926 12kg(up)/ 13.5kg(down);
Waterproof: IP65 front and rear;
Brightness: 6000cd/;
All general module 320*320mm for optional;
ModuleSpecification
Item |
SpecificationParameter |
Colortype |
Realfullcolor |
Modulesize |
320*320mm |
Pixelled |
DIP246 |
Resolutionrate |
40*40 |
Drivingway |
1/8 |
DrivingIC |
MBI5024 |
Workingvoltage |
DC5V |
Power |
50W |
Workingtemperature |
-30ºC- +50ºC |
ScreenSpecification
Item |
Specification |
Material |
Die casting Aluminum |
Color |
Silvergray |
Size |
640*640mm |
Resolution rate |
80*80 |
Module quantity |
2*2 |
Density |
15625dots/ |
Whitebalanceluminance |
6500-8000cd/ |
Color temperature |
6500 |
Horizontal view angel |
100 |
Vertical view angel |
120 |
Protection grade |
IP65 |
Non-Flatness |
<1mm |
Module interval |
<1mm |
Weight |
19kg with power supply |
Maximal power/ |
600W |
Frame frequency |
≥60Hz/s |
Refresh frequency |
400-1680Hz |
Graygrade |
1073741824 |
Luminance adjusted |
256gradebyauto-optic/color &8 grade byhand |
Input signal |
RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
Control system |
PCTVnon-lineareditingcard+DVIdisplaycard+ main |
MTBF |
>5000h |
Life-span |
>100000h |
Speckles rate |
<0.0002 |
