| Prod Model: |
P4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: |
Within 7 Days |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
ETL |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
4mm |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Pixel Density: |
62500 |
| System Operating Platform: |
W XP/ W7 /W8, |
Product Description
Major features
Based on the latest LED TV technology, Myled full-color LED TV combines amazing design, brightness, color and contrast for excellent viewing experience. Improved energy efficiency and a range of content access features deliver outstanding performance for customers
Realistic image
With striking style and quality, Myled LED TV delivers high definition image quality and all the benefits of LED technology. Rich and vivid HD images bring a new level of reality to the audience
More vibrant colors
Advanced picture quality guarantees that colors are more vibrant and contrast is more pronounced. Full color, high brightness and image clarity provides dramatically improved performance.
Outstanding experience
With a range of content access (HDMI, DVI, HD-SDI, SDI, YPbPr, VGA), Myled LED TV delivers outstanding performance for customers
High quality and power efficiency
With the reassurance of quality, overall energy consumption is also reduced.

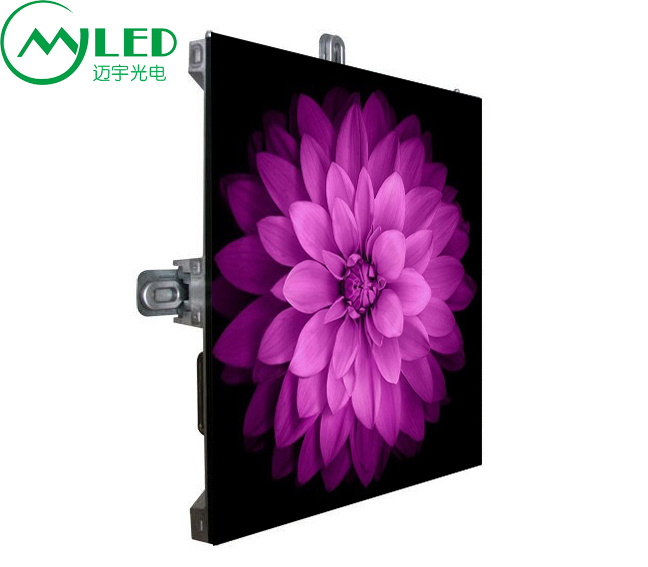

P4mm Indoor Full Color LED Display Screen:
Pixel configuration | SMD2020 1R1G1B 3 in 1 |
| LEDs configuration | Red:wave length: 625~630nm;300-400mcd
Green:wave length: 525~530nm;600-800mcd
Blue:wave length: 470~475nm;100-150mcd |
| Pixel pitch(mm) | 4 |
| Pixel density(dots/sqm) | 62500 |
| Calibrated brightness(cd/sqm,nit) | 1800 nits(adjustable) |
| Calibrated brightness proportion ratio | R:G:B = 3:6:1 |
| Contrast ratio | 4,500:1 |
| Brightness adjustment(dimming) | 100 grade auto/manual-adjustment |
| View angle(degree)(50% brightness) | V140/H140 |
| Color capability | 4.4 trillion |
| Refresh rate(Hz) | >800 Hz |
| Frame frequency(Hz) | >60 Hz |
| Interface port | DVI interface(DVI connector) |
| Input signal | VGA, Video, AVI, MOV, MPG, DAT, VOB etc. |
| LED Drive | Constant-current drive |
| Lifetime(hours)(50% brightness) | 100,000 hours |
| Signal transmission direction | Horizontal |
| Operating temperature(Celsius degree) | -30 ~ 65 |
| Storage temperature(Celsius degree) | -35 ~ 70 |
| Operation humidity(RH) | 0-95% |
| Operation humidity(RH) | 0-99% |
| Service | Front and back service optional |
| Control mode | Synchronous & asynchronous available |
| Communication options | Wire Ethernet, Fiber Ethernet,RF wireless,GPRS |
| Power | 120/240 VAC single phase(50-60Hz) |
| Maximum power consumption(W/sqm) | 900 |
| Average power consumption(W/sqm) | 360 |
| Screen operation mode(scan/static) | 1/16 |
| Module configuration(Pixels quantities of the module) | Length | 72 |
| Height | 72 |
| Module dimensions(mm) | Length | 288 |
| Height | 288 |
| Cabinet configuration | Length | 144 |
| Height | 144 |
| Cabinet dimensions(mm) | Length | 576 |
| Height | 576 |
| Width | 90(+module thickness) |
| Recommend Optimal Viewing Distance: Minimum & Maximum | Min | 2 |
| Max | 54 |
| Aspect Ratio(L:H) | 4:3 or 16:9 |
| Packaging configuration | 1~6 standard cabinets in a packing case |
| Packing material | Wooden case/carton/flight case(optional) |
| Packing weight(KG) | net | 35KG/m2 Aluminum |
| gross | 40KG/m2 |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
