| Prod Model: |
WK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Refrigerator Temperature Control |
| Outside Dimensions: |
14*7.7*4.5 |
| Temp .Difference: |
3~15 |
| Certification: |
RoHS |
| Type: |
Temperature Controller |
| Usage: |
Air Purifier |
| Control Type: |
Digital |
| Display Type: |
LED |
| Material: |
Aluminium |
| Brand: |
Stf |
Product Description

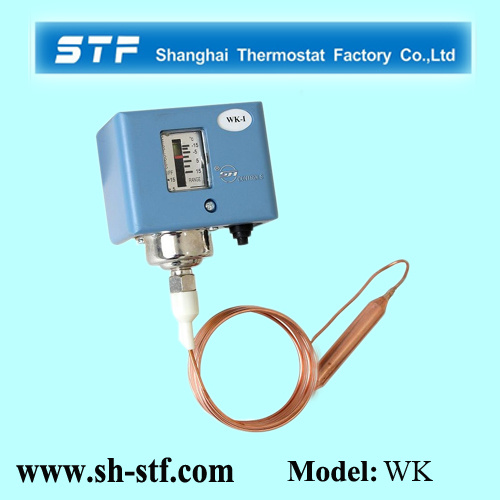

Refrigerator Temperature Control
General:
WK series temperature controller is a pressure responsed temperature controller. The products are widely used for the commercial refrigerator, refrigerated warehouse, refrigerated cabinet, icecream machines etc.
Installation:
1. The sensing bulb of the temperature controller should be installed at the temperature controlled point with good air ventilaton for correct temperature sense. Please noted that the sensing bulb should be installed on the air return area other than the registered area of the refrigerated warehouse.
2. The capillary tube between the sending bulb and the controller should not pass through the region with lower temperature than the controlled point, and should avoid to contact other pipes.
3. During installation, the bending radius of the capillary tube should not be less than 60mm. And the capillary tube should be clamped with straps every300mm.
4. By turning the button of main adjusting screw and differential adjusting screw(before turning the locating washer should be turned off), the temperature and differential temperature can be set according to the values indicated on the scale.
Model |
Adjusting range |
Temp .difference | Switch contact capacity | (cm)
Outside dimensions |
| Min. | Max. | Min. | Max. | Voltage | Current rating | L | W | H |
| WK-I | -15 | 15 | 3 | 15 | DC 24V | 250W | 14 | 7.7 | 4.5 |
| WK-II | -30 | 0 | AC 110V
AC 220V
AC 380V | 1000VA |
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
