| Prod Model: |
SM(E) ST(E) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Expansion Valve |
| Safe Working Pressure: |
3.0 MPa |
| Maximum Bulb Temperature: |
75c |
Product Description

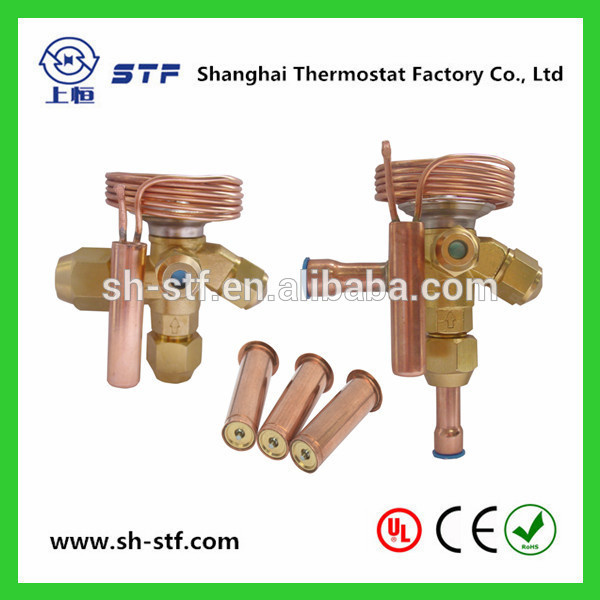

Refrigerator Expansion Valve
Product Photos:
General:
SM(E),ST(E)series thermostatic expansion valve is a new design. It is an essential part in the refrigeration and air-condition system. It is equipped between the liquid receiver and the evaporator,By its throttling,the liquid refrigerant under high temperature and pressure changes to the low pressure moist vapor ,in the meantime,during the evaporation of low pressure moist vapor in the refrigerating system,heat is absorbed from the surrounding and there temperature is lowered.
It supply many kinds of charge method and suits for air-condition,refrigerated cabinets freezer,dehumidifier etc.
Characteristics:
1.Constant superheat adjusting performance with MOP function
2.Rugged stainless steel diaphragm
3.Interchangeable cag
4.Inlet strainer assembly
5.For use on refrigerants R22,R134a,R407c and R404A/ R507
6.Safe working pressure of 3.0 Mpa
7.Maximum bulb temperature is 75º
Superheat adjusting:
After removal of the seal cap ,the adjusting stem can be turned.If it is turned clockwise,increase superheat,if it is turned counterclock wise,superheat will decrease.For each turn of the adjusting stem,the superheat will increase or decrease by about 4K.Set superheat
3.5K when exit factory.
Installation:
1.Valves may be installed in any position,but should be located as close as possible to the distributor or evapor inlet.
2.Be sure that the flow direction of the system refrigerant corresponds to the flow arrow stamped on the valve boby.
3.Fitting should ensure sensor bulb can sense output temperature of evaporation.External equalization tube connects top side of suction tube near bulb.
|
Orifice |
Model |
Refrigerant |
Connection size |
Capillary length |
Weight |
|
R22 |
R134a |
R407c |
R404A/R507 |
Inlet |
Outlet |
External equalizer |
|
Type |
(KW)
Nominal
capacity
(KW) |
Type |
(KW)
Nominal
capacity
(KW) |
Type |
(KW)
Nominal
capacity
(KW) |
Type |
(KW)
Nominal capacity
(KW) |
|
0 |
SM(E)
ST(E)
|
1/3H |
1.12 |
1/5M |
0.65 |
1/3N |
1.07 |
1/4S |
0.83 |
3/8
or
φ10
SAE
or
ODF |
1/2
or
φ12
SAE
or
ODF |
1/4
or
φ6
SAE
or
ODF |
1m |
0.5kg |
|
1 |
3/4H |
2.53 |
2/5M |
1.50 |
3/4N |
2.68 |
1/2S |
1.94 |
|
2 |
1H |
3.37 |
1/2M |
2.50 |
1N |
3.35 |
1S |
3.30 |
|
3 |
1.5H |
5.06 |
1-1/3M |
4.0 |
1.5N |
5.28 |
1-1/2S |
5.28 |
|
4 |
2.5H |
8.43 |
2M |
6.2 |
2.5N |
8.80 |
2-1/3S |
8.4 |
|
5 |
4H |
13.49 |
2.5M |
8.20 |
4N |
14.1 |
3S |
10.60 |
|
6 |
5H |
16.87 |
3M |
9.50 |
5N |
16.4 |
3-1/2S |
12.16 |
Shanghai Thermostat Factory Co., Ltd. is a professional manufacturer of refrigeration and air condition auto-control unit. We have more than 60 years history in this industry.
In 1985, STF cooperated with ALCO to produce T series expansion valves. We were the only Chinese company having the mixed infusing technology in expansion valve production. In 1993, Shanghai Johnson Controller Co., Ltd. Was established by us and Johnson to produce YK series controllers. In 1996, FDF-M diaphragm solenoid valve was certificated as National Grade New Product. As a high-tech enterprise, we get innovation fund from the government.
Our main products include solenoid valves, thermostatic expansion valves, sight glasses, filter dryers, pressure controls, pressure difference controls, temperature controls. We have gained approval for our quality control system in relation to international standard ISO9001: 2008. UL/cUL\CE & CQC approval can be supplied to order.
Products are widely used by Carrier, YORK, Trane, Dunhambush, McQuay, Mammoth, HANBELL, RefComp, Midea, Gree etc. And exported to America, Europe, Australia, Africa, Korea, Hong Kong, Philippine and Taiwan.
We stick to the development of specialization, give the best solution of localization and keep advanced in technology by continual innovation. We are always pursuing to be a leading enterprise in our area.
