| Prod Model: |
YK |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Refrigerator Pressure Control |
| Temperature Of Medium: |
- 20c~+120c |
| Ambient Temperature: |
- 20c~+70c |
| Suitable For: |
Hfc, Hcfc, Compressed Air , Water and Oil |
| Type: |
Electronic |
| Application: |
Industrial |
| Brand: |
Stf |
Product Description

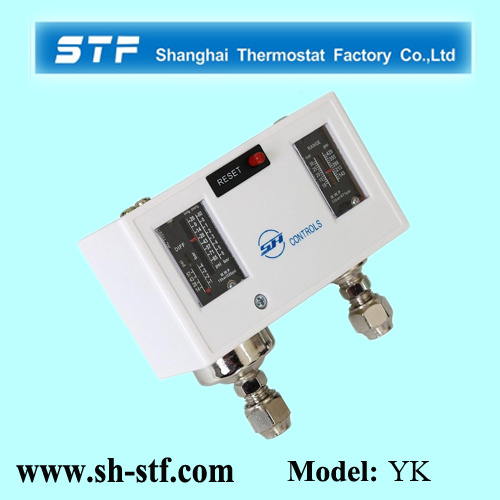

Refrigerator Pressure Control
General:
1. YK is used for pressure control or pressure protection. When the system reaches the set point, the switch turns on/off automatically.
2. Optional automatic reset, high pressure manual reset as well as low pressure manual reset.
3. Adjustable pressure and pressure difference setup with scale instrument.
4. Suitable for HFC, HCFC, compressed air, water and oil.
5. M12× 1.25 connection.
6. Temperature of medium: - 20º C~+120º C; Ambient temperature: - 20º C~+70º C.
Ordering Information:
1. Standard parts refer to connection size & minimum flow factory setting.
2. Flow rate listed in the technical data is reference for product selection only.
3. If you have special requirement, please contact STF.
| Model | Pressure setting range
MPa | Differential setting | Setting point | Contacts |
| Min.–Max. | Type |
| YK6 | -0.065 –0.6 | 0.06–0.4 | Auto reset | 0.2 –0.3 |
|
| YK10 | 0.1 –1 | 0.1–0.3 | 0.4 –0.6 |
| YK20 | 0.5 –2 | 0.2–0.5 | 1.2 –1.5 |
| YK30 | 0.5 –3 | 0.2–0.7 | 2.0 –2.5 |
| YK6S | -0.065 –0.6 | Act & self lock when pressure decreasing | Manual reset | 0.2 |
|
| YK10S | 0.1 –1 | 0.5 |
| YK20S | 0.5 –2 | 1.4 |
| YK30S | 0.5 –3 | 2.0 |
| YK130S | 0.8 - 3 | Act & self lock
when pressure increasing | Manual reset |
2 |
|
YK130
| 0.8 - 3 | about0.4 | Fixed | 1.6 – 2.0 |
|
