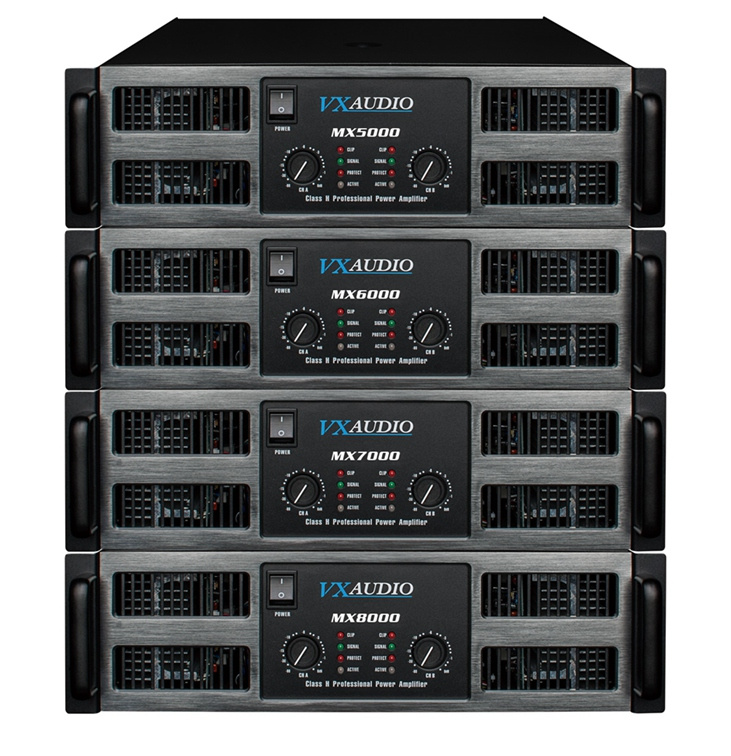

| Prod Model: |
MX6000 |
| Markets: |
North America,South America,Southeast Asia,Africa |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description
FEATURES
Can be switched between stereo and mono channel.
Powerful supply capacity of current load.
Classic well designed circuit. Quality of electronic components, working in H forms. make the products excellent.
Wide frequency response, low distortion so that the voices of more accurate and fidelity.
Multiple sound protection features such as over-current, over-voltage, over-temperature, overload, DC, and so on.
Efficient power management, make the machine more environmentally and safe.
Can choose longer version.
Built in high performance low pass filter.
- Can endure 8ohm, 4ohm and 2ohm loads
- Highly reliable and stable
| Model | MX6000 |
| Stereo Power 8Ω | 2*650W |
| Stereo Power 4Ω | 2*975W |
| Stereo Power 2Ω | 2*1300W |
| BTL 8Ω | 1950W |
| BTL 4Ω | 2600W |
| Frequency Response | 5--50K±0.5dB |
| THD+N | <0.05%@8Ω 1kHz |
| S/N Ratio | >102dB |
| Slew Ratio | 50V/u S |
| Damping Factor | >400 |
| Crosstalk | >65dB@8Ω 1kHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 1V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 3U |
| Gross Weight | 28KG |
| Dimensions | 655×585×200MM |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
