Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Commercial |
Product Description

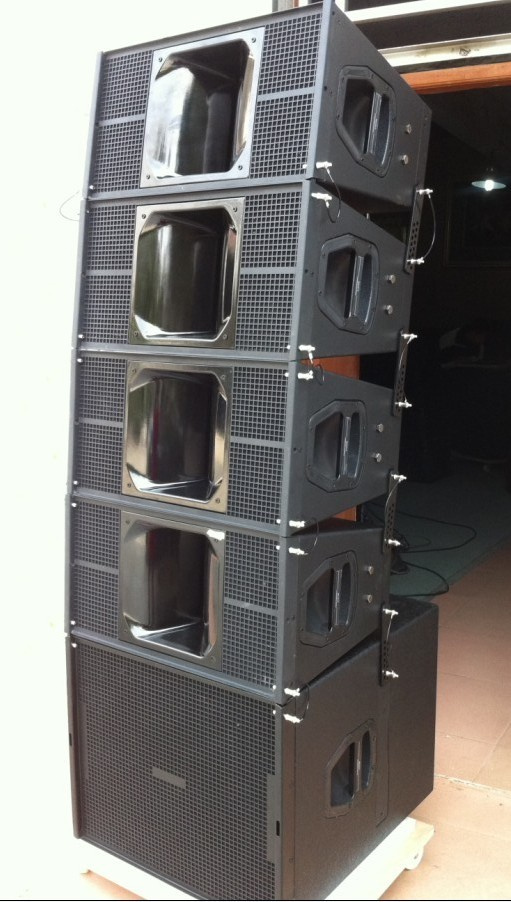

Q1 dual 10" indoor Line Array:
Frequency response (-3dB) 60Hz-19kHz
Components 2x10in, neodymium
1x3inch, neodymium
Nominal Impedance 8ohms
System sensitivity (1W@1m) 101dB SPL
Maximum SPL 135dB
Power handling 800W
Peak power 1600W
HxV 75° X150°
Dimensions (W x D x H) 583x310x425 mm
Connectors 2xSpeakon| connectors (NL 4)
Enclosure material 15mm plywood
Grille Black perforated steel
NG(Kg) 23kg
Q-sub:
Frequency response (-3dB) 40Hz-200Hz
Components 18" woofer
System sensitivity (1W@1m) 106dB SPL
Maximum SPL 133dB
Power handling 600W
Peak power 1200W
Nominal Impedance 8ohms
Connectors 2xSpeakon connectors (NL 4)
Enclosure 15mm plywood, compact reflected low frequency
Finish Textured black paint
Grille Black perforated steel
Dimensions (W x D x H) 583x486x668 mm
NG(Kg) 34kg
Frequency response (-3dB) |
60Hz-19KHz |
Components |
2x10in, neodymium
1x3inch, neodymium |
Nominal Impedance |
8ohms |
System sensitivity (1w@1m) |
101dB SPL |
Maximum SPL |
135dB |
Power handling |
800W |
Peak power |
1600W |
HxV |
75° x150° |
Dimensions (W x D x H) |
583x310x425 mm |
Connectors |
2xSpeakon| connectors (NL 4) |
Enclosure material |
15mm plywood |
Grille |
Black perforated steel |
NG(Kg) |
23kg |
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.
Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!
At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
