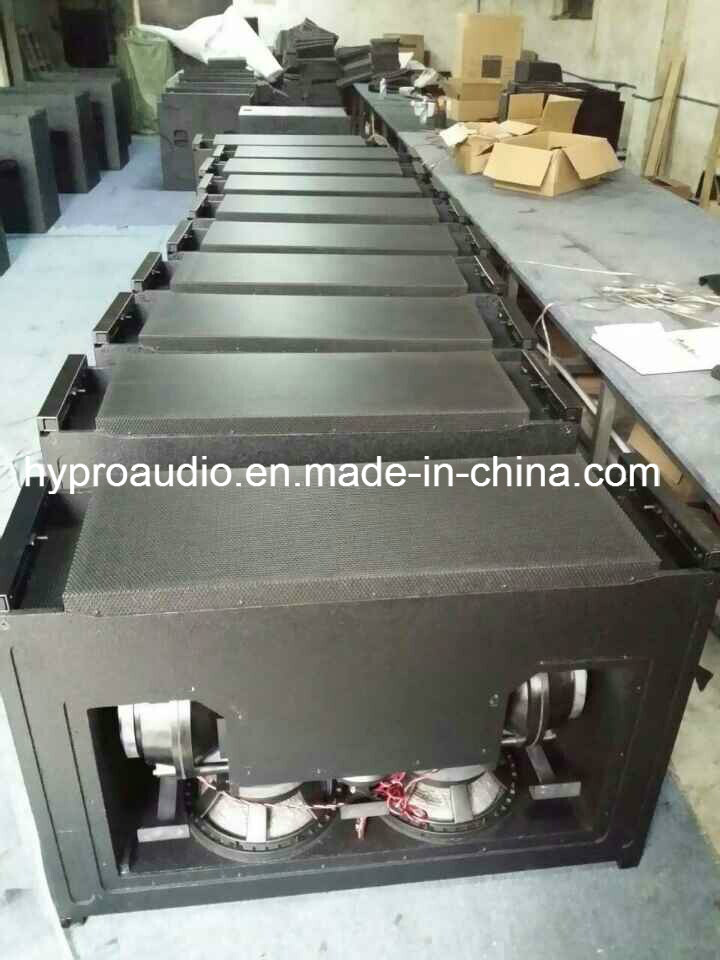

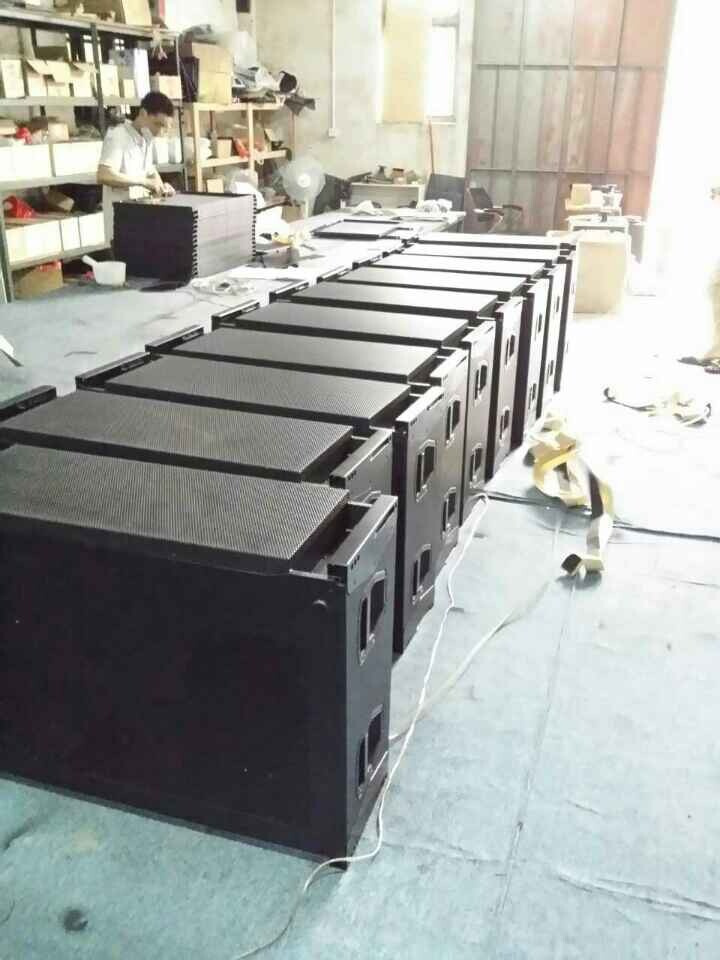

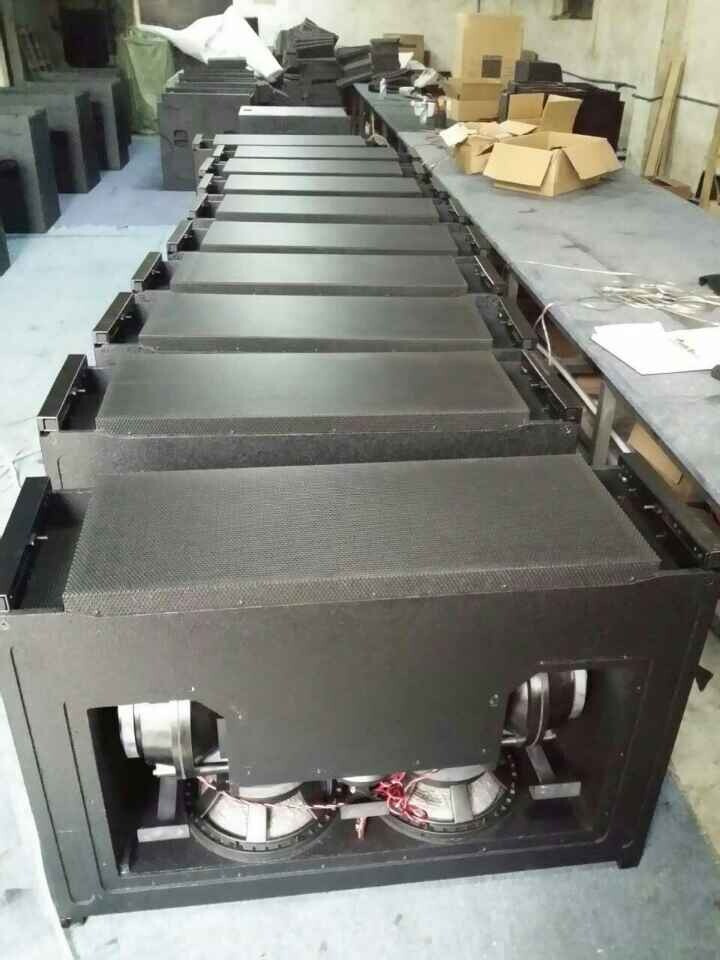

Kf760 Dual 12 Inch Line Array System, PRO Audio, Loudspeaker
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
4/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |
| Prod Model: |
KF760 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
12 Inch |
| Hf: |
125W*2 |
| Lf: |
500W*2 |
| Mf: |
400W*2 |
| Speaker System: |
Optional Combination |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| THD: |
0.005%-0.01% |
| Noise: |
≥105dB |
Product Description

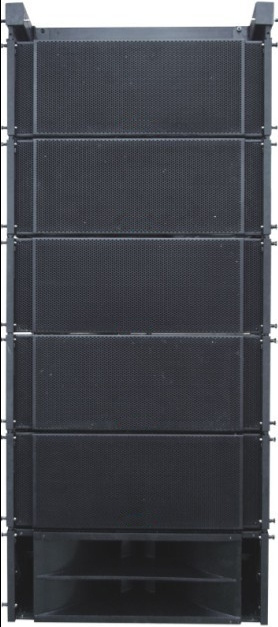

KF760 Dual 12" High Power water-proof Line Array System:
SPECIFICATION:Sensitivity(dBSPL 1W/1M):
LF:97 dB
HF:111dB
MF:108 dB
Impedance:LF1:8Ω LF2:8Ω/MF:8Ω/HF:8Ω
Frequency: LF:50Hz~500Hz/MF:500Hz~2.5KHz/HF:2.5KHz~19KHz
Average Dispersion80°*3°
DriversLF:2*12
HF:2*3"
MF:2*10"
Power rating:2000 W(RMS)/5000W(PGM)HF:125W*2
LF:500W*2
MF:400W*2
Enclosure25mm plywood
Dimensions( W*D*H)1145*800*425mm
Packing 1230*830*820mm
Weigh:142Kg
|
SPECIFICATION |
|
|
Sensitivity(dBSPL 1W/1M) |
LF:97 dB HF:111dB MF:108 dB |
|
Impedance: |
LF1:8Ω LF2:8Ω/MF:8Ω/HF:8Ω |
|
Frequency: |
LF:50Hz~500Hz/MF:500Hz~2.5KHz/HF:2.5KHz~19KHz |
|
Average Dispersion |
80°*3° |
|
Drivers |
LF:2*12 |
|
|
HF:2*3" |
|
|
MF:2*10" |
|
Power rating: |
2000 W(RMS)/5000W(PGM) |
|
HF: |
125W*2 |
|
LF: |
500W*2 |
|
MF: |
400W*2 |
|
Enclosure |
25mm plywood |
|
Dimensions( W*D*H) |
1145*800*425mm |
|
Packing |
1230*830*820mm |
|
Weigh: |
142Kg |
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.
Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!
At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
