| Prod Model: |
DSP0822 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channel: |
8/12/16/20/24CH |
| Warranty: |
Three Years |
| Certification: |
CE Proved |
| Application: |
Commercial |
| THD: |
<0.005% |
| Noise: |
<95dB |

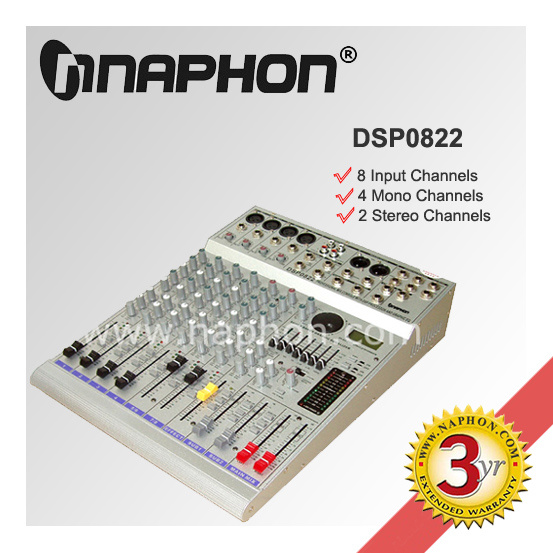

Product Description
Mixing console
*7 band stereo graphic EQ allow precise frequency correction of monitor or main mixer; Headphone/control room output and stereo tape outputs;
*Extremely rugged steel construction ensures long life even under most demanding conditions;
*Switchable +48V phantom power for condenser microphone;
*24-bit DSP, Multi-effect Processor, 48KHz Sampling Frequency, 32 Effect Modes Memory, LCD Display
Model |
DSP0822 |
DSP1222 |
DSP1622 |
DSP2022 |
DSP2422 |
|
Mono Input Channels |
Balance MIC or Line Input |
Stereo Input Channels |
Balance or Unbalance Stereo Line Input |
Frequency Response |
10Hz~30KHz +/-3db 20Hz~20KHz +/-0.5db |
MIC Sensitivity(22Hz-22KHz) |
-129.5db, 150 Ohm Source; -132db, Input Short Circuit |
Gain Adjustable Range |
+10db~+60db |
Line Input Range |
-40db~+10db |
SNR |
More than or equal to 113db |
THD |
Less than or equal to 0.01%(+4db, 1KHz) |
EQ |
HF:12KHz+/-15db MF:5KHz+/-15db LF:80Hz+/-15db |
Max Input |
+22db |
Max Output |
+22db Balance, +16db Unbalance |
Effector |
24bit DSP, Multi-effect Processor, 48KHz Sampling Frequency, 32 effect modes memory, LCD display |
Phantom Power |
48VDC |
Power Supply |
AC100~120V/200~240V 50/60Hz |
Dimensions |
43.00x44.50
x15.50CM |
54.00x44.50
x15.50CM |
64.50x44.50
x15.50CM |
75.50x44.50
x15.50CM |
87.50x44.50
x17.50CM |
95.00x44.50
x17.50CM |
Gross Weight |
10.50KGS |
12.00KGS |
13.50KGS |
15.50KGS |
17.50KGS |
19.50KGS |
NAPHON MUSIC, based in Shenzhen, is a company specialized in the design and production of quality professional audio equipments. Its package of products are widely used in music venues, theatres, houses of worship, sporting events and much more.
NAPHON MUSIC has a major commitment to produce the most accurate & reliable product available. It maintains an extensive research and development division which is constantly looking for ways to improve the performance, value and reliability of products, introduced the Surface Mounting Technology, proudly launched its new MC series of DSP Mixers and SA series of Amplifiers. With a stringent quality control in production, it can arrive at an ever higher standard of quality for full range of products. NAPHON MUSIC had got ISO9001: 2000 International Standard Approval and CE approval.
NAPHON MUSIC always focus on tomorrow, embracing severe construction standards and the on-going aim to provide the best sound and most outstanding customer service you've ever experienced.
