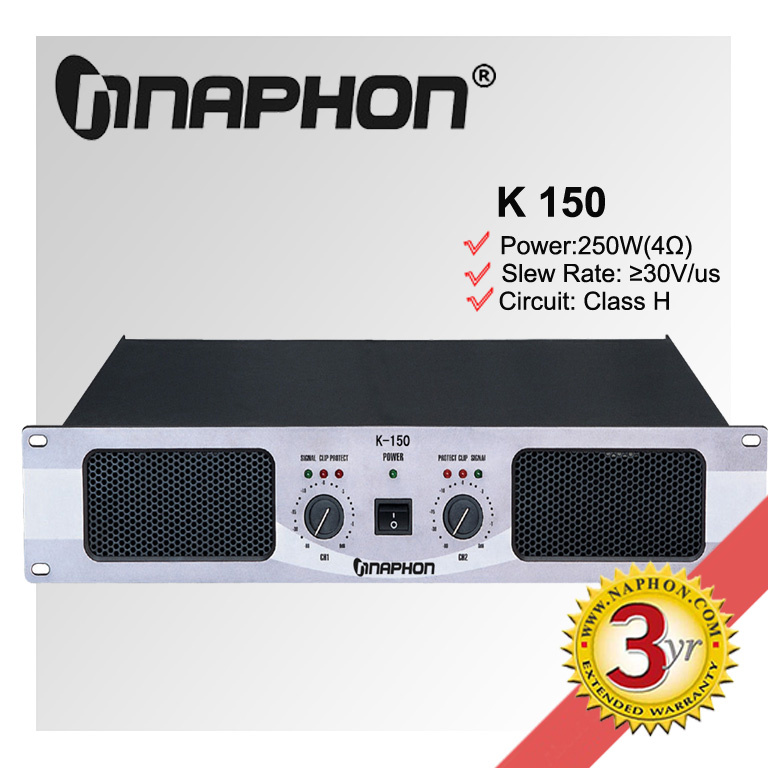

| Prod Model: |
K 150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Number: |
4 |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Sound Channel: |
2.0 |
| Voltage: |
110v-220v |
Product Description
Power amplifier
1. Working modes: Stereo/bridge/mono
2. Cooling Mode: 2-Speed Fan
3. Indicators: Power/Signal/Clip
4. Standard XLR and 1/4" TRS sockets
5. Load Protection: DC Safeguard/Output Overloading/Startup/Boot-strap Short Test
6. Adopt bulky power supply, effectively reduce the intermodulation distortion and noise
|
Model |
K-150 |
K-300 |
K-500 |
K-750 |
|
(8Ω)/Rated Power Output |
2x150W |
2x300W |
2x500W |
2x750W |
|
(4Ω)/Rated Power Output |
2x250W |
2x450W |
2x750W |
2x1200W |
|
(8Ω)/Bridged Output |
300W |
600W |
1000W |
1500W |
|
Output Circuit Type |
Class H |
|
Separation |
>70dB |
|
Frequency Response |
20Hz ~ 20KHz: +0.5dB at Rated Output |
|
Damping Factor |
300:1(@1KHz/8Ω) |
|
Slew Rate |
≥30V/us |
|
Input Sensitivity |
-4dB,0dB,+4dB |
|
Signal Noise Ratio |
>100dB |
|
Power Supply |
AC110V-240V 50~60Hz |
|
Net Weight(KGS) |
13.50 |
14.50 |
22.00 |
24.20 |
|
Dimension(MM) |
480x450x90 |
