| Prod Model: |
DSP 400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Output Number: |
4 |
| Function: |
Post Amplifier |
| Tube Type: |
Tube Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Sound Channel: |
2.0 |
| Voltage: |
100v~230v |
| Conductive Mode: |
Class H |
Product Description

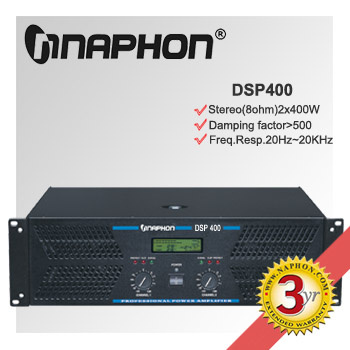

PRO power amplifier
DSP series amplifier uses particular MIRRORED FRONTED POWER SUPPLY BRIDGE to make the symmetrical circuit design.
With power automatical switch system, power parallel connection in low power can increase the output current. The circuit with shield cover adds shield ring to transformer for less noise.
The LCD panel has level, power supply and temperature for channels display. It can change speed of fans according to the channel temperature, ensuring the cooling and also protect the amplifier while over heating to abnormal power supply.
|
Model |
DSP400 |
DSP600 |
DSP800 |
DSP1000 |
DSP1200 |
DSP1400 |
|
Out Power(8Ω ) |
2x400W |
2x600W |
2x800W |
2x1000W |
2x1200W |
2x1400W |
|
Out Power(4Ω ) |
2x650W |
2x950W |
2x1300W |
2x1600W |
2x1800W |
2x2100W |
|
Out Power(2Ω ) |
2x950W |
2x1400W |
2x1900W |
2x2400W |
2x2700W |
2x3000W |
|
Bridge(8Ω ) |
1300W |
1900W |
2600W |
3200W |
3600W |
4200W |
|
Bridge(8Ω ) |
1900W |
2800W |
3800W |
4800W |
5400W |
6000W |
|
Input Impedance |
20KΩ |
|
Frequency Response |
20Hz ~ 20KHz |
|
T. H. D |
0.05% |
|
Slew Rate |
80V/usec |
|
Hum and Noise |
103dB |
|
Damp Modulus(8Ω ) |
> 500 |
|
Radiator |
High/Low Automatism Control |
|
Safeguard |
DC Safeguard/Out Overloading/Boot-strap Short Test |
|
Power Supply |
AC115V-240V 50~60Hz |
|
Net Weight(KGS) |
23.5 |
26.0 |
27.0 |
33.0 |
34.0 |
35.5 |
|
Dimension(MM) |
482× 453× 88.8 |
482× 468× 132 |
