| Prod Model: |
TJSUNSP 58-18-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Separate Type |
| Pressure: |
Pressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
Solar Keymark /SRCC/ Sabs |
Product Description
Solar Keymark SRCC SABS Approved.

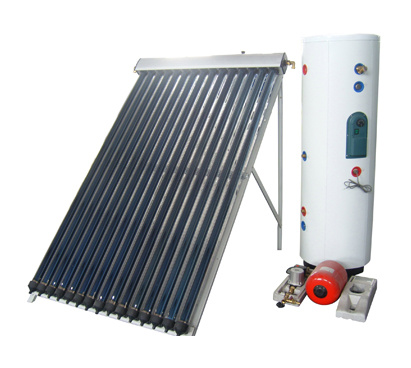

Solar water heaters, split pressure solar water heaters
1) The pipeline is made of red copper and conducted by heat transfer medium liquid. Water can't flow in the vacuum tubes and is operated when confined. The crust uses aluminum alloy mould material of high strength with airflow design. It is furnished in good style
2) Temperature preservation is equipped with standard electric water heater setting, automatic temperature control exchanger, with increased anode magnesium bar stick to prevent furring. It is the true two-in-one
3) The insulating layer uses polyurethane bulk bubble and has a good effect of temperature preservation
4) The product successfully carries out the installation of separation according to fabricating yard and is harmoniously blended with architecture
5) The equipments of separated solar water heater is composed by heat collector, storage tank, electric control device, hot water mix unit and fittings for circulation and installation
Advantages:
Use in any time: It adopts advanced design idea and integrates with high efficiency pre-heated patent technique, so it can warm the cold water rapidly when it flows through special pipe. It can overcome the demerit its of traditional SWH, such as slow heating, long waiting time.
More Capacity: We adopt special exchanging heat mode, it avoids mixed effect, so cold water can be heated at any moment.
High hydraulic pressure: The hydraulic pressure is same as tap water, it is very suitable for tired person.
Easy operation: It can supply water automatically, you can take it easy and enjoy good time.
Economical and Environment protecting: There is no pollution when it is working since it depends on sunshine, Green and economical
Fashionable: The appearance is fashionale and it can great integrate with your fitment.
| Solar Collector ( Heat pipe series) |
| Model | TJH-58/1800-15-C | TJH-58/1800-18-C | TJH-58/1800-20-C | TJH-58/1800-24-C | TJH-58/1800-30-C |
| Size(M) | 1967*1190*132 | 1967*1415*132 | 1967*1565*132 | 1967*1865*132 | 1967*2315*132 |
| Absorption area(M2) | 1.2 | 1.44 | 1.6 | 1.92 | 2 |
| Length of Tube | 1800mm |
| Outer Diameter of Tube | 58mm |
| Efficiency | 0.88 |
| Losses | 2.4 |
| Tube quantity | 15 | 18 | 20 | 24 | 30 |
| Manifold | casing material:Aluminum Alloy;thickness: 1.8mm;Insulating layer: rock wood or foam |
| Heat pipe | pure red copper TU1+water;transfer power:>=150W;Working pressure: 4Mpa;welding pressure: 4 Mpa |
| Heat header | 24mm |
| Dust Ring Gasket | Silicon Rubber |
| Vacuum Tube | Tri-elemant tube;High boron and silicon content 3.3;Structure:Gradual change SS-AL-Nx/Cu selective absorption coating;Vacuum Degree:P<=5*10-4;Service life:15years |
| Mounting Frame | Aluminum Alloy,thickness:2.0mm |
| Rack Insert | ABS |
| Dimension(CBM) | 0.28 | 0.32 | 0.35 | 0.39 | 0.53
|
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
