| Prod Model: |
JPS-YF-58-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
CCC |
Product Description

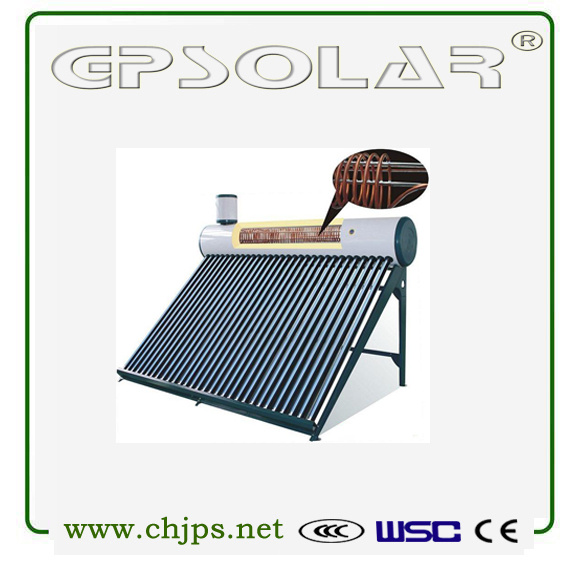

Solar Hot Water Systems
Using a Thermosyphon solar hot water heating systems is a perfect way to start saving on your domestic hot water heating bills. Our Thermosyphon heating systems offer a unique heat transfer system which enables you have instant hot water from your collector. During the day, the collector stores hot water in the storage tank located at the top of each collector. When hot water is demanded, the cold water inlet flows thought the heat exchanger (which is located inside of the storage tank) and proceeds to flow to the hot water demand
JPS ThermoSyphon Solar Hot Water Heaters are the perfect low-cost and highly efficient systems for using the power of the sun to heat your hot water. Each Evacuated Tube Solar Collectors (both a 20 and 30 tube configuration are available) and an outdoor rated storage tank that is mounted directly to the top of the solar collector and acts as both water storage and heater manifold.
Solar vacuum tube with heat pipe
1. Size: Φ 58X1, 800 mm
2. Quantity: 15 / 20 / 24 / 30 / 36 / 40 / 60 PCS
3. Temperature insulation layer; Using polyurethane bulk bubble and has a good effect of temperature preservation
4. Capacity; 150 / 200 / 300 / 500 L
5. Max. Pressure bearing: 0.6Mpa
6. Hail resistance: 25mm
Advantages:
1) Adopts the best conduction performance metal- heat pipe (copper).
2) Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction
3) No water inside the evacuated tubes, the solar water heater can still in service even with several tubes breakage
4) Can be used all year round in the cold climate
5) No maintenance
This type of solar water heater works with high pressure, so do the water it pressurized.
It uses the heat pipe to conduct the heat energy, it can work rapidly.
Because of no water in the vacuum tube, so there will not tube breakage in the winter.
Each vacuum tube can work alone, so it can still operate in the event of occasional tube breakage
Super-conduct copper heat-pipe in the vacuum tube
Vacuum tube operate without water
It can be connected with pressure tank
|
Modules |
JPS-YF-58 -200
20 Tubes |
JPS-YF-58 -300
30 Tubes |
Type
Certificate, performance test
Shape of absorber |
All Glass Evacuated Tube Collector with Heat-Pipe
pr EN 12975-2
Ref. No. KT02_03 I
cylindric |
Number of tubes
Active absorber area
Aperture area
Gross area
Length x width x height (mm)Liquid
contents |
20
2, 4 m²
1, 9 m²
2, 9 m²
1980x1450x165
approx. 60 Kg |
30
3, 6 m²
2, 8 m²
4.3 m²
1980x2150x165
approx. 90 Kg |
Glass material
Glass tube diameter (outer tube)
Glass tube diameter(inner tube)Wall thickness
Vacuum
Absorber material
Coating
Absorption coefficient
Emission coefficient
Tilt angle
Test pressure
Permissible operating pressure
Max. Idle temperature of module Max. idle temperature of tube |
high-grade boron silicate hard glass
58 mm
47 mm
1.5 mm
< 10 -5 mbar
glass
selective coatedALN
92%...96%
8%...12%
15 to 90°
10 bar
6 bar
200 ° C
250 ° C |
