| Prod Model: |
PR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Plate Pressure |
| Oil Pump: |
Viking |
| Filtration Precision: |
1 Micron |
| Working Pressure: |
0.4MPa |
| Voltage: |
Customerized |
| Folw Rate: |
10-300L/Min |
Product Description

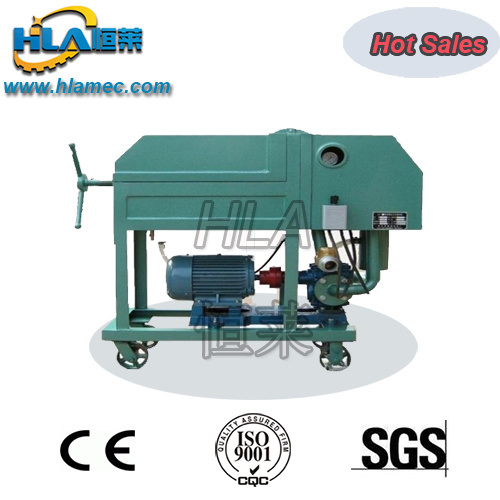

Portable Plate Press Oil Purifier
Application: PR-Series plate pressure oil purifier is designed for power plants, industrial and mining substations, lubricants warehouse, tractor station, petroleum, chemical, cement, metallurgy etc. It can purify transformer oil, turbine oil, hydraulic oils, gear oils, lubricating oil and remove water, mechanical impurities. PR plate pressure oil purifier is consisted of filter bed, plates, oil pump, motor and filtering papers. The filter bed and plates consist of a filter house, between the plates, the papers as filtering media. It also can purify fuel oil, cooking oil by using special materials and motor. PR-series oil purifier has a simple structure, convenient filter replacement, high filtration precision, easy operation, low cost.
Technical specification| Model | PR030 | PR050 | PR100 | PR125 | PR150 | PR200 | PR300 |
| Capacity( L/min) | 30 | 50 | 100 | 125 | 150 | 200 | 300 |
| Working pressure (Mpa) | 0~0.4 |
| Filtering space () | 0.48 | 0.6 | 1.57 | 1.88 | 2.35 | 3.14 | 4.08 |
| Plate size (mm) | 180×180 | 280×280 |
| Filter paper size (mm) | 180×180 | 280×280 |
| Filtering precision | ≤ 1 micron |
| Pressure type | Manual type |
| Filter ring quantity | 6 | 8 | 10 | 12 | 15 | 20 | 26 |
| Filter plate quantity | 7 | 9 | 11 | 13 | 16 | 21 | 27 |
| Motor | Power (KW) | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Speed (r/min) | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Inlet caliber | 1 | 1 1/4 | 2 1/2 |
| Outlet caliber | 3/4 | 1 1/4 | 2 1/2 |
Dimension
(mm) | L | 800 | 820 | 900 | 1150 | 1200 |
| W | 300 | 410 | 410 | 430 | 450 |
| H | 650 | 850 | 850 | 920 | 950 |
| Weight | 150 | 185 | 280 | 295 | 320 | 330 | 350 |
HLA MECHANICAL EQUIPMENT Co., Ltd is a professional machinery manufacturer from China. Since the foundation of HLA, we have specialized in providing innovative oil purification and air drying solutions & services for demanding applications on a global scale. The scope of our products and services covers a wide range, including oil purifier, air compressor and relative testing equipment. HLA product lines ensure efficient performance of equipments, reduce ecological disposal problems and help our customers save money.
Depending on experienced engineers, completely technical supports, advanced design, strict quality inspection line, fast and outstanding after-services. We have been in devoting our efforts to design and build the most effective, durable, and user-friendly equipments on the market today.
HLA are widely applied in projects of power substation, steel structure, metallurgy, automotive, railway, marine, mine, aviation, medicine, chemicals, petroleum etc. Our policies of performance and protection cut maintenance costs, extend equipment life, keep equipment working at peak efficiency, prevent down time and meet today's ecological requirements.
