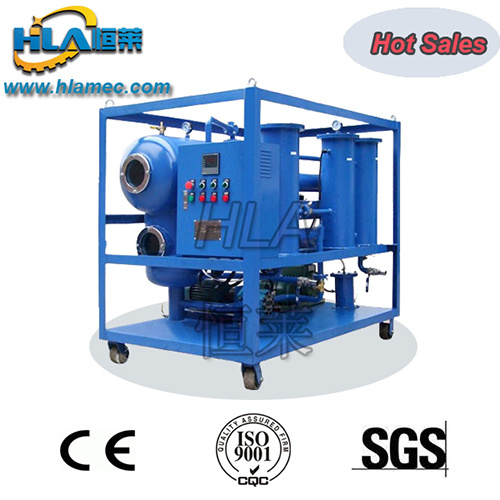

Double Stages Vacuum Insulating Oil Purifier
| Price: |
US $ 3000-10000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SVP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
High Vacuum Machine |
| Vacuum Pump: |
Leybold |
| Oil Pump: |
Viking |
| Electrics: |
Siemens |
| Voltage: |
Customerized |
| Folw Rate: |
10-300L/Min |
Product Description
High Vacuum Insulating Oil Purifier Machine
Application: Series SVP high vacuum insulating oil purifier is produced as high high-efficiency degasification, dehydration and filtering unit, it uses very strong vacuum source, this specially engineered design features maximize the water and gas extraction rates for basic requirement. SVP vacuum insulating oil purifier adopts high quality and imported components from European countries, which can ensure equipment works at peak efficiency for a long time. SVP insulating oil purifier is a good oil purification systems for improving efficient performance of insulating oil and reducing maintenance costs of electric equipment. Features:1.The interlocked protective system for keeping oil purifier working safely. 2. Advanced vacuum vapor and gas removing system.3. Strong vacuum source makes oil purifier working under high vacuum status.4. Fully automatic operation system guarantee workers safe.5.High quality parts extend running life of oil purifier.Technical specification| Model | SVP010 | SVP020 | SVP030 | SVP050 | SVP080 | SVP100 | SVP150 | SVP200 | SVP300 |
| Capacity(L/min) | 10 | 20 | 30 | 50 | 80 | 100 | 150 | 200 | 300 |
| Vacuum level | -0.06~-0.095 Mpa |
| Working pressure | ≤ 0.4 Mpa |
| Temperature range | 20 ~ 80ºC |
| Filtering precision | ≤1 micron |
| Continuous work | ≥200 hr |
| No failure running | ≥5000 hr |
| Power supply | 380V, 50HZ, 3PH ( or Customized ) |
| Working noise | 65 dB |
| Heating power (kw) | 15 | 15 | 24 | 30 | 48 | 60 | 90 | 108 | 130 |
| Total power (kw) | 16.8 | 16.8 | 26 | 33 | 52 | 66 | 100 | 120 | 148 |
| Inlet/outlet(mm) | 25 | 32 | 32 | 38 | 44 | 50 | 58 | 65 | 25 |
| Weight (kg) | 240 | 250 | 280 | 320 | 600 | 750 | 900 | 1050 | 1150 |
Dimension
(mm) | L | 1100 | 1130 | 1220 | 1300 | 1350 | 1420 | 1600 | 1650 | 1800 |
| W | 760 | 800 | 820 | 900 | 1000 | 1000 | 1200 | 1250 | 1350 |
| H | 1100 | 1220 | 1300 | 1310 | 1350 | 1750 | 1900 | 1920 | 2000 |
Display of Components:
HLA MECHANICAL EQUIPMENT Co., Ltd is a professional machinery manufacturer from China. Since the foundation of HLA, we have specialized in providing innovative oil purification and air drying solutions & services for demanding applications on a global scale. The scope of our products and services covers a wide range, including oil purifier, air compressor and relative testing equipment. HLA product lines ensure efficient performance of equipments, reduce ecological disposal problems and help our customers save money.
Depending on experienced engineers, completely technical supports, advanced design, strict quality inspection line, fast and outstanding after-services. We have been in devoting our efforts to design and build the most effective, durable, and user-friendly equipments on the market today.
HLA are widely applied in projects of power substation, steel structure, metallurgy, automotive, railway, marine, mine, aviation, medicine, chemicals, petroleum etc. Our policies of performance and protection cut maintenance costs, extend equipment life, keep equipment working at peak efficiency, prevent down time and meet today's ecological requirements.
