| Prod Model: |
DFR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Pressure: |
0.4MPa |
| Working Vacuum: |
0.5mbar |
| Filters Precision: |
1 Micron |
| Resistance Value: |
≥6 X 109 |
| Application: |
Fuel |
| Voltage: |
Customerized |
| Folw Rate: |
10-100 L/Min |
Product Description

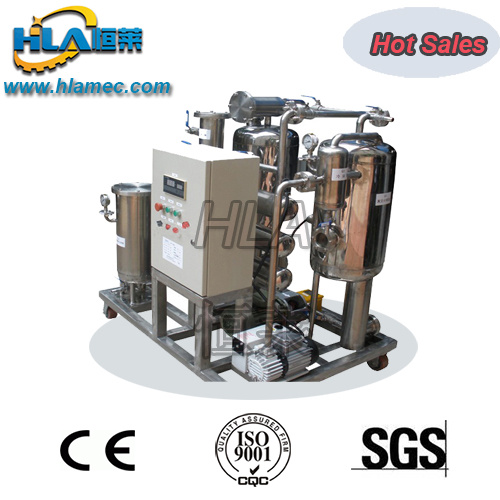

Phosphate Ester Fire-Resistant Oil Purifier
Application
DFR fire-resistant oil purifier is especially designed for phosphate ester fire-resistant oil with suitable material for vacuum dehydration, particles-removal and acid-reduction.
Features:
1. The tank and pipelines where fire-resistant oil going through are all made of stainless steel.
2. Dehydrate by vacuum distillation, water content less than 100ppm.
3. Oil-input and oil-output keep balance by photoelectric switch which is sensitive and accurate to
monitor oil level and stop inputting oil when level marked high and keep inputting oil when low.
4. We use filters which designed only for fire-resistant oil to remove particles. Cleanness up to NAS
grade 6.
5. There is system with absorbent to solve acid problem.
6. After treatment, the important index-resistivity up to ≥ 6 x 109.
6. Good appearance, compact structure and easy operation.
Technical Parameters:
| Model | Unit | DFR010 | DFR020 | DFR030 | DFR050 | DFR100 |
| Capacity | L/H | 600 | 1200 | 1800 | 3000 | 6000 |
| Working vacuum | MPa | -0.06~-0.095 |
| Working pressure | MPa | ≤0.3 |
| Demulsifying value | min | ≤15/min(GB/F7035)+ |
| Water content | ppm | ≤5 |
| Gas content | % | ≤0.1% |
| Acid value | mKOH/g | ≤0.01 |
| Resistance value | Ω | ≥6 x 109 Ω |
| Filtering accuracy | micron | ≤1 |
| Cleanness |
| ≥ NAS 6 grade |
| Power supply |
| 380V 50HZ(As per user's option) |
| Working noise | dB(A) | ≤65~80 |
| Temperature range | ºC | 40~60 |
| Heating power | Kw | 9 | 10 | 16 | 20 | 30 |
| Total power | Kw | 12 | 14 | 20 | 25 | 35 |
| Weight | Kg | 350 | 400 | 450 | 500 | 600 |
| Dimension | L | mm | 1200 | 1200 | 1200 | 1600 | 1700 |
| W | mm | 950 | 1000 | 1050 | 1200 | 1300 |
| H | mm | 1600 | 1650 | 1700 | 1800 | 1900 |

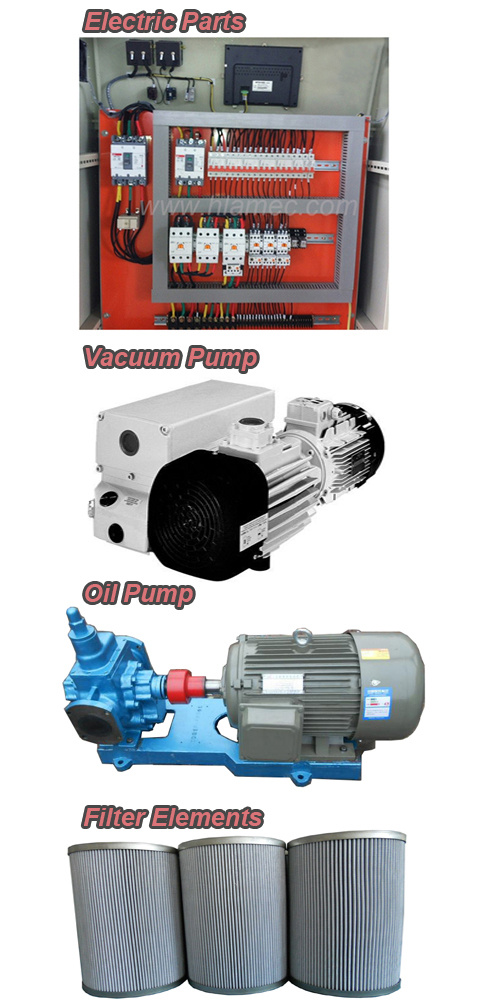

Components
HLA MECHANICAL EQUIPMENT Co., Ltd is a professional machinery manufacturer from China. Since the foundation of HLA, we have specialized in providing innovative oil purification and air drying solutions & services for demanding applications on a global scale. The scope of our products and services covers a wide range, including oil purifier, air compressor and relative testing equipment. HLA product lines ensure efficient performance of equipments, reduce ecological disposal problems and help our customers save money.
Depending on experienced engineers, completely technical supports, advanced design, strict quality inspection line, fast and outstanding after-services. We have been in devoting our efforts to design and build the most effective, durable, and user-friendly equipments on the market today.
HLA are widely applied in projects of power substation, steel structure, metallurgy, automotive, railway, marine, mine, aviation, medicine, chemicals, petroleum etc. Our policies of performance and protection cut maintenance costs, extend equipment life, keep equipment working at peak efficiency, prevent down time and meet today's ecological requirements.
