| Prod Model: |
AIO-1521 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Board: |
Intel Core I3 |
| Memory: |
Ddriii 2GB |
| Brightness: |
250CD/M2 |
| Resolution: |
1024X768 |
| Touch Panel: |
5-Wire Resistive |
| Type: |
Fixed |
| Touch Screen: |
Touch Screen |
| Printer: |
Thermal |
| Certification: |
FCC |
| System: |
Windows |
| CPU: |
Intel® Core I3-2100 Processor |
Product Description
Features:
With different design idea, the AIO-1521 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
Unique protective lock avoiding illegal copies of commercial information and better production of data.
Simple Slide in/out HDD replacement, make maintenance of the data much easier.
Stable touch panel performance, compact design looks professional and comfortable use.
Touch panel built-in, low power consumption to 30W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
l Built-in Wi-fi Optional.
LAN: RJ-45 *1, support kilomega input ;
Specification:

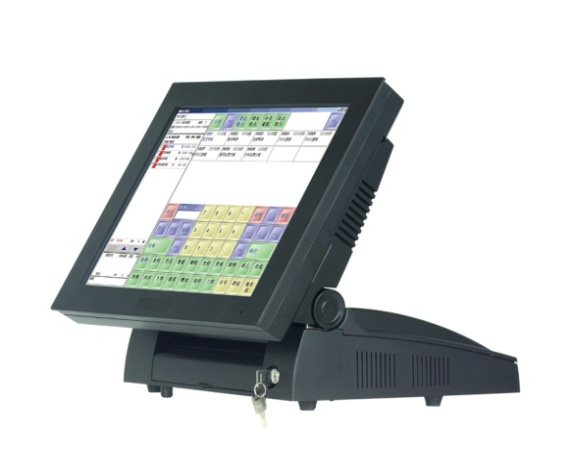

Model Name: AIO-1521
Display Type: 15" Touch screen POS
Colour: Black
Accessories options: ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8)
Motherboard part
Main board: Intel® Core I3
CPU: Intel® Core I3-2100 processor
Chipset
Memory: DDRIII 1066/1333*1 2GB Standard memory
Hard driver: SATA 2.5 inch hard driver 160G or higher
Display part
LCD panel size: 15 inch BRAND NEW TFT LCD
Brightness: 250cd /m2
Resolution: 1024x768(max)
Touch screen: 5-wire Resistive touch screen Taiwan Branded
Viewing Angle: L/R:140 U/D:130
Front I/O: USB(2.0) x2 power button x1 reset button x1
Rear I/O: PS2 mouse x1 PS2 keyboard x1
COM port x3
LTP printer x1
VGA out (15Pin D-sub) x1, duplicate and extend screen available
RJ-45 network x2 RTL8111C
USB(2.0) x4
Audio output x1
Microphone in x1
DC 12V output x1
OperationTemperature: 0 ºC to 40 ºC
StorageTemperature: -20 ºC to 60 ºC
Power Supply: 100V-250V /50-60HZ AC power source input huntkey brand
Power Supply: 100V-250V /50-60HZ AC power source input huntkey brand
Packing dimension: 470x410x310(mm) ;
Package: carton box with Foam packaging NW: 6.5KG GW:8.5KG
Loading quantity 20fcl:430PCS; 40fcl: 910PCS
Power Consumption 45W(max)
EMC/ Product Safety FCC Class A / CE Mark / LVD / CCC
OS support Windows XP Professional, Windows XP Embedded, WEPOS,Linux
Accessories
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1*CD disk for motherboard and touch function
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB : Keyboard
LPT : 25DB parallel printer
VGA : VGA output
COM1.2.3. Serial devices,Ex. Thermal printer, customer display,scanner
USB : USB Devices
LAN : RJ-45 connect 100MsLAN, Internet
LINE out : Audio output to other device
MIC IN : Speaker input
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
car parks, hotels, aviation, subway, station
