| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Usage: |
Hi-Fi |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Output Number: |
8 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
Product Description
PM series had some pursuits for faster of reaction speed higher of damping factor, and greater function, higher level of protect function,production technology of SMD excellent component. Amplifier of.
PM series also can endure 2Ω stereo load, bridge 4Ω load, suit for drive line array speaker system.
Multiple ound protection features such as over-current,over-voltage,over-temperature,overload,DC, and VHF and so on

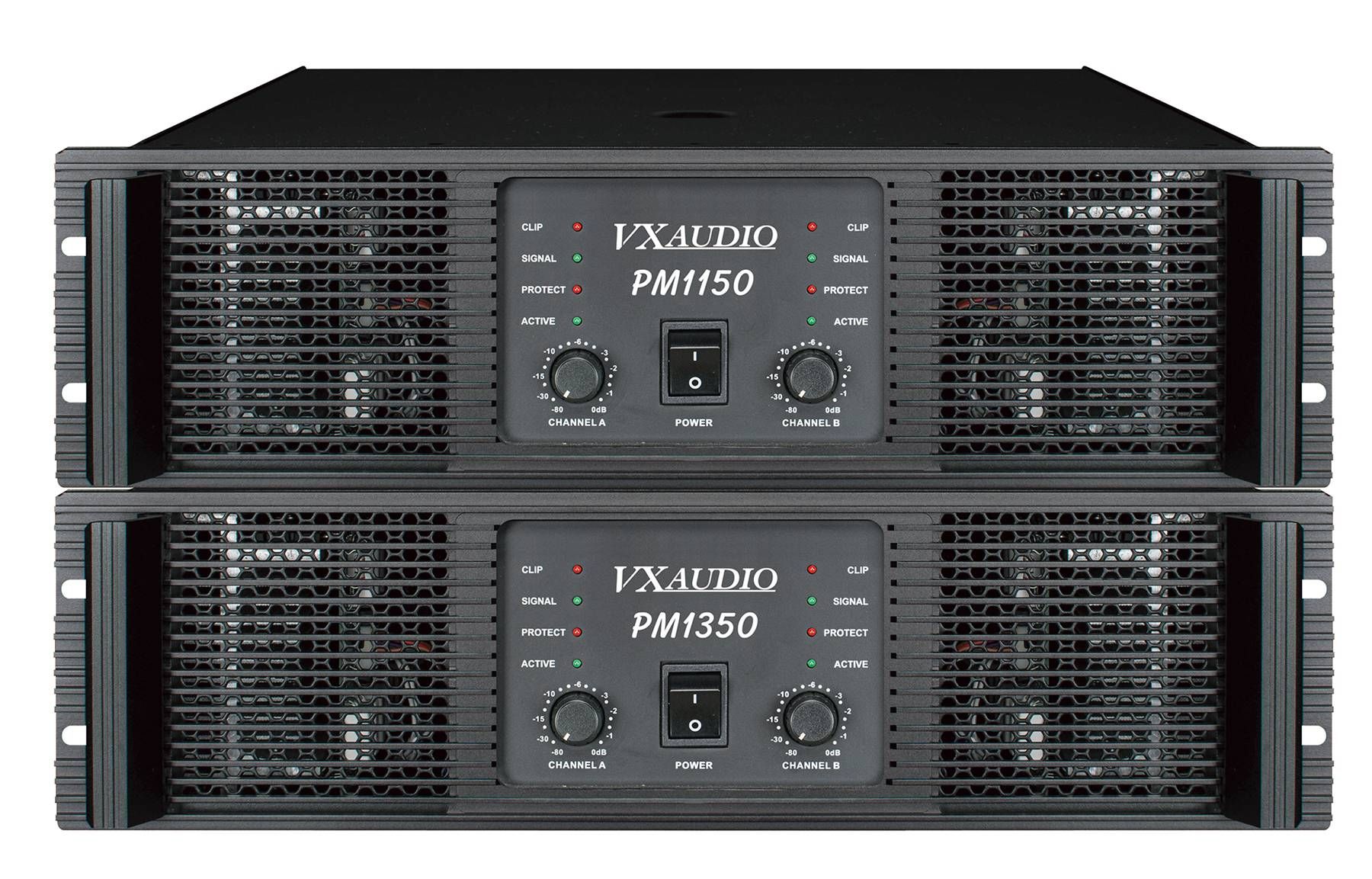

| Model | PM1150 |
| Output 8 Ohms 1KHz0.1% THD stereo Mode: | 2 x 1150W |
| Output 4 Ohms 1KHz0.1% THD stereo Mode: | 2 x 1800W |
| Output 2 Ohms 1KHz0.1% THD stereo Mode: | 2 x 2300W |
| Output 8 Ohms 1KHz0.1% THD Bridged Mode: | 2 x 3500W |
| Output 4 Ohms 1KHz0.1% THD Bridged Mode: | 2 x 4600W |
| Signal / noise: | 120dB |
| Slew Rate: | 80v/μ s |
| Damping factor: | 680: 1 |
| Fuse: | T25A |
| Power Supply: | 110V-240V as Per Customer Request |
| Frequency Response: | ± 0.1dB, 20Hz -20kHz |
| THD: | ≤ 0.01% rated power @ 8Ω 1kHz |
| IMD: | ≤ 0.01% @ 8Ω at rate output |
| Input Impedance: | 30k Ohm Balanced or15k Ohm Unbalanced |
| Crosstalk at Rated Output 8 Ohms 1kHz: | ≤ -70dB |
| Imput CMRR: | ≤ -75dB |
| Indicators: | Signal, Protect, Active, Clip |
| Net Weight: | 41kgs |
| Dimensions: (mm) | 655 x 585 x 200 |
