| Prod Model: |
SLX4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oscillation Mode: |
Pll Synthesized |
| Style: |
Handheld Microphone |
| Application: |
Amplify |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Pressure Type |
| Connector(',s): |
XLR Mini |
Product Description

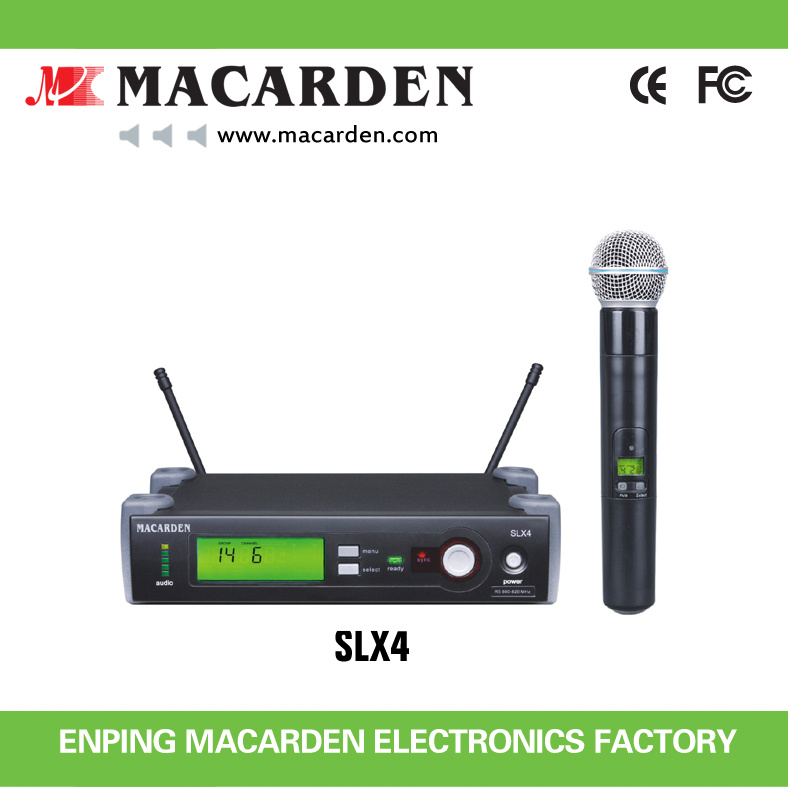

Professional UHF & PLL wireless microphone
We specialize in UHF wireless microphones and pro audio systems for almost 10 years. Guaranteed with the reliable quality, you will be delighted to find that our microphones and pro audio products are also with competitive prices. Welcome to enquiry and test our wireless microphones and professional audio systems.SLX4
PLL & UHF TRUE DIVERSITY SINGLE CHANNEL WIRELESS MICROPHONESYSTEM FEATURES
1. Adopt the PLL Synthesized control technic,
2.True diverysity single channel operation.
3. Transfer datas to transmitter by infrared.
4. Splendid LCD display, shows the RF level, AF level, channel and frequency
5. Using high gain antenna, the space availability is more than 100 meters at the clearing.TECHNIQUE SPECIFICATION

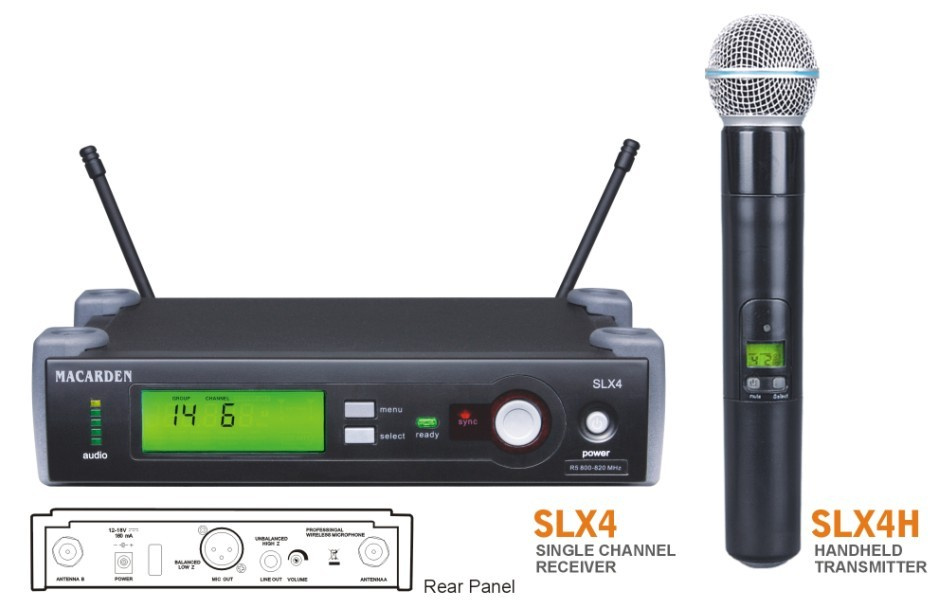

SLX4 RECEIVER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Frequency Stability: ±0.005%
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Frequency Response: 50Hz~18KHz±3dB
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:DC power supply
Working range: 100m
Dimensions:19.7X14.7X4.2 cm
SLX4H HANDHELD TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:Dynamic Microphone
Battery Requirement:2X1.5V AA alkaline

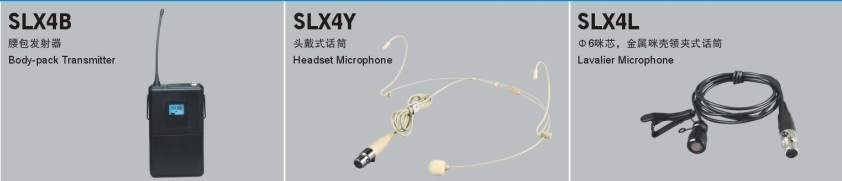

SLX4L BODYPACK TRANSMITTER SPECIFICATIONS
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge: Condenser Microphone
Battery Requirement:2X1.5V AA alkaline
