P6 Outdoor Full Color LED Display with Panel 576X576mm
| Price: |
US $ 300-450/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P6 outdoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
192X192mm |
| Cabinet Size: |
576X576mm |
| Protection Grade: |
IP65 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/Sq.M |
| Application: |
Advertising, Stage Performance, Rental |
Product Description
Full color P6 Outdoor LED Display Board with size 576x576mm for outdoor permanent install or rental,with high brightness and good waterproof, high resolution and good performanceProduct features:
1.Waterproof IP65,good for outdoor rental,small size is available
2. SMD led encapsulation confirm wide view angle and slim board
3.High brightness up to 6000nits,long view distance, Good uniformity

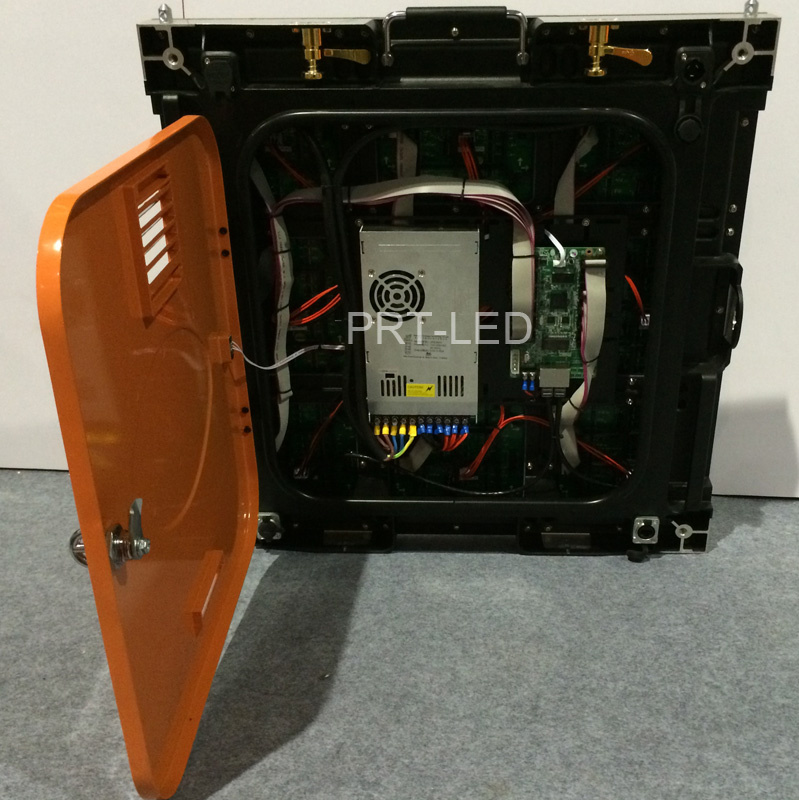

4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time
5.Die-casting cabinets confirm the strong configuration and lasting
6.low power consumption, No fans,no noise created, energy-saving and good environment protection
7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network

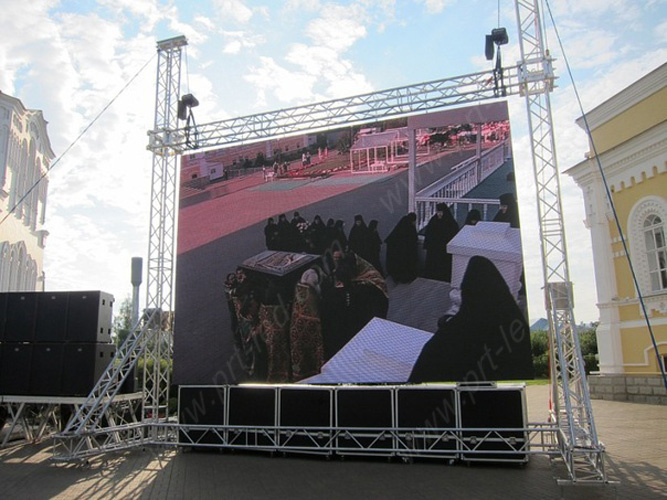

8.Widely used for commercial advertising,stage,show,event background screen,mobile led sign. traffic message board,sports stadium perimeter display etc.More pictures for reference:
| P6 Outdoor full Color LED Screen Specification |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 black |
| Size of module | 192mm x 192mm |
| Resolution of module | 32x32 |
| Size of cabinet | 576mm x 576mm x 65mm |
| Resolution of cabinet | 96x96 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 12KGS |
| Brightness | >6000cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Best viewing distance | 6-80M |
| Maximum power consumption | <1000W/sq.m |
| Average power consumption | <400W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >2000Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R&D, manufacturing LED display screen and some related LED lighting, owned several new-automatic production lines and advanced test equipments to control quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS.
Our main products include full color LED display, Outdoor LED display, Indoor LED display, Rental LED screen, Stage LED curtain screen, Sport stadium LED screen, Mobile LED screen etc. Also supply LED professional stage light, LED decoration lights, LED panel light, based on some customer' s request.
Our subcompany named PRT International Trade Co., Ltd, who in charge of exporting business, members with rich exporting experience over ten years, guarantee the products to be shipped out smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
You are welcome! Waiting for you!
