Hight Brightness Outdoor P6 LED Digital Display (RGB)
| Price: |
US $ 700-900/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
outdoor 6mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
192X192mm |
| Module Resolution: |
32X32dots |
| Brightness: |
>6000nits |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Certification: |
CCC |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777dots/Sq.M |
| Application: |
Advertising, Stage Performance, Rental |
Product Description
SMD3535 Outdoor P6 Full Color LED Digital Display with iron panels for permanet install or rental use1.SMD led encapsulation confirm wide view angle and high brightness,
2. High quality black body leds ensure high contrast, high definition, good performance

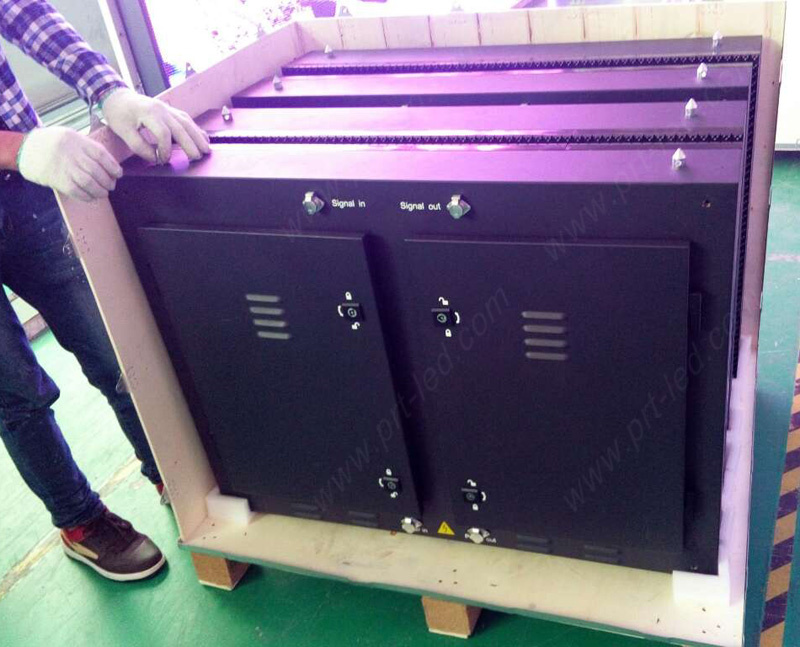

3.Steel iron cabinet with strong configuration, keep long life span and durable, and reasonable cost
4. Good waterproof craft finised, confirm IP65, suit to any weather outdoor
5. High pixel density, Long view distance, High definition, Good uniformity

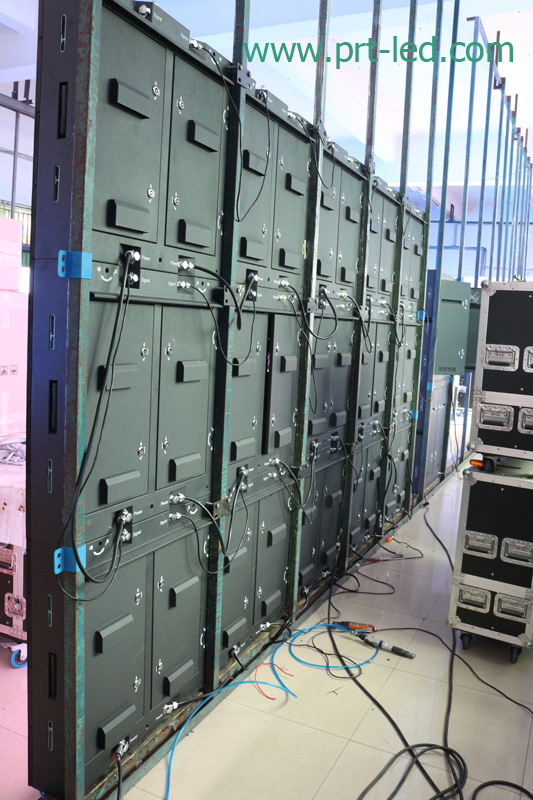

6.Cabinets with fast locks and aviation plugs,easy and quick to assemble without tools in short time
7. Low power consumption, low noise created, low transportation costs, and low installation costs.
8. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.7. Widely used for commercial advertising,stage background screen, mobile sign board,Traffic message board, rental display, sports stadium perimeter display etc.
| P6 SMD3535 Outdoor full Color LED Screen Specification |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 192mm x 192mm |
| Resolution of module | 32x32 |
| Size of cabinet | 960mm x 960mm x 65mm |
| Resolution of cabinet | 160x160 |
| Material of Cabinet | Aluminum/Iron |
| Weight of Cabinet | 450KGS |
| Brightness | >6000cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 5-60M |
| Maximum power consumption | 1000W/sq.m |
| Average power consumption | 500W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP65 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
