Full Color LED Curved Display 360 of Indoor P6
| Price: |
US $ 500/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P6-curved |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576X576mm |
| Cabinet Material: |
Aluminum Alloy |
| Module Size: |
192X96mm |
| Module Resolution: |
32X16dots |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
FCC |
| Pixel Density: |
27777 |
| System Operating Platform: |
Win XP,Win 2000,Win7/8 |
Product Description

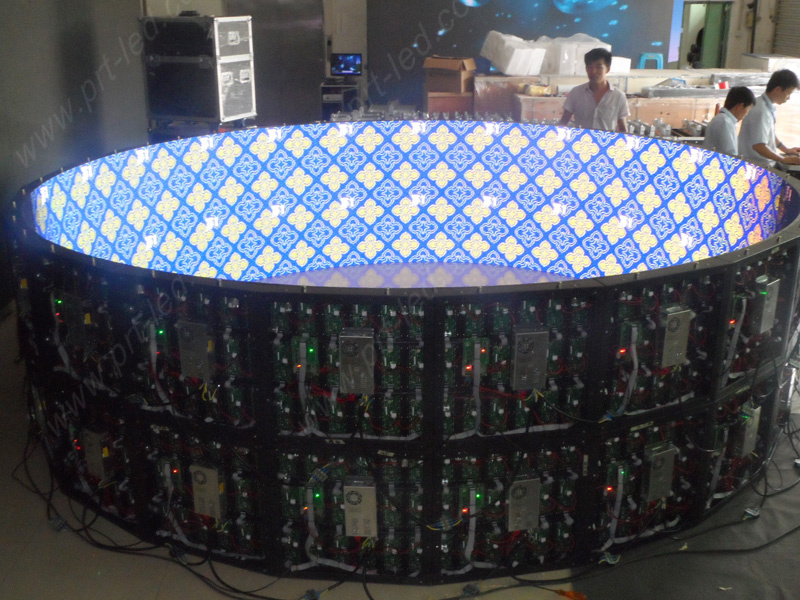

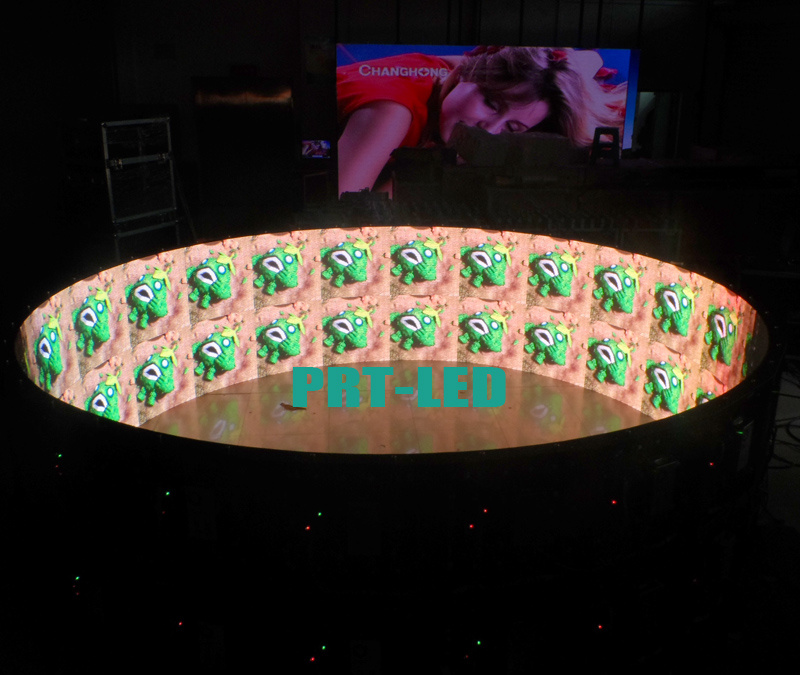

Curved display screen of P6 indoor made with curved panels to be combined as a 360 circle, abnormal shapes, can be customized according to different diameters of the project, with high brightness and good performance.Product Features:1. Made with aluminum alloy with very light weight, it is portable with hands
2. Slim and small cabinet size of 576× 576mm, the thickest is only 115mm
3. Seamless spliced between panels, good uniformity,perfect display effection
4. Without back doors for good heat dissipation and convenient to maintain
5. No funs, no noise,lower power consumption,energy-saving

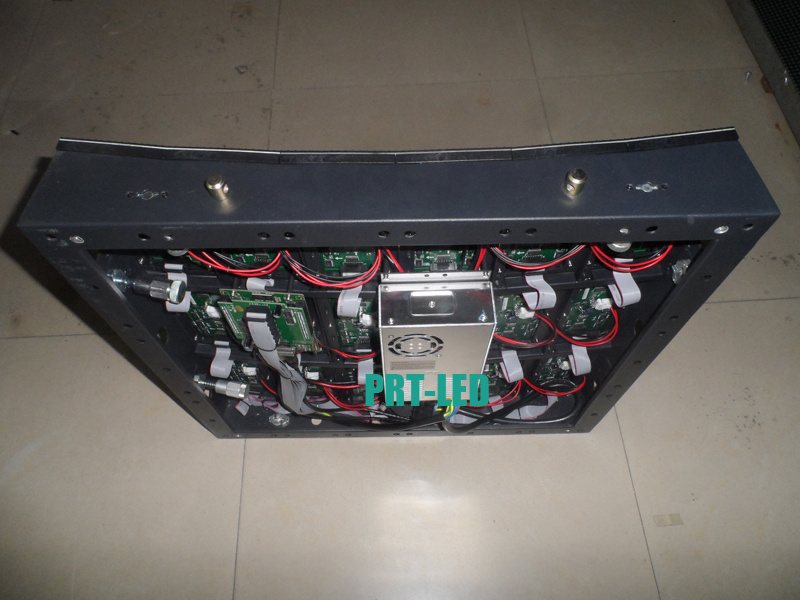

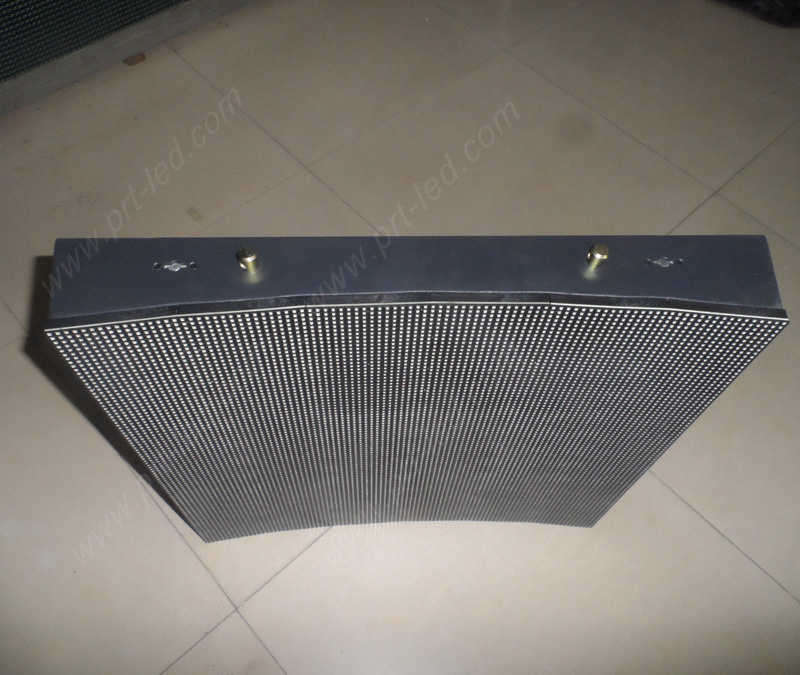

Curved cabinets for reference:
| P6 SMD3528 Indoor full Color LED Screen Specification |
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 192mm x 96 mm |
| Resolution of module | 32 x16 |
| Size of cabinet | 576mm x 576mm x115mm |
| Resolution of cabinet | 96x96 |
| Material of Cabinet | Aluminum |
| Weight of Cabinet | 12KGS |
| Brightness | >1500cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 160 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 5-60M |
| Maximum power consumption | 1000W/sq.m |
| Average power consumption | 560W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP43 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
