| Prod Model: |
P4.8-576 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
576X576mm |
| Cabinet Material: |
Die-Casting Aluminum |
| Module Size: |
288X288mm |
| Module Resolution: |
60X60dots |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
FCC |
| Pixel Pitch: |
4.8mm |
| Pixel Density: |
23042dots/Sq.M |
| System Operating Platform: |
Win XP,Win 2000,Win7/8 |
Product Description

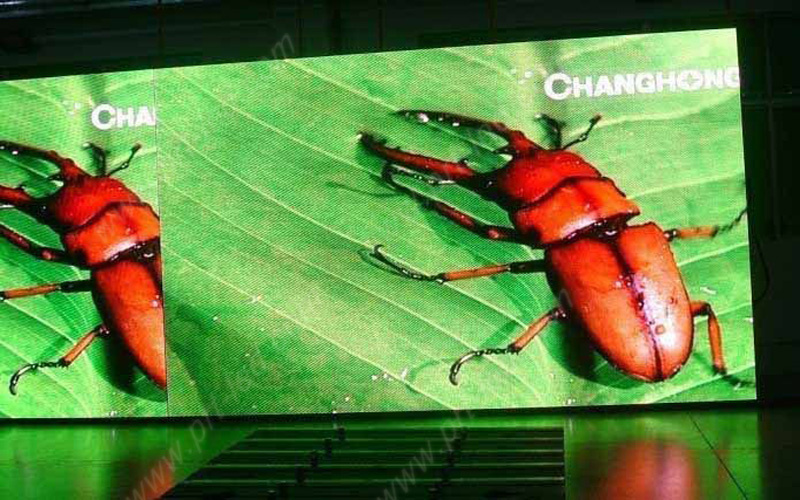

P4.8 Indoor HD Video LED Display with Die-Casting Panel
Product Description:
1. P4.8 Indoor HD Video LED Display/stage led display, Indoor led display screen
2. Made with die-casting aluminum,strong profiles with beautiful outlooking and durable
3. Slim and small cabinet size of 576× 576× 60mm,only 10.5kgs,light weight and portable
4. Flight case package,convenient to transport and collect,can move to anywhere
5. Rental design, easy to install and dismantle without any tools, save much time for installation and maintainance
6. Can be suspend or fixed installation, Seamless splicing,lower noise
7. High definition,High brightness, good performance
8. Wide view angle,good heat dissipation
9.Packed with flightcase each 6 or 8pcs cabinets/case,also can as customer's requirement
10. Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.
| P4.8 SMD3528 Indoor full Color LED Screen Specification |
| Pixel pitch | 4.8mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3528 |
| Size of module | 288mm x 288mm |
| Resolution of module | 60x60 |
| Size of cabinet | 576mm x 576mm x 65mm |
| Resolution of cabinet | 120x120 |
| Material of Cabinet | Die-casting Aluminum |
| Weight of Cabinet | 10.50KGS |
| Brightness | >1500cd/m2 |
| Density | 43042dots/m2 |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 3-50M |
| Maximum power consumption | 1200W/sq.m |
| Average power consumption | 640W/sq.m |
| Driving method | 1/15 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
| IP grade | IP31 |
| Life Span | 100,000 hours |
| Data transafer method | RJ45 |
| Pratical standard | CCC TUV-CE ETL etc. |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. |
| Systems operating platform | WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development |
