| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Pitch: |
10mm |
| LED Display Configuration: |
1r, 1g, 1b |
| LED Standard: |
SMD (3 for 1) |
| Module Demension: |
320*160 mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| IP Rating: |
IP43 |
| Certification: |
CCC |
Product Description
Specifications

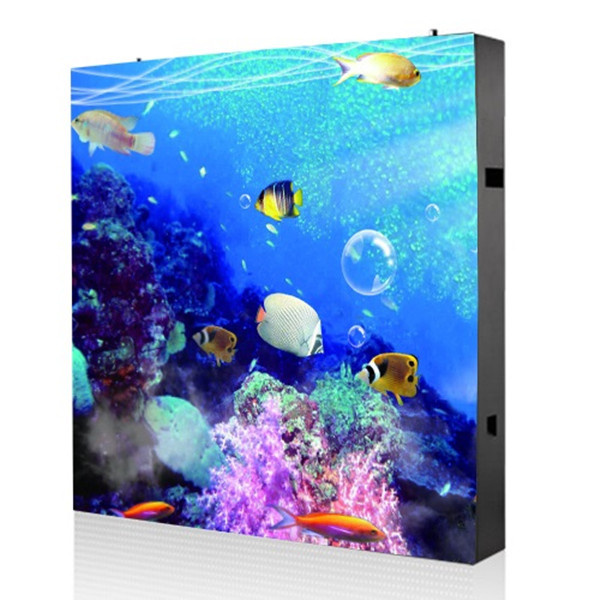

P10 mm indoor Full-color LED Display
1)Wide viewing angle
2)Save 30% power consumption
3)Good color uniformity
4)CE, FCC
P10mm indoor Full-color LED Display
1, Cabinet Size: 640mm*480mm
2, Weight: 50Kg/lbs
3, Pixels: 64*48dots
4, Material: Cold rolled armor plate
Features:
Thinner and Lighter Cabinet Design:
Make display assembly and dismantling more easily and quickly, also makes the delivery cost lower.
Diversified display modes: The products support multiple display modes.
LED display Specification:
| Model No: HSGD-I-F-P10 |
| Item | Parameter |
| Pitch Pixel | 10 MM |
| LED display Configuration | 1R, 1G, 1B |
| LED standard | SMD (3 for 1) |
| Module Demension | 320*160 MM |
| Moudule Resolution | 32*16 Pixel Dots |
| Cabinet Demension | 1280*960 MM |
| Cabinet Resolution | 128*96 Pixel Dots |
| Cabinet Weight | 40 KGS/SQ. M |
| Luminance | 1500 NIT |
| View Angle | 110(H), 50(V) Degree |
| PowerConsumption(Average) | 350 W/SQ. M |
| Best View Distance | 6~40 Meters |
| MTTF | 5, 000 Hours |
| Protection Level | Ip 31 |
| Pixel Density | 10, 000 Dots/SQ. M |
| Drive Mode | 1/8 duty, constant current |
