| Prod Model: |
fox-2.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
2500CD/M2 |
| Pixel Configuration: |
1r1g1b |
| Best Viewing Distance: |
More Than 2m |
| Price And Advantage: |
Factory Price and LED Panel Manufacturer |
| Warranty Time: |
7years |
| Programmable Card: |
3G/SD/U Disk/GPRS/GSM Wireless Control System |
| Input Signal: |
HDTV CATV NTSC PAL S-Video VGA VCD DVD |
| Life Span: |
More Than 100000hours |
| Interface: |
Network/Erial Port/50 Chip/Parallel RS 232/Solar P |
| Diode Model: |
Silan/Nichia/CREE/Epistar/Opto |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
ETL |
| Pixel Density: |
62500 |
Product Description

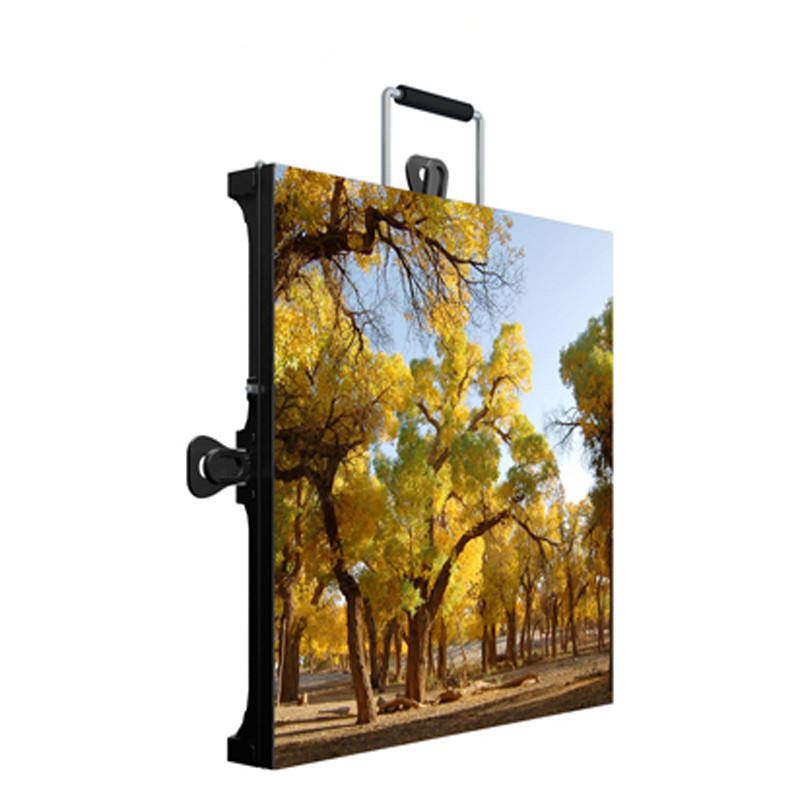

Indoor P7.62 full color advertising SMD LED display details
1. Multi-application Commercial advertisement; Exchange; Shopping malls; Bank; School
2. It is the best seller products, we can provide a competitive price
3. The best tube chip we just used, the CREE, Opto, Silan, etc. To ensure The quality we have promised to our customs.
4. A good service; 5years gurantee, A free technology support by phone or e-mail.
* Products function introduction: 1) High intensity and can be adjusted, so can meet the request of the customers according the application environment. 2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light 3) To pictures and character, have clear, exquisite and real display effect 4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion 5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair. * Products Advantages: 1) Price Advantage: We have the best competitive price at the market
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps 3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability. 4) Service advantage: Better service at same situation, better cooperation at same service!
* Products list and application area: 1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display 2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment,
Application of LED display:
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shoping malls
Postal officees, schools, monitoring, restaurants, entertainment, enterprises etc...
Trade Terms:
1. Payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2. Production lead time for 100~500PCS: 10days, 500~1000PCS: 15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PC
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
| Description | Technical parameter |
| Unit module | Module size | 128*128mm |
| Pixel pitch | 4mm |
| Pixel density | 62500dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | 2121 SMD 3 in 1 |
| Pixel resolution | W: 128dots*H: 128dots |
| Cabinet | Dimension | 768mm*768mm*150mm |
| Quantities of module | 32pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 40kg |
| Best viewing angle | 2-100m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-300W |
| Max. Power consumption | ≤ 320W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/16scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 300Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 2200cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player |
Our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remand our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materials only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consultation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consultation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
