| Prod Model: |
FOX-P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160*160mm |
| Warranty Time: |
3-5 Years |
| Production Time: |
5-12 Working Days |
| LED Lamp: |
Epistar ,Nichia ,CREE |
| IP Grade: |
IP 65 |
| Screen Normal Size: |
4*3m, 5*3m, 6*4m ,7*5m etc |
| Installation Environment: |
on The Wall / with Support |
| Material: |
Anti-Cold ,Anti-Hot |
| Cabinet Size: |
800*800mm, 960*960mm |
| Viewing Distance: |
8-250m |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Average Power Consumption: |
1100 W/M2 |
Product Description

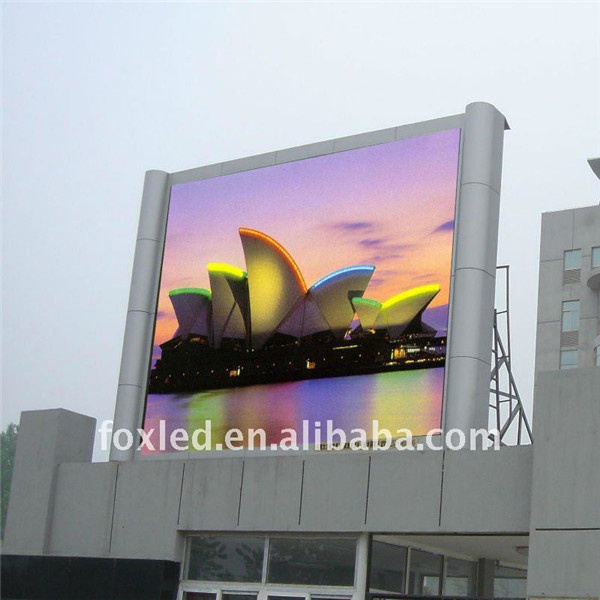

High brightness P10 outdoor advertising LED Billboard
------------------------------------------------------------------------------
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously or offline does asynchronously
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.
(10)Can be connected with PC and the website, and also can be controlled remotely via wireless controller
Number | Item | P10 |
| 1 | Pixel pitch | 10mm |
| 2 | Size of modual | 160mm X 160 mm |
| 3 | Resolution of modual | 16 X 16 |
| 4 | Density of pixel | 10000dots/m2 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 10-120m |
| 11 | Horizontal viewing angle | 120° |
| 12 | Maximum power consumption | ≤ 1500w/m 2 |
| 13 | Brightness | ≥ 8000cd /m 2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/4scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | ≥ 300Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP67(adjustable) |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |
| 26 | Computer operation system | Win XP/Vista/ Win 2000/WIN7 |
| 27 | Video signal | RF, S-Video, RGB, RGBHV, YUV, YC. ect |
Trade Terms
Payment terms: |
-Sample Charge: T/T or Western Union
-35% deposit before production, 65% balance before shipping
-Paypal; Western Union |
Shipping: |
-Delivery within 10-15 working days upon receiving deposit payment |
After-Sales-Service: |
-Lifetime with professional engineer support.
-Within 1 year, supply spare parts for free if the machine has quality
problem |
Our Services
1. Guarantee
(1) We guarantee all our displays, modules, parts for two full year. During this time, we will replace or remend our goods for free if there is something wrong with them.
(2) We will provide maintenance for a lifetime and charge for the raw materils only.
2. Technology Training
(1) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(2) We will send our engineers to your country by negotiation.
3. Maintenance and Consulation
(1) We provide full maintenance for a lifetime and charge for the raw materials only.
(2) We also provide lifetime consulation by E-mail, call, MSN or other ways for free.
4. Documents and Certification
(1) We provide the operation manual, software, test report and so on.
(2) We can also provide all kinds of certification such as CE, UL and so on.
5. CAD Drawing and Fixing
(1) We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
(2) We will send our engineers to your place if we are expected after our negotiation.
6. Additional service
(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
Company Information
WWW.DOXGOLDEN.COM
FOXGOLDEN GROUP LTD (www.foxgolden.com)is a professional high quality LED display Manufacturer. We are speicficated in LED Display field for 11 years, and have already being the 7 years' Alibaba Golden Supplier. Since 2004, we have been dedicating to the aim that producing high quality products, and now FOXGOLDEN has been well integrated in terms of R&D, produce, project, capital and marketing.
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
