| Prod Model: |

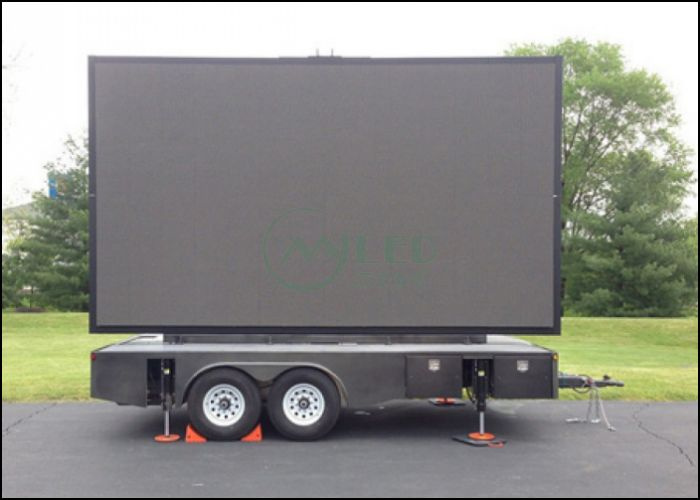

P10-Truck |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pantallas Gigantes LED: |
Video Pantallas LED Outdoor |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
ETL |
| IP Rating: |
Indoor |
| Pixel Pitch: |
4mm |
| Pixel Density: |
62500 |
Product Description
Somos una empresa dinámica: Además de ofrecerte el producto, lo instalamos y nos encargamos de hacer tu proyecto realidad conforme a tus necesidades. Para ello, contamos con profesionales con más de una década de experiencia en el sector.
Nuestro compromiso es proporcionar un producto que mantenga las cualidades más demandadas, buscando en todo momento la mejor relación calidad-precio. Además, somos los únicos que contamos con un banco de pruebas y un servicio de mantenimiento entre otras ofertas.
Myled representa el presente y el futuro de la venta de pantallas. Contamos con la ilusión de dar a nuestros clientes unos productos con los que queden plenamente satisfechos.
Main Parameter |
Category |
Parameter |
Pixel Pitch |
10mm |
Optimum Viewing Distance |
10-25m |
Density of Pixel |
10000pixels/ |
Brightness |
≥5000nite |
≥6500nite |
Module Resolution |
32*32 |
LED Encapsulation |
DIP346 1R1G1B |
SMD5050 1R1G1B |
Driving Method |
Real 4 Scan |
Real 2 Scan |
Optimum Viewing Angle |
H: 110°V:50° |
H: 120°V:100° |
Module Size |
320*320*28.4(mm) |
160*160*22.5(mm) |
Module Power |
50w |
70w |
Module Weight |
1200g |
1100g |
Cabinet Size |
960*960*178.4(mm) |
960*960*173(mm) |
Cabinet Resolution |
96*96 |
Cabinet Power |
1125w |
1100w |
Cabinet Weight |
55kg |
49kg |
IP Rating |
Front/Rear:IP65/IP43 |
Refresh Rate |
1000-4000Hz( Different according to the different Driving IC ) |
Luminance Consumption |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25ºC. |
MTBF |
>5000hours |
Defective Dot Rate |
<0.0001 |
Life Span |
>100000hours |
Working Voltage |
110-240 AC±10% 50-60Hz |
Working Temperature/Humidity |
-30ºC- +50ºC/10-90%RH |
Storage Temperature/Humidity |
-40ºC- +60ºC/10- 90%RH |
Input Signal |
RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc |
Connector |
CAT5 Cable(Length≤1430m),Optical link(Length≤20km,Optional) |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. |

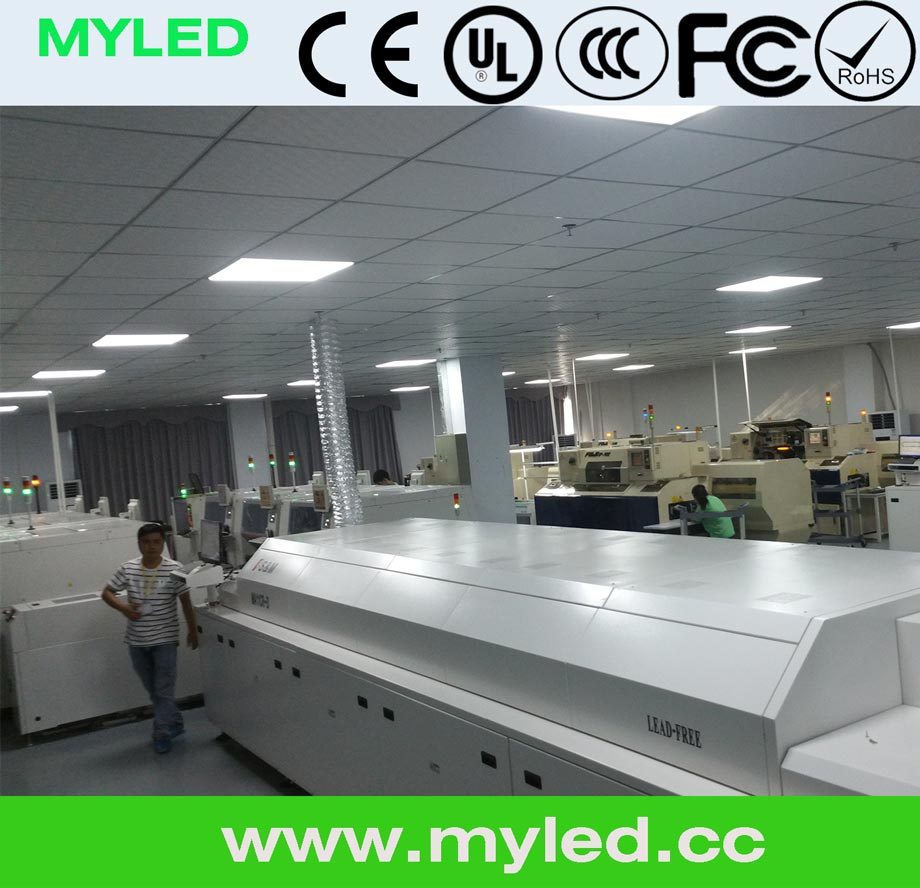

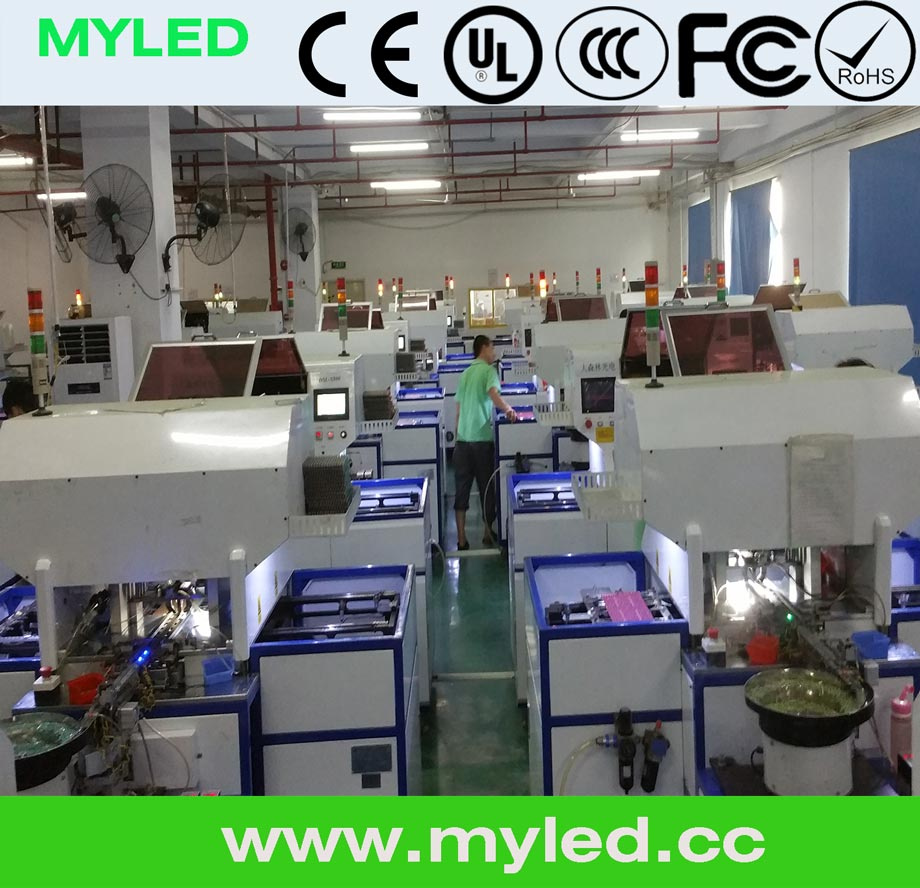

Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
