| Prod Model: |
OD-8"+12''-88: 88-Green |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Letter Height: |
10'' |
| LEDs: |
19 |
| Module Size: |
150*260mm |
| Screen Size: |
950*330*120mm |
| Package Size: |
1050*430*220mm |
| N/W(Kg): |
11.2/9.8 |
| Brightness(Mcd): |
8000 |
| Watts: |
48W |
| Color: |
Green |
| IP Rating: |
IP65 |
| Certification: |
CE |
| Tube Chip Color: |
Red |
| Pixel Configuration: |
Red |
| Display Function: |
Outdoor Time LED Display |
| Display Type: |
Outdoor Time LED Display |
| Application: |
Outdoor Time LED Display |
Product Description

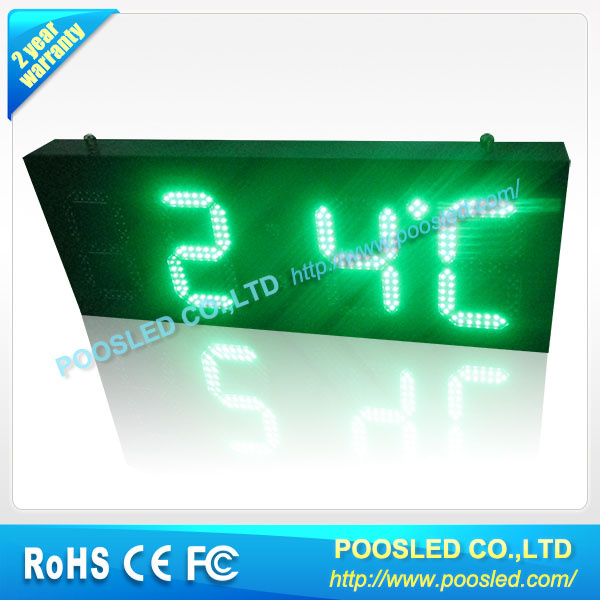

outdoor time and temperature led display
Profile:
Poosled Indoor and Outdoor led time temperature sign are ideal for attracting potential customers' attention to your business, while providing beneficial information to the community. Competitive price to give you outstanding value, while minimize your maintenance and energy costs.
The led time temperature sign has the following technical features:
Control system: Poosled Time and Temperature system
Indoor or outdoor brightness available.
Display format: 88:88 or 88:88:88 or customized
Time display: Year(Y), Date (D),Time (T)
Temperature display: Celsius (C), Fahrenheit (F)
Set the time for turn ON/OFF display freely
Set brightness on/off/level freely
Different sizes and colors are available that fit your flexible needs and wants.
A finished cabinet makes installation trouble-free with no additional fabrication needed.
Customized face designs.
High intensity LEDs allow for us to manufacture a more efficient display.
Automatic nighttime dimming capability with built-in light sensor
GPS module for time adjusting (optional)
led time temperature sign Typical Applications:
Transportation message: Airport, Train Station, Port, Express Way, Street
Public message:
Hospital, School, Park, Market, Store, Hotel, Restaurant, Gas station, etc.
Bulletin board: Factory, Bank, Post offices, Court, Customs, Government, etc.
Equipment status display
Advertising & entertainment
Item | Technical Parameters |
| Color | Red, amber, green, blue or white |
| Digit height | 4'',6", 8", 10", 12", 16", 24",32'',36", 40", 48", 60",64'', 72" etc. |
| Digit design | 4'',6", 8",10'', 12",15'',18",20'',22'',24'' standard digit; |
| Brightness control | Auto-dimming by sensor |
| Display Dimming | Over 16 levels of automatic intensity adjustment |
| Viewing Angle | 60~120° |
| Service Access | Front or rear access |
| Master/Slave | Single/Double/Three sides |
| Casing Material | Aluminium Frame , Iron Cabinet |
| Waterproof Level | IP53(Indoor use) |
| IP65(outdoor use) |
| Temperature sensor | Our standard product is defaulted with economical temperature sensor; |
| All-weather temperature sensor is available for more exact request. |
| LED Driving mode | Static constant current |
| Power Input | 110/220VAC , 60Hz/50Hz |
| PC Communication | RS232 |
| LAN(TCP/IP) |
| Communication Distance | Max.15meters for RS232, 1200meters for RS422 |
| Remote control type | RF remote control (Standard) |
| (RF wireless remote control with communication range of 100m.) |
| Lifetime of LEDs | > 100,000 Hours |
| Installation method | Hanging, mounting or per custom design |
| Working Temperature | Outdoor: -40°C to +50°C; Humidity: 10%-80%RH |
