| Prod Model: |
20''-888 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Letter Height: |
20'' |
| LEDs: |
62 |
| Brightness(Mcd): |
8000 |
| Module Size: |
300*508mm |
| Screen Size: |
800*1300*150mm |
| Package Size: |
850*1350*200mm |
| Nw(Kg): |
55 |
| Gw(Kg): |
58 |
| Color: |
Red |
| Watts: |
142W |
| IP Rating: |
IP54 |
| Scanning Mode: |
Static Scan |
| Display Type: |
Segment LED Display |
| Certification: |
CCC |
| Tube Chip Color: |
Red |
| Display Function: |
LED Gas Price Display |
| Average Power Consumption: |
142W |
Product Description
led display seven segment \ outdoor seven segment led display \ seven segment

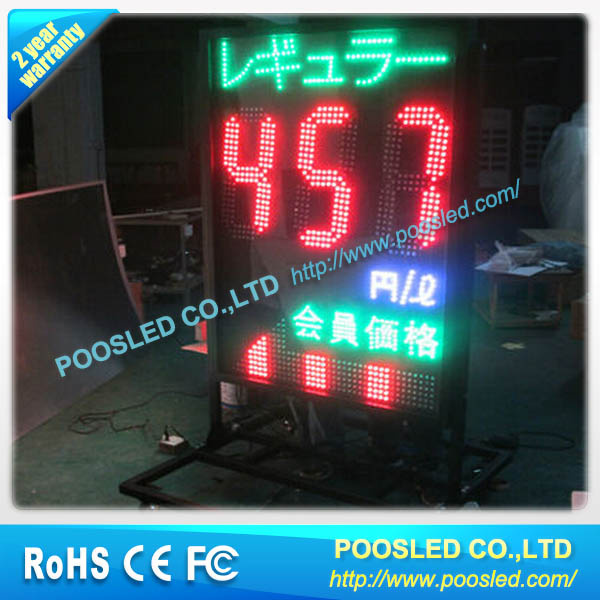

20''-888
In today's ever shifting economy where gasoline prices seem to flutuate more often than the temperature outside, having a dependable, easy to change LED price display has become the ideal advertising solution for many areas of business. POOSLED can offer you a reasonable&LED affordable digit solution at the right time. Extremely visible from far distance. POOSLED gas price signs also features an improved controller design, making it easier for employees in convenience store to change the sign's price.
TECHNICAL FEATURES
1. Control system: POOSLED Gas price control system--RF Remote control/ RS232/485/ TCP/IP, making price changes quickly and easily.
2. Outdoor or Semi-outdoor brightness available.
3. Display format: 8.88, 8.888, 8.888, 8.889/10, 88.88, 88.888 etc.
4. Special slim gas price design for your special structure request.
5. Different sizes and colors are available that fit your flexible needs and wants.
6. A finished cabinet makes installation trouble-free with no additional fabrication needed.
7. Customized face designs.
8. Status LEDs placed on the driver for easier troubleshooting.
9. Gives customers the flexibility of advertising many fuel prices.
10. High intensity LEDs allow for us to manufacture a more efficient display.
11. Power supply are CHENGLIAN with CE certification and MEANWELL with UL certification.
| 20''-888 |
|
| 1 | Sign's name | 20''-888 |
| 2 | Item classification | led chips(12mil SANAN) |
| 3 | Color: | Green |
| 4 | Digit Height: | 20'' |
| 5 | Digit Design: | 7 segments modules are sealed with glue,reach IP67 waterproof grade, with dust shade that make leds work normally all the time. |
| 6 | Brightness: | GREEN:8000mcd; |
| 7 | Display Dimming: | Over 8 levels of automatic intensity adjustment |
| 8 | Viewing Angle: | Horizontal:60°-120°,Vertical: 60°-120° or customized |
| 9 | Master/slave: | Single sided or double sided, master/slaves available |
| 10 | Led Driving Mode: | Constant current |
| 11 | PC Communication: | RS232/485;LAN(TCP/IP) |
| 12 | Communication Distance: | Max.15 meters for RS232, 1200 meters for RS485 |
| 13 | Remote Control Type: | RF remote control with communication range of 300ft=100M |
| 14 | Continuous Working Time: | Unlimited |
| 15 | Lifetime of Leds: | >100,000 hours |
| 16 | Installation Method: | Hanging,mounting or per custom design |
| 17 | Working Temperature: | -30°C~75°C |
| 18 | Display Format: | 888 |
| 19 | Working temperature | storage:-40~+75°C |
| 20 | Power Input: | 110/220V AC,50-60HZ |
| 21 | Supply Voltage(DC) | 12V |
| 22 | Power(W) | 142W |
| 23 | Power Supply | Chenglian with CE certification |
| 24 | MTBF(Mean Time Between Failure) | >5000 hours |
| 25 | Display lifespan | >100000 hours |
| 26 | Service Access: | Front or rear open |
| 27 | Cabinet Material: | aluminum alloy frame |
| 28 | Waterproof Level: | IP65 with iron cabinet |
| 29 | Using environment | Semi-outdoor&Outdoor |
