| Prod Model: |
P16-DIP346 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
DIP 346 |
| Module Size: |
256X256mm |
| Module Resolution: |
16X16dots |
| Cabinet Size: |
1024X768mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
RoHS |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Average Power Consumption: |
300W / m² |
| Application: |
Advertising,Stage Performance,Rental |
| Pixel Density: |
3906dots/Sq.M |
Product Description

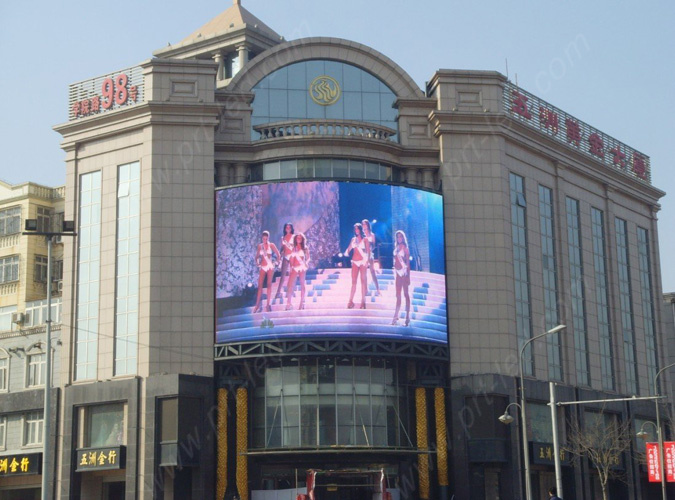

P16 Curved LED Screen Display for outdoor advertisement, with high brightness and good performance
Product Features:
1. DIP led encapsulation confirm the high brightness even under sunlight,
2.Good waterproof,IP65, Anti-corrosion,Antifogging,suit to any weather
3.High quality,with CE,Rohs,FCC certificates,and 2years warranty
4. High pixel density, Long view distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed automatically
6.Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
P16 Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 16.0 |
| Pixel Density | Dots/sq.m | 3906 |
| Pixel Configuration |
| DIP346 |
| Cabinet Resolution | dots | 64χ48 |
| Refresh Rate | Hz | ≥3000 |
| View Angle(H/V) | ° | 100/45 |
| Brightness | nits | ≥7500 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 700/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 1024x768 |
| Cabinet Material |
| Iron |
| Cabinet Weight | Kg |
|
| Module Size(W×H) | mm | 256×256 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| Static Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
