Outdoor CATV Field Trunk Amplifier with Agc
| Price: |
US $ 30-40/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
CATV Trunk Amplifier (DT-FTAA-8200) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
247mm X 205mm X 123mm. |
| Suitable: |
1GHz CATV Bidirectional Cable Transmission Network |
| Certification: |
RoHS |
| Condition: |
New |
| Function: |
Signal Transmitting Device |
| Type: |
CATV（Cable Television）Equipment |
Product Description
Description

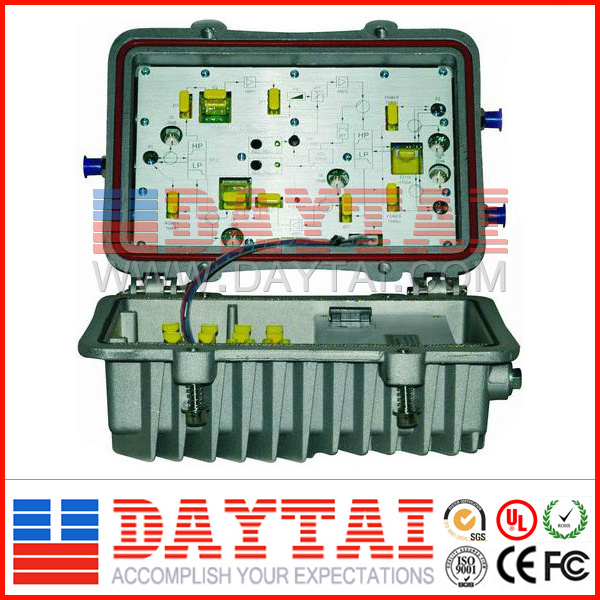

CATV trunk amplifier, DT-FTAA-8200 outdoor bidirectional amplifier is a high gain high output modular
AGC amplifier, It is suitable to the 1GHz CATV bidirectional cable transmission network, Forward Path:
(Operating Frequency: 47/85-860/1000 MHz, Highest Gain: ≥ 38dB, C/CTB: ≥ 67dB, C/CSO: ≥ 65dB. ), Return
Path: (Operating Frequency: 5~ 57/59MHz, Highest Gain: ≥ 24dB, Carriersecond order intermodulation ration
: ≥ 52dB, Operating Voltage: AC150~265V or AC 35~90V(50Hz), Dimension: 247mm x: 205mm x 123mm.
Feature
Field Bidirectional AGC.
Cast aluminum waterproof shell.
Application
CATV System.
Building large or middle-sized CATV bi-directional transmission network.
|
Item |
Unit |
Technique Parameter |
|
Downlink Transmission Path |
|
Frequency Range |
MHz |
47/85 ~860/1000 |
|
Rated Gain |
dB |
30 |
34 |
36 |
38 |
|
Minimum Full Gain |
dB |
≥30 |
≥34 |
≥36 |
≥38 |
|
Rated Input Level |
dBμV |
72 |
|
Rated Output Level |
dBμV |
106/108 |
|
Flatness in Band |
dB |
±0.75 |
|
Noise Figure |
dB |
≤ 10 |
|
Return Loss |
dB |
≥ 16 |
|
Attenuation |
dB |
1-18 ( Fixed insert,
1dB stepping ) |
According to user requirements |
|
Equilibrium |
dB |
1-15( Fixed insert,
1dB stepping ) |
|
C/CTB |
dB |
≥67 |
Test condition: 79 channels signal,
output level:
53MHz/550MHz/750MHz .
99dBuV/105dBuV/108 dBuV |
|
C/CSO |
dB |
≥69 |
|
AGC Pilot Carrier Frequency |
MHz |
168.25 ( Or up to users ) |
|
AGC Characteristic |
dB |
±4 ( Input )/±0.5 ( Output ) |
|
Group Delay |
ns |
≤ 10 (112.25 MHz/116.68 MHz) |
|
Signal to Hum Ratio |
% |
< 2 |
|
Gain Stability |
dB |
-1.0 ~ +1.0 |
|
Uplink Transmission Path |
|
Frequency Range |
MHz |
5 ~ 42/65 |
|
Rated Gain |
dB |
12 |
16 |
20 |
24 |
|
Maximum Output Level |
dBμV |
≥ 110 |
|
Flatness in Band |
dB |
±0.75 |
|
Noise Figure |
dB |
≤ 12 |
|
Return Loss |
dB |
≥ 16 |
|
Carrier to Second-order Inter-modulation Ratio |
dB |
≥ 52 |
Test Condition: Output level is 110dBuV,
test points:
F1=10MHz, f2=60MHz, f3=f2-f1=50MHz |
|
Group Delay |
ns |
≤ 20 (57MHz/59MHz) |
|
Signal to Hum Ratio |
% |
< 2 |
|
General Characteristic |
Characteristic
Impedance |
Ω |
75 |
|
Test Interface |
dB |
-20±1 |
|
Supply Voltage |
V |
A : AC ( 135 ~ 250 ) V ; B : AC ( 35 ~ 90 ) V |
|
Impulse Withstand Voltage ( 10/700μs ) |
kV |
> 5 |
|
Power Consumption |
W |
25 |
|
Dimensions |
mm |
247*205*123 |
