CATV High-Class Trunk Amplifier
| Price: |
US $ 30-40/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
CATV trunk amplifier |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
295mm X 210mm X 150mm. |
| Suitable: |
1GHz CATV Bidirectional Cable Transmission Network |
| Certification: |
RoHS |
| Condition: |
New |
| Function: |
Signal Transmitting Device |
| Type: |
CATV（Cable Television）Equipment |
Product Description
Description

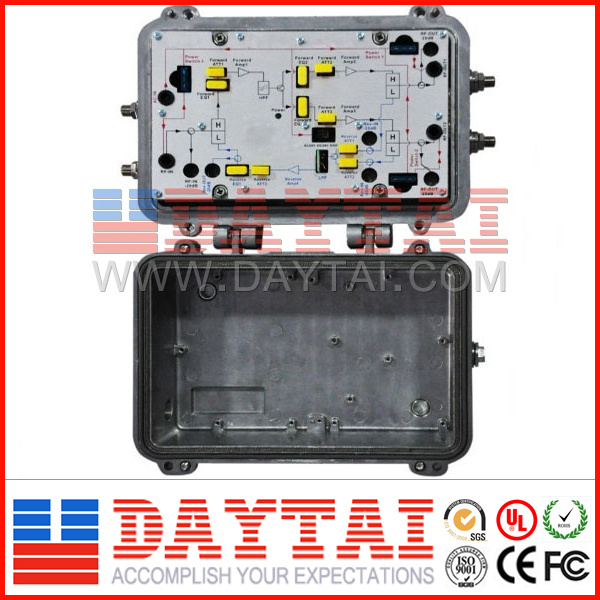

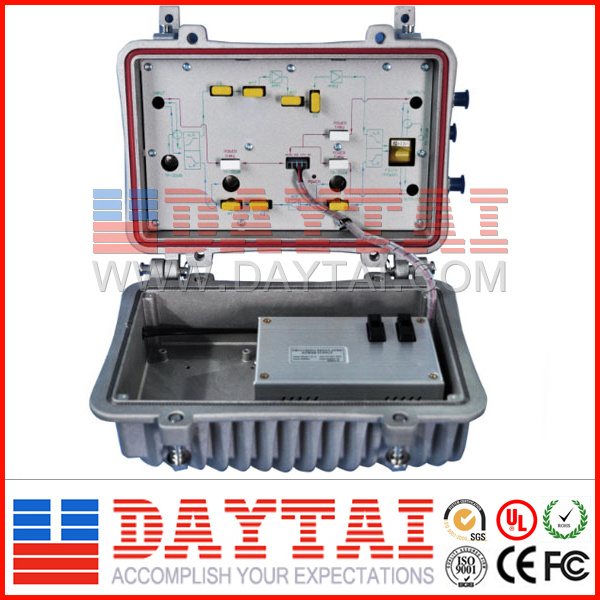

CATV trunk amplifier, DT-TAA-8300 outdoor bidirectional amplifier is a high gain high output modular amplifier,
It is suitable to the 1GHz CATV bidirectional cable transmission network, Forward Path: (Operating Frequency: 47/54/85-862/1003 MHz, Highest Gain: ≥ 40dB, C/CTB: ≥ 65dB, C/CSO: ≥ 63dB. ), Return Path: (Operating Frequency: 5~ 30/42/65MHz,
Highest Gain: ≥ 20dB, Carrier second order intermodulation ration: ≥ 52dB, Operating Voltage: AC150~265V or AC 35~90V(50Hz),
Dimension: 295mm x: 210mm x 150mm.
Feature
Plug-in equalizer and attenuator, GaAs power doubler output.
Two-channel independent output, modular cast aluminum waterproof shell
Application
CATV System.
Building large or middle-sized CATV bi-directional transmission network.
| Item | Unit | Technical Parameters |
| Forward Path |
| Frequency range | MHz | 47/54/85-862/1003 |
| Rated gain | dB | 30 | 34 | 36 | 38 | 40 |
| Minimum full gain | dB | ≥30 | ≥34 | ≥36 | ≥38 | ≥40 |
| Rated input level | dBμV | 72 |
| Rated output level | dBμV | 108 |
| Flatness in band | dB | ±0.75 |
| Noise figure | dB | ≤10 |
| Return loss | dB | ≥16 |
| Attenuation | dB | 1-18 (Fixed insert,1dB stepping) | According to user requirements |
| Equilibrium | dB | 1-15 (Fixed insert,1dB stepping) |
| C/CTB | dB | 65 | Test condition: 79 channels signal,
output level:
85MHz/550MHz/860MHz.
99dBuV/105dBuV/108 dBuV |
| C/CSO | dB | 63 |
| Group delay | ns | ≤10 (112.25 MHz/116.68 MHz) |
| AC hum modulation | % | < 2% |
| Gain stability | dB | -1.0 ~ +1.0 |
| Return Path |
| Frequency range | MHz | 5 ~ 30/42/65 |
| Rated gain | dB | ≥20 |
| Minimum full gain | dB | ≥22 |
| Maximum output level | dBμV | ≥ 110 |
| Flatness in band | dB | ±0.75 |
| Noise figure | dB | ≤ 12 |
| Return loss | dB | ≥ 16 |
| Carrier to second-order inter-modulation ratio | dB | ≥ 52 | Test Condition: Output level 110dBuV, test points:
F1=10MHz,f2=60MHz,f3=f2-f1=50MHz |
| Group delay | ns | ≤ 20 (57MHz/59MHz) |
| AC hum modulation | % | < 2% |
| General Performance |
| Characteristic impedance | Ω | 75 |
| Test port | dB | -20±1 |
| Power supply voltage | V | A : AC (135 ~ 250) V ; B : AC ( 4 5 ~ 90) V |
| Impulse withstand voltage ( 10/700μs ) | kV | > 5 |
| Power consumption | W | 29 |
| Dimension | mm | 295 (L) × 210 (W) × 150 (H) |
