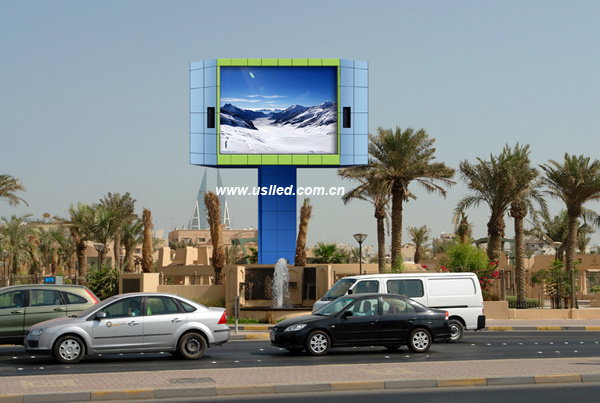

Outdoor Advertising LED Display
| Price: |
US $ 1/Square Meter |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ODP10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Certification: |
CE |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
300W / m² |
Product Description
Outdoor Advertising LED Display , outdoor advertising led display P10mm , outdoor commercial led displayP16mm , outdoor LED display screenP20mm
Product Description:
1. High brightness and adjustable according to the application environment;
2. Update PCB desgin match ideal IC, the whole LED display energy saving30%
3. Each color processing 16bit, 281trillion colors vividly displaying
4. Best white balance and color uniformity with best heat dissipation design
5. Modular design, standard cabinet, easy and fast to install
6. Support DOT by DOT correction function, high-definition display effect
7. With video processor together can support AV, S-Video, VGA, DVI, HDMI, SDI, DP
8. Our engineer team have more than 15years LED display design experience
Service:
1. We provide LED display connection and installation instruction or graph for you
2. Welcome your engineer come and accept training in our workshop, training time is 3 work days
3. We can assign our engineer to your local installation site for display installation guidance, But you need to be responsible engineer tickets, local transportation together room and board cost.
Our Outdoor Full Color LED Display Screen adopt bigger RGB Epistar LED chip with best IC driver and accessories , best heat dissipation ,best white balance and color humidity to achieve best high-definition display effect .
|
Model |
ODP10 ,P16,P20 |
|
Pixel pitch |
10mm /16mm /20mm |
|
Pixel composition |
1 red, 1 green and 1 blue LED |
|
Pixel Density per SQM |
10000pixels/SQM |
|
LED |
DIP346 |
|
Brightness |
>7500CD/SQM |
|
Scan Mode |
1/4 |
|
Drive Mode |
Constant Current |
|
Panel Dimension |
1280x1280(MM) |
|
Panel Dimension |
50.4x 50.4(Inch) |
|
Panel Material |
Steel |
|
Weight |
89KG |
|
Module Dimension |
320x320(MM) |
|
Module Dimension |
12.6x12.6(Inch) |
|
Pixel Matrix per Module |
32x32pixels |
|
Pixel Matrix per Panel |
128x128pixels |
|
Refresh Rate |
≥1000HZ |
|
Contrast ratio |
2000:1 |
|
Gray Scale per Color |
65536Level |
|
Colors |
281trillion |
|
Viewing Angle(H/V) |
120/60(deg) |
|
IP Rate (Front /Rear) |
IP65/IP54 |
|
Power Consumption ( Max /Avg) |
1800/ 600(W/ Panel) |
|
Input Voltage(AC) |
110V/ 220V |
|
Operating Temperature |
-20deg---+60deg |
|
Operating Humidity |
10%_95%RH |
|
Source Compatibility (with Video Processor) |
AV, S-Video, VGA, DVI, HDMI, SDI, DP |
