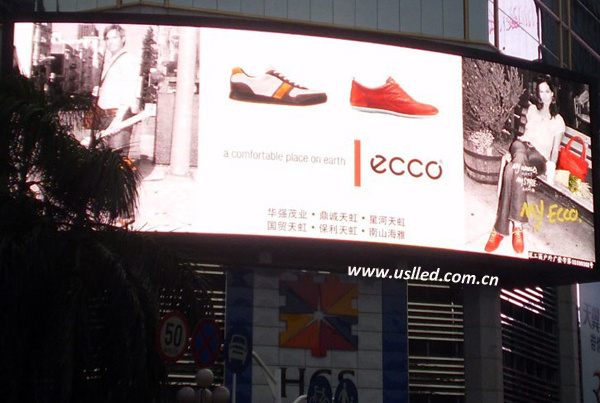

Commercial LED Display P20mm
| Price: |
US $ 1/Square Meter |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
ODP20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
2R, 1G, 1B |
| Pixel Pitch: |
20mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
CE |
| Pixel Density: |
2500dots/Sqm |
| Average Power Consumption: |
150W/Sqm |
Product Description
Commercial LED Display P20mm, outdoor commercial LED display
Our P20 serial adopt 320X320mm modules, which is our own team design, best heat dissipation to guaranty LED long life, with best white balance and color humidity to achieve high-definition display.
1. High brightness and adjustable according to the application environment;
2. Update PCB desgin match ideal IC, the whole display energy saving30%
3. Each color processing 16bit, 281trillion colors vividly displaying
4. Best white balance and color uniformity with best heat dissipation design
5. Modular design, standard cabinet, easy and fast to install
6. Support DOT by DOT correction function, high-definition display
7. With video processor together can support AV, S-Video, VGA, DVI, HDMI, SDI, DP
8. Our engineer team have more than 15years LED display design experience
Service:
1. We provide LED display connection and installation instruction or graph for you
2. Welcome your engineer come and accept training in our workshop, training time is 3 work days
3. We can assign our engineer to your local installation site for display installation guidance, But you need to be responsible engineer tickets, local transportation together room and board cost.
|
Model |
ODP20 |
|
Pixel pitch |
20mm |
|
Pixel composition |
2 red, 1 green and 1 blue LED |
|
Pixel Density per SQM |
2500pixels/SQM |
|
LED |
DIP546 |
|
Brightness |
>6500CD/SQM |
|
Scan Mode |
Static |
|
Drive Mode |
Constant Current |
|
Panel Dimension |
1280x1280(MM) |
|
Panel Dimension |
50.4x50.4(Inch) |
|
Panel Material |
Steel |
|
Weight |
80KG |
|
Module Dimension |
320x320(MM) |
|
Module Dimension |
12.6x12.6(Inch) |
|
Pixel Matrix per Module |
16x16pixels |
|
Pixel Matrix per Panel |
64x64pixels |
|
Refresh Rate |
≥1000HZ |
|
Contrast ratio |
2000:1 |
|
Gray Scale per Color |
65536Level |
|
Colors |
281trillion |
|
Viewing Angle(H/V) |
120/60(deg) |
|
IP Rate (Front /Rear) |
IP65/IP54 |
|
Power Consumption ( Max /Avg) |
900/ 300(W/ Panel) |
|
Input Voltage(AC) |
110V/ 220V |
|
Operating Temperature |
-20deg---+60deg |
|
Operating Humidity |
10%_95%RH |
|
Source Compatibility (with Video Processor) |
AV, S-Video, VGA, DVI, HDMI, SDI, DP |
Shenzhen USL Optoelectronics Technology Co., Ltd. established on DEC of 2009 year, focus on LED Display innovation, development and production, our core technicians average experience in LED display research and production field more than 15 years, our products focus on Outdoor Full color LED Display both rental and advertising, in order to meet outdoor LED display market higher definition, best viewing effect requirement and convenient our clients to operate LED display and save cost both transport and labor, we already push outdoor SMD P6, P8, P10 LED panel with wider viewing angle, in the future USL will continue our LED display target "stable quality of products, convenient clients, creative value for clients", promote LED display innovation and development.
Meanwhile, USL make quality as life, quality and specialty is our exist foundation, we strictly guide production according to ISO9001, ISO14000, TS16949 international management rules and quality management system, from martial choice to each procedure of production, we have special QC to check and test by instruments, also after long years cooperation and good reputation, USL with our suppliers together formed one mature and complete supply chain, fully practice complementary advantage, efficient operation, based on this virtuous beneficial cycle, further firmly stable our quality again. "Top quality with best price" is our production target, all our products have CE and RoHS certification.
USL Specialize in Outdoor LED Display, Indoor LED Display, Traffic LED Signs match with LED Display Modules, which convenient our experienced clients to assemble display their local place, save cost win time, assist maximum clients value, Customize is our most outstanding feature, all display modules is our own design, very good capability with stable lighter structure together, great convenience to clients, now our display already export to England, Romania, Indonesia, Malaysia, Thailand, Vietnam, Philippines, Sri Lanka, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Finland, France, Grace, Portugal, Poland, Spain, USA, Canada, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.
As one responsible and creative LED Display Enterprise, USL will solid step of the way in the future with all our clients friends!
