Prod Model: |
BQL-1046-JSNB/LED |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: |
450nits |
Screen Resolution: |
1920 X 1080P |
Display Mode: |
Have Single Display, Any Combination Display, Full |
Seam: |
5.7mm |
Panel Type: |
Samsung Did Industrial Panel |
Control Interface: |
RS232 and IR Remote Controller |
Advantage: |
an Orginal Creation of Dynamic Super Resolution Te |
Type: |
TFT |
Application: |
Big-Screen Project |
Feature: |
LED Backlight Display |
Screen Size: |
46" |
Interface Type: |
HDMI, AV, Ypr/Pb, S-Video, VGA |
Product Description

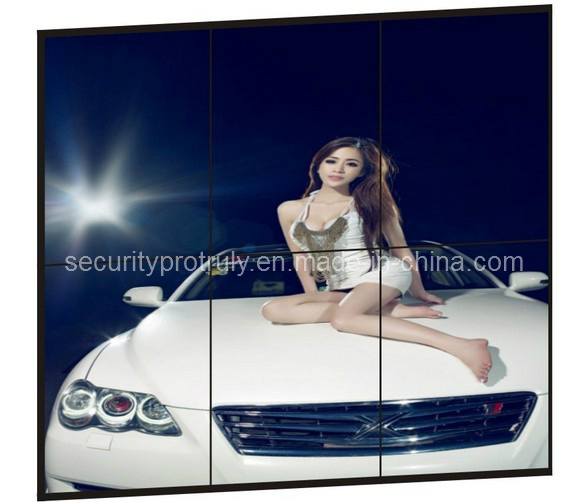

1000 series Super Narrow panel display
Panel display Features:
1. Composed with Main Screen X 1piece and other Sub-Screens.
2. All the signals entre into Main Screen, transfer to DVI digital signal to any Sub-Screens.
3. All the Sub-Screens connect by DVI cable in series.
Protruly panel display Display Mode:
1. Splicing to full screen display by any line or row.
2. Each screen can show out the same image by reduplicate.
3. Kaleidoscope display.
Protruly panel display Application Places:
1. Entertainment Show: Pub, Bar, KTV, Live.
2. Live Television: Convention, Banquet, Sport Event.
3. Enterprise Hall.
Protruly panel display overview
The LCD screen adopts original Samsung industrial grade panel (DID panel, digital information display) for image processing, with high brightness up to 700CD, 3000: 1 contrast ratio and 97% color saturation. Having top image quality with high brightness and solution, wide color saturation, uniform brightness, Further more, coupled with PVA (Patterned Vertical Alignment) technology, its viewing angle goes up to 180° In horizontal and vertical direction. With 120Hz fresh frequency, the DID splicing display wall can effectively solve the smearing and fuzzy in image during moving process. And upgrades displaying effect through enhancing image clarity and contrast ratio. Completely reliving eye fatigue regardless of long time watching.
Protruly panel display Image Processing Technique:
An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen. De-interlacing Technique will eliminate flash. Dynamic value compensate, 3D dynamic digital reduce sound, 3D pectination filtration, 10 digital brightness and increase color, image frame can select compensate and cover, full high definition signal real time processing.
Display Function Summarize:
1. Manual / Timing / Cruise / Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
2. Single screen display; Full screens display; Any combination of screens display.
Shenzhen Protruly Electronics Co., Ltd. |
Samsung DID industrial panel- LCD video wall system (1000 series Built-in Matrix) |
Features:
1. Composed with Main Screen x 1piece and other Sub-Screens.
2. All the signals entre into Main Screen, transfer to DVI digital signal to any Sub-Screens.
3. All the Sub-Screens connect by DVI cable in series.
Display Mode:
1. Splicing to full screen display by any line or row.
2. Each screen can show out the same image by reduplicate.
3. Kaleidoscope display.
Application Places:
1. Entertainment Show: Pub, Bar, KTV, Live.
2. Live Television: Convention, Banquet, Sport Event.
3. Enterprise Hall.
Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows. |
Model
Parameter |
BQL-1046-JSNB/LED |
Screen Diagonal |
46" |
Size(WxHxD)mm |
1025.6 x 580 x 100 |
Screen resolution |
1920 x 1080P |
Active display(HxV) |
1018.1 x 572.7 |
Color Saturation |
97% |
Brightness |
450cd/ square meter |
Contrast ratio |
3500:1 |
Back light |
LED |
Refresh Frequency |
60HZ |
Display Color |
16.7M (8-bit) |
Viewing Angle |
178° |
Seam |
5.7mm |
Input Interface |
HDMI, AV, YPr/Pb, S-VIDEO, VGA |
Signal Format |
NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P |
Control Interface |
RS232 AND IR REMOTE CONTROLLER |
Image Processing Technique |
An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen.De-interlacing Technique will eliminate flash.Dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing. |
Matrix Configuration |
Built-in matrix |
Work Temperature |
0 - 50 |
Work Humidity |
15 - 75% |
Power Supply. |
AC220V - AC240V |
Average Power |
130W |
Net weight |
17KG |
Install way |
Wall hanging, Floor stand, Cabinet |
Recommend Use Location |
Security, control center, entertainment places, advertising, meeting center any indoor place you like. |
Display Function Summarize |
Manual / Timing / Cruise / Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
Single screen display; Full screens display; Any combination of screens display. |
Acessories |
Free Accessories included: DIV Cables, RS232 Cables, AC Power Cables, IR Romote, IR Receiver, Controlling Software DC, Screws for Installing Brakcet and Display, User Manual. |
BUSINESS TERMS |
1) Above price based on EXW. |
2) Payment terms: 30% T/T deposit, rest before delivery. |
3) Lead time of delivery: Within one week after payment rec'd. |
4) Package: A7 carton for inner package, wooden carton for master package. |
