Shenzhen Protruly Electronics Co., Ltd. >> OEM LCD Display with FCC and CE Certificate (BQL-1046-JSNB/07D)

OEM LCD Display with FCC and CE Certificate (BQL-1046-JSNB/07D)

OEM LCD Display with FCC and CE Certificate (BQL-1046-JSNB/07D)
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: BQL-1046-JSNB/07D
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 700nits
Screen Resolution: 1920 X 1080P
Display Mode: Have Single Display, Any Combination Display, Full
Seam: 5.7mm
Panel Type: Samsung Did Industrial Panel
Control Interface: RS232 and IR Remote Controller
Advantage: an Orginal Creation of Dynamic Super Resolution Te
Type: TFT
Application: Big-Screen Project
Feature: With Remote Control
Screen Size: 46"
Interface Type: HDMI, AV, Ypr/Pb, S-Video, VGA

Product Description

Protruly LCD display

Features:
1. Composed with Main Screen X 1piece and other Sub-Screens.
2. All the signals entre into Main Screen, transfer to DVI digital signal to any Sub-Screens.
3. All the Sub-Screens connect by DVI cable in series.

LCD display Display Mode:
1. Splicing to full screen display by any line or row.
2. Each screen can show out the same image by reduplicate.
3. Kaleidoscope display.

LCD display Application Places:
1. Entertainment Show: Pub, Bar, KTV, Live.
2. Live Television: Convention, Banquet, Sport Event.
3. Enterprise Hall.

LCD display Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows.

LCD display overview
The LCD screen adopts original Samsung industrial grade panel (DID panel, digital information display) for image processing, with high brightness up to 700CD, 3000: 1 contrast ratio and 97% color saturation. Having top image quality with high brightness and solution, wide color saturation, uniform brightness, Further more, coupled with PVA (Patterned Vertical Alignment) technology, its viewing angle goes up to 180° In horizontal and vertical direction. With 120Hz fresh frequency, the DID splicing display wall can effectively solve the smearing and fuzzy in image during moving process. And upgrades displaying effect through enhancing image clarity and contrast ratio. Completely reliving eye fatigue regardless of long time watching.
Shenzhen Protruly Electronics Co., Ltd.

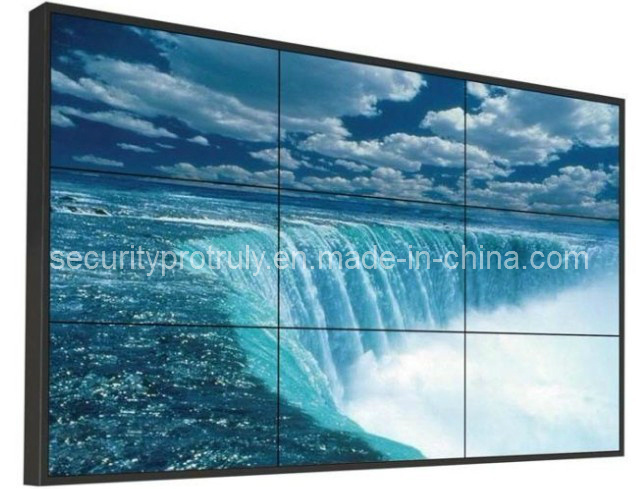

Samsung DID industrial panel- LCD video wall system (1000 series Built-in Matrix)
Features:
1. Composed with Main Screen x 1piece and other Sub-Screens.
2. All the signals entre into Main Screen, transfer to DVI digital signal to any Sub-Screens.
3. All the Sub-Screens connect by DVI cable in series.

Display Mode:
1. Splicing to full screen display by any line or row.
2. Each screen can show out the same image by reduplicate.
3. Kaleidoscope display.

Application Places:
1. Entertainment Show: Pub, Bar, KTV, Live.
2. Live Television: Convention, Banquet, Sport Event.
3. Enterprise Hall.

Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows.
                        Model

BQL-1046-JSNB/07D
Screen Diagonal  46"
Size(WxHxD)mm 1025.6 x 580 x 100
Screen resolution 1920 x 1080P
Active display(HxV) 1018.1 x 572.7
Color Saturation 97%
Brightness 700cd/ square meter
Contrast ratio 3500:1
Back light LED
Refresh Frequency 60HZ
Display Color 16.7M (8-bit)
Viewing Angle 178°
Seam 5.7mm
Input Interface HDMI, AV, YPr/Pb, S-VIDEO, VGA
Signal Format NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P
Control Interface RS232 AND IR REMOTE CONTROLLER
Image Processing Technique An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen.De-interlacing Technique will eliminate flash.Dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing.
Matrix Configuration Built-in matrix
Work Temperature 0 - 50
Work Humidity 15 - 75%
Power Supply. AC220V - AC240V
Average Power 220W
Net weight 17KG
Install way Wall hanging, Floor stand, Cabinet
Recommend Use Location Security, control center, entertainment places, advertising, meeting center any indoor place you like.
Display Function Summarize Manual / Timing / Cruise / Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
Single screen display; Full screens display; Any combination of screens display.
Acessories  Free Accessories included: DIV Cables, RS232 Cables, AC Power Cables, IR Romote, IR Receiver, Controlling Software DC, Screws for Installing Brakcet and Display, User Manual.
BUSINESS TERMS
1) Above price based on EXW.
2) Payment terms: 30% T/T deposit, rest before delivery.
3) Lead time of delivery: Within one week after payment rec'd.
4) Package: A7 carton for inner package, wooden  carton for master package.

Overview:
Shenzhen Protruly Electronics Co., Ltd. is a state-level high-tech enterprise focuses on the research and development of optical-electro-mechanical core technology relates to image, mainly develops high-end image acquisition, processing, display technology, and applies high-grade technology in the field of security and protection, education, commerce and high-end home video products. Since its founding, Protruly insists innovation and become a leader in core technologies, take surpassing the world's leading enterprise as development principle and "technology create value" for the enterprise mission. Protruly uses self-developed high-end technology and make complete made-in-China intelligent spherical night vision camera, LCD video wall and home security products, and enjoys good reputation in the security market with its high-end performance and top quality. From 2011, Protruly will take the value of technology further into the commerce, education, household and other industries to create wider market prospect.

Founded in 2006, Protruly's production base is located in Longhua New Area, Shenzhen. The company has a professional R&D center, brings together top international research and development of light mechanical engineers, spending hugh sums for R&D investment, is commuted to high-end image acquisition, processing, display of core technology development and innovation; Company has a stable, professional, high-quality technical services and marketing team.

Protruly is the executive director units of China Security Association, vice president unit of Association of Guangdong security and member untit of many associations in the field of security and protection. The company has software copyrights, inventions and utility models, design patents and many other intellectual property protections.

Protruly has gained a lot of results by using high-end technology in the security industry. In 2008, Protruly launched zoom camera with completely independent intellectual property rights and high cost effectiveness! And it was also the pioneer in R&D of high speed dome camera and the first domestic enterprise to be able to compete with international top technology. In 2009, Protruly launched high cost-effective SLCD monitors with core technology, includes the original "dual-splicing" technology, which fulfills 4 in 1 monitor and make Protruly the inaugurator of big screen monitoring, and the launch of 6.7mm bezel LCD video wall in 2010 even gained its firm foothold in this industry.

In 2011, Protruly keep the leading position of security and protection technology, while formally move into commerce, education and household market! Currently, the company has developed interactive educational facilities, commercial TV, advertising player, digital signage, portable displays, night vision cameras, burglar alarms and other products, and reserves R&D and production strength of the above high-end video equipments.
The company passed the ISO9001 international quality management system, all products got through the test form Chinese Ministry of Public Security and Police Electronic Product Quality Testing Center, China 3C compulsory certification, CE certification, the U. S. FCC certification and the Chinese energy-saving certification. And it is top-100 enterprise in security manufacturing, top-10 security camera companies, Trustworthy Enterprise cited by Guangdong Provincial Administration for Industry and independent innovation brand. Cited as advanced enterprise implementing ISO international management system and gained AAA grade credit rating. Protruly's enterprise mission: Science and technology create value!

Protruly's business purposes: Promises, reputation, integrity, ensure customer's best profit and long-term cooperative relations with customers.

Protruly's operating principle: To be the outstanding student of customer, strive to achieve "good quality, good price system and good sales service.
