Prod Model: |
BQL-2055-JSNB/07D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: |
700nits |
Full HD Resolution: |
1920 X 1080P |
Display Mode: |
1. Splicing to Full Screen Display by M X N. 2. Sp |
Seam: |
5.3mm |
Panel Type: |
Samsung Did Industrial Panel- LCD |
Advantage 1st.: |
DVI Digital Signal Transmission |
Advantage 2ND.: |
Embedded Imaging Processor Design |
Control Ways: |
IR Remote Controller, RS232 of Software |
Type: |
TFT |
Application: |
Big-Screen Project |
Feature: |
Support TV Function |
Screen Size: |
55" |
Interface Type: |
HDMI, VGA, S-Video, Ypb/Pr, AV |
Product Description
Protruly Super Narrow Bezel LCD LCD Display
Features:
1. Support M X N Group (Including: VGA, DVI, AV, Y/C, YPrPb, HDMI) video signal input at the same time.
LCD Display Application Places:
1. Command Center: Convention, Sport Event.
2. Information Management Center: Airport, Station, Exhibition Hall.
3. Video Conference Center: Group Company.
4. Distributed Management Center: Gas Station, Police Station.
LCD Display Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows.
LCD Display Display Mode:
Built- in Matrix.

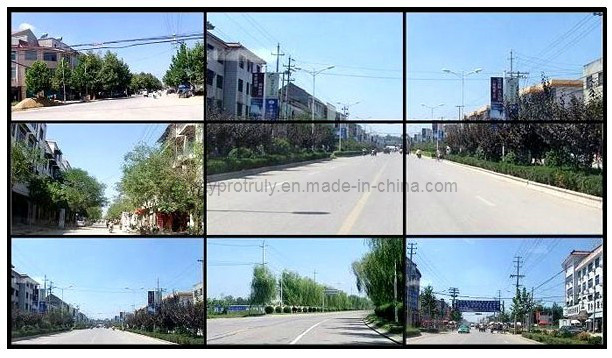

1. Splicing to full screen display by M X N.
2. Splicing display by any screen.
3. Each screen with different video.
LCD Display overview
The LCD screen adopts original Samsung industrial grade panel (DID panel, digital information display) for image processing, with high brightness up to 700CD, 3000: 1 contrast ratio and 97% color saturation. Having top image quality with high brightness and solution, wide color saturation, uniform brightness, Further more, coupled with PVA (Patterned Vertical Alignment) technology, its viewing angle goes up to 180° In horizontal and vertical direction. With 120Hz fresh frequency, the DID splicing display wall can effectively solve the smearing and fuzzy in image during moving process. And upgrades displaying effect through enhancing image clarity and contrast ratio. Completely reliving eye fatigue regardless of long time watching.
Full HD DID LCD screen with built-in FPGA hardware control system which works smoothly and with package function. Equipped with composite video, Ypb/Pr, S-VIDEO, VGA, HDMI, TV and AV port. Full HD 1920X1080P is supported. DID LCD screen is an integrated entity, free of external accessories. Easy for transportation and operation like building blocks. Any quantity LCD screens can be combined as per your needs. Such as 2× 2, 4× 4, 2 × 4, ...M× N.
2000 series has one channel digital matrix, supporting one channel signal transmission in DVI cable. The preceding signal will be replaced if one more channels signal processes simultaneously. 5000 series has four channels digital matrix, the upgraded version based on original 2000 series. Supporting up to four channels signals input and display simultaneously, no signal interference. 3000 series is vertical splicing display wall. Nearly same features with 2000 series except for display pattern
Shenzhen Protruly Electronics Co., Ltd. |
Samsung DID industrial panel- LCD video wall system (One channel signal splicing 2000 series Built-in Matrix) |
Features:
1. Support M x N Group (Including: VGA, DVI, AV, Y/C, YPrPb, HDMI) video signal input at the same time.
Display Mode:
Built- in Matrix.
1. Splicing to full screen display by M x N.
2. Splicing display by any screen.
3. Each screen with different video.
Application Places:
1. Command Center: Convention, Sport Event..
2. Information Management Center: Airport, Station, Exhibition Hall.
3. Video Conference Center: Group Company.
4. Distributed Management Center: Gas Station, Police Station.
Control Software:
1. Both Chinese and English are optional.
2. Apply to Windows. |
Model
Parameter |
BQL-2055-JSNB/07D |
Screen Diagonal |
55" |
Size(WxHxD)mm |
1215.3 x 686.1 x 120.4 |
Screen resolution |
1920 x 1080P |
Active display(HxV) |
1209.6 x 680.4 |
Color Saturation |
97% |
Brightness |
700cd/ square meter |
Contrast ratio |
3500:1 |
Back light |
LED |
Refresh Frequency |
60HZ |
Display Color |
16.7M (8-bit) |
Viewing Angle |
178° |
Seam |
5.3mm |
Input Interface |
HDMI, AV, YPr/Pb, S-VIDEO, VGA, |
Signal Format |
NTSC, PAL, 480P, 576P, 720P, 1080I, 1080P |
Control Interface |
RS232 AND IR REMOTE CONTROLLER |
Image Processing Technique |
An orginal creation of Dynamic Super Resolution Technique will clearly display low resolution image on high resolution screen.De-interlacing Technique will eliminate flash.Dynamic value compensate,3D dynamic digital reduce sound,3D pectination filtration,10 digital brightness and increase color,image frame can select compensate and cover,full high definition signal real time processing. |
Work Temperature |
0 - 50 |
Work Humidity |
15 - 75% |
Power Supply. |
AC220V - AC240V |
Average Power |
285W |
Net weight |
29KG |
Install way |
Wall hanging, Floor stand, Cabinet |
Recommend Use Location |
Security, control center, entertainment places, advertising, meeting center any indoor place you like. |
Display Function Summarize |
Manual / Timing / Cruise / Alarm plan settings, kaleidoscope display, intelligent temperature control and alarm, communication failures automatic detection.
Single screen display; Full screens display; Any combination of screens display. |
Acessories |
Free Accessories included: DIV Cables, RS232 Cables, AC Power Cables, IR Romote, IR Receiver, Controlling Software DC, Screws for Installing Brakcet and Display, User Manual. |
BUSINESS TERMS |
1) Above price based on EXW. |
2) Payment terms: 30% T/T deposit, rest before delivery. |
3) Lead time of delivery: Within one week after payment rec'd. |
4) Package: A7 carton for inner package, wooden carton for master package. |
