Non-Pressurized Solar Water Heater with Cistern-Solar Keymark
| Price: |
US $ 100-350/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
TJ-S2-18 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
SRCC,SABS,Solar Keymark |
Product Description
Non-Pressurized Solar Water Heater with Cistern

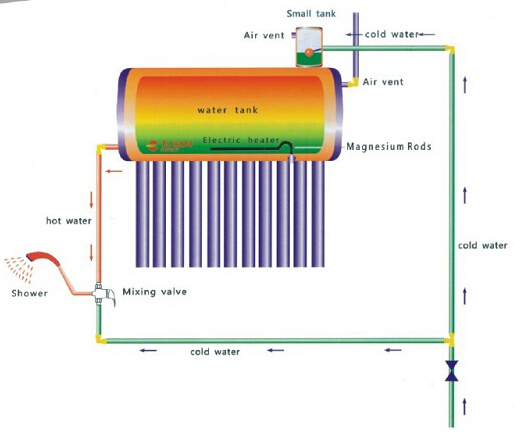

Working principle:Non-pressurized solar water systems of all-glass evacuated collector intergraded with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.
As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward. When cold water in evacuated tubes in heated, it becomes lighter and goes to the water tank, while cold water goes down to the evacuated rubes. Through this circulation, the cold water in the tank will be gradually heated.Advantages:1. Equipped with excellent solar-thermal conversion and low heat loss evacuated tubes.
2. Stainless steel SUS304-2B inner cylinder.
3. Simple structure, easy to assembly and install.
4. Highly efficient insulation with high pressure constant temperature and fixed quality integrated polyurethane foaming technology.
5. Together with the auxiliary electric heater, it can provide hot water even in the low-radiation days.
6. High wind and snow resistant performance.
7. 15-year limited warranty.| Model | Vacuum Tube | Tank | Frame Material | Material of inner and outer tank | Heat insulating layer | For How many people use |
| TJ-G series | Tube Quantity | Dia/Len(mm) | Qty(pcs) | Dia outer/inner (mm) | Volume(L) |
| TJ-G2-12 | 12 | 58/1800 | 12 | 480/380 | 100 | Galvinzed steel 1.5mm | 0.31 mmStainless steel 304 for inner tank,Galvanized steel for outer tank | 50mm thickness polyurethane foam | 3 |
| TJ-G2-18 | 18 | 58/1800 | 18 | 480/380 | 150 | 3 |
| TJ-G2-24 | 24 | 58/1800 | 24 | 480/380 | 200 | 4 |
| TJ-G2-30 | 30 | 58/1800 | 30 | 480/380 | 250 | 5 |
| TJ-G2-36 | 36 | 58/1800 | 36 | 520/400 | 300 | 6 |
Jiaxing Tjsun New Energy Co., Ltd., is a high & new technology company which is specialized in manufacturing solar energy products, especially the solar water heaters, with ten years' experience in this line. Tjsun is a global company focused on providing simple and effective solutions for families and businesses concerned about the effects of climate change and rising energy costs. Tjsun solar thermal systems are widely used in both residential and commercial applications to provide hot water, space heating, industrial hot water and even air-conditioning. In 2013, TJSUN Energy spent 200000000RMB to build a production line for Foam glass, Insulation material for Petrochemical and commercial construction use.
Tjsun has a high reputation with the strategy of technological products, normative management, international standard and star-class service. Jiaxing TJSUN New Energy Co., Ltd. Has won quite a good market share due to excellent quality and competitive price. In the coming years, Jiaxing tjsun New Energy Co., Ltd. Would like to cooperate with the customers from all over the world and make more people share the benefits which the solar energy brings.
