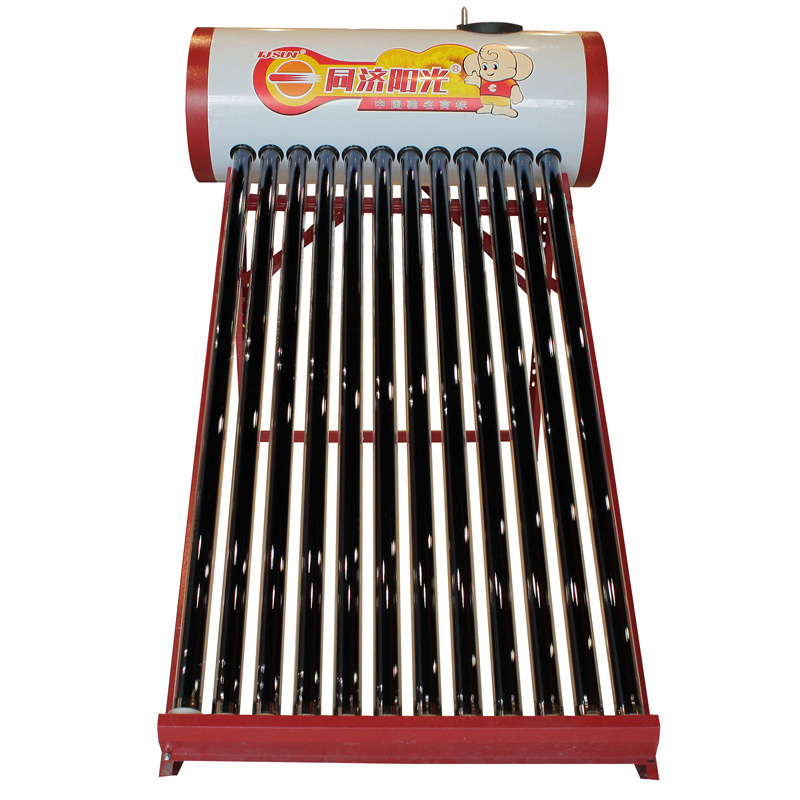

Non-Pressure Solar Water Heater with Cistern
| Price: |
US $ 92.5-100/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C |
| Prod Model: |
TJ-G2-series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Unpressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
SRCC,Solar Keymark |
| Composition: |
Tank Insulation |
| Max. Capacity: |
350L |
Product Description

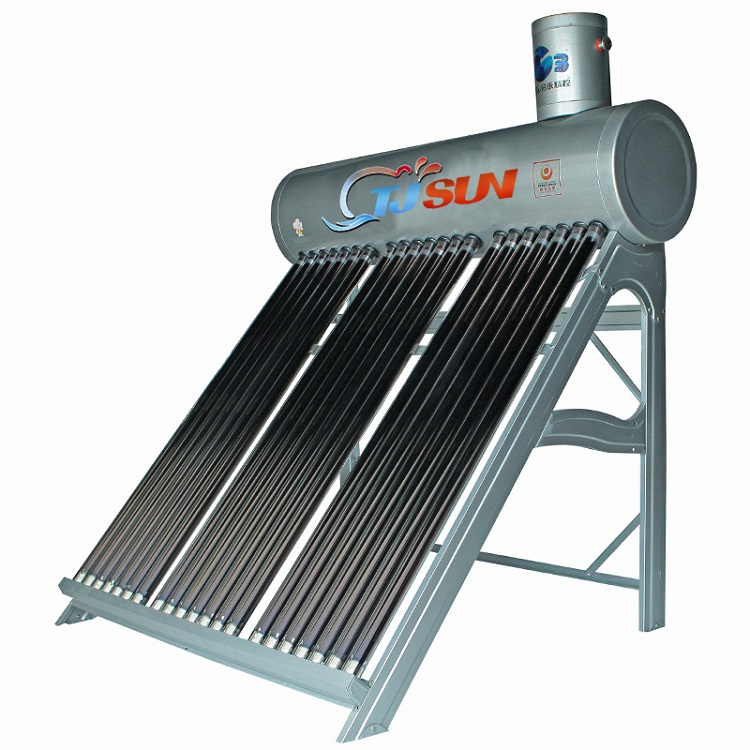

Non-Pressure Solar Water Heater with Cistern
Working principle:Non-pressurized solar water systems of all-glass evacuated collector intergraded with storage tank, are ideal for use in houses and other applications where cheap, reliable hot water supply is required. They are simple, economic and practical.

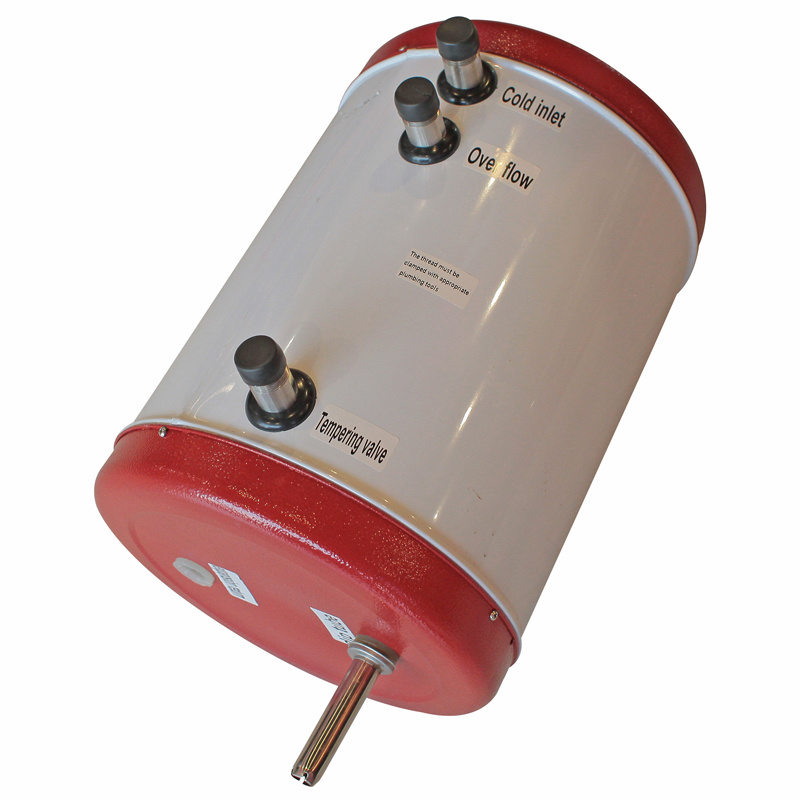

As the specific gravities of hot water and cold water are different, cold water goes downward and hot water goes upward. When cold water in evacuated tubes in heated, it becomes lighter and goes to the water tank, while cold water goes down to the evacuated rubes. Through this circulation, the cold water in the tank will be gradually heated.The inner tank is made of SUS304 stainless steel with high contents of Chromium and Nickel,and is welded by automatic argon arc welding process to realize corrosion resistance and long service life.
Advantages:1. Equipped with excellent solar-thermal conversion and low heat loss evacuated tubes.
2. Stainless steel SUS304-2Binner cylinder.
3. Simple structure, easy to assembly and install.
4. Highly efficient insulation with high pressure constant temperature and fixed quality integrated polyurethane foaming technology.
5. Together with the auxiliary electric heater, it can provide hot water even in the low-radiation days.
6. High wind and snow resistant performance.
7.15-year limited warranty.
| Non-Pressurized Solar Water Heater(TJ-G2-Series) |
| Model | Vacuum Tube | Collecting area(m2) | Tank | Frame Material | Material of inner and outer tank | Heat insulating layer | For how many people use | Dimension |
| TJ-G2-series | Tube Quantity | Dia/Len(mm) | Qty(pcs) | Dia outer/inner(mm) | Volume(L) |
| TJ-G2-12 | 12 | 58/1800 | 12 | 1.98 | 480/380 | 100 | Galvanized steel,thickness:1.5mm | 0.31mm Stainless Steel 304-2B for inner tank,Galvanized Steel for outer tank | 55mm thickness polyurethane foam | 3 | 1430*1740*1890 |
| TJ-G2-18 | 18 | 58/1800 | 18 | 2.23 | 480/380 | 150 | 3 | 1580*1740*1890 |
| TJ-G2-24 | 24 | 58/1800 | 24 | 2.98 | 480/380 | 200 | 4 | 2030*1740*1890 |
| TJ-G2-30 | 30 | 58/1800 | 30 | 3.73 | 480/380 | 250 | 5 | 2480*1740*1890 |
| TJ-G2-36 | 36 | 58/1800 | 36 | 3.98 | 520/400 | 300 | 6 | 2630*1740*1890 |
