| Prod Model: |
CA4(2015) |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Output Number: |
2 |
| Voltage: |
110V-240V as Per Customer Request |
Product Description
FEATURES

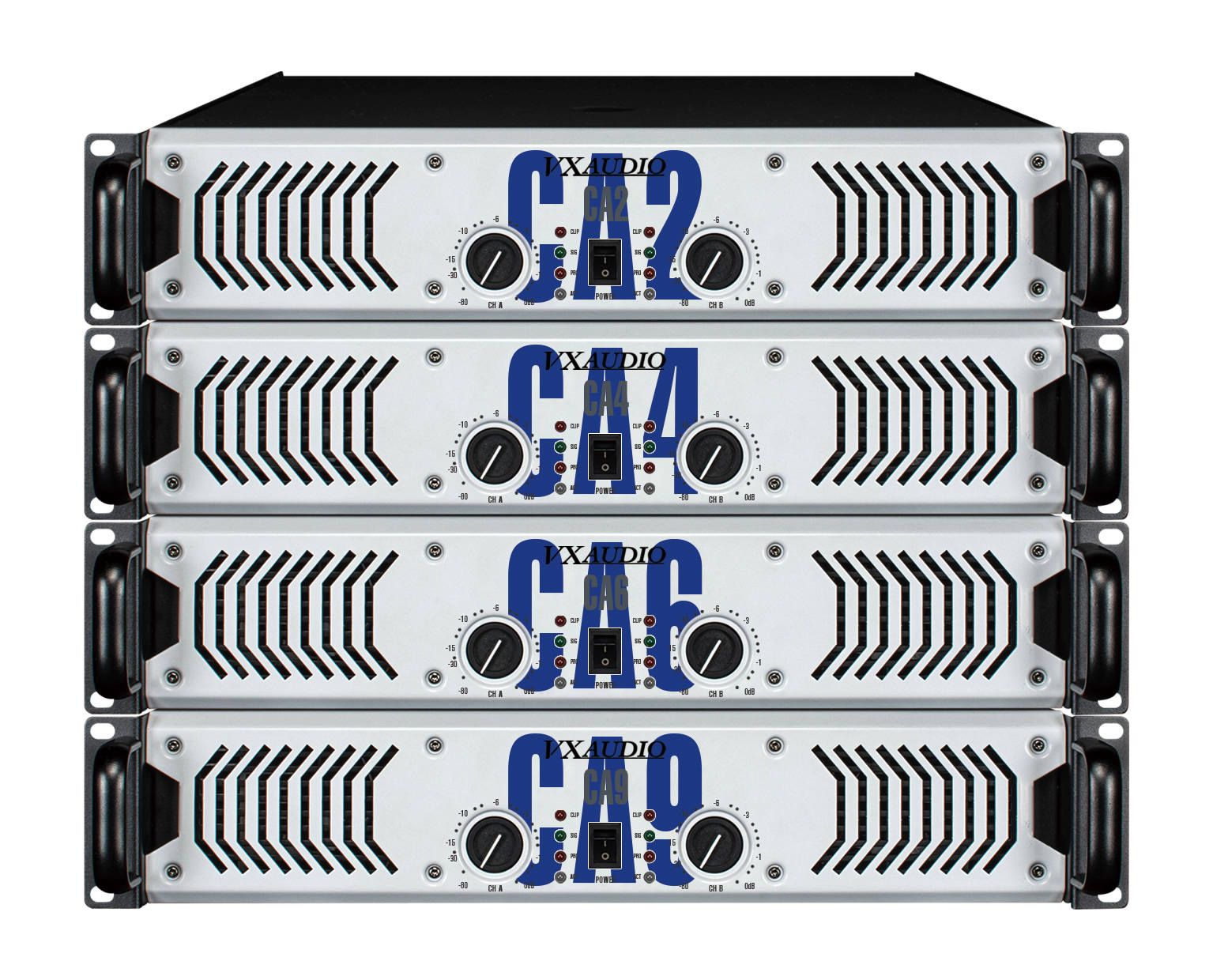

CA series have 2U-3U higher selection, and 200W-1300W power area.
CA series had some pursuits for faster of reaction speed higher of damping factor, and greater function, higher level of protect function,production technology of SMD excellent component. Amplifier of.CA series also can endure 2Ω stereo load, bridge 4Ω load, suit for drive line array speaker system.

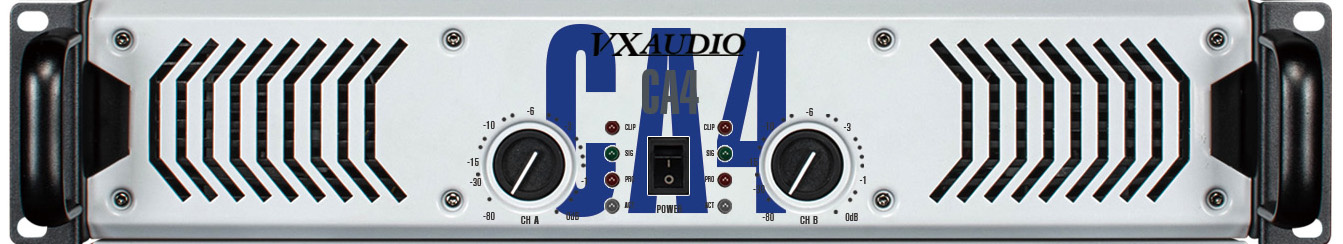

Model | CA4 |
| Stereo Power 8Ω | 2*300W |
| Stereo Power 4Ω | 2*450W |
| Stereo Power 2Ω | 2*600W |
| BTL 8Ω | 900W |
| BTL 4Ω | 1200W |
| Frequency Response | 20Hz - 20KHz +0/-0.3dB |
| THD+N | <0.03%@8Ω 1KHz |
| S/N Ratio | >95dB |
| Slew Ratio | 33V/u S |
| Damping Factor | >400 |
| Crosstalk | >70dB@8Ω 1KHz |
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) |
| Input Sensitivity | 0.775V/1.0V/1.4V |
| Protect | Overheat short circuits,DC,limit and--softstart,Output relay-Zero Current Switch,Intellctual Clip limiter |
| Height | 2U |
| Gross Weight | 23.5KG |
| Dimensions | 575×570×158MM |
Enping PuSheng Electronic Co., Ltd is professional of high professional power amplifier and signal processors.
With a team of engineers we are development of high quality products to keep up with the current market's demand. We have provided OEM service for many of our domestic and foreign companies. Our products have been sold to our clients in Asia, South American and So on.
No matter you are wholesaler, distributer or a rentals company, PuSheng have a wide selection of professional qudio products to suit your market's demand professional audio products.
PuSheng purpose is best quality, best price, best after-sales service, with you to create a brilliant future and becoming one of our faithful co-operative partners.
