| Prod Model: |
MC-929 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: |
620-950MHz |
| Oscillation Mode: |
Pll Synthesized |
| Hanheld Mic Color: |
Black, Grey. White, Blue |
| Style: |
Handheld Microphone |
| Application: |
Karaoke |
| Sound Channel: |
Mono |
| Signal Transmission: |
Wireless |
| Wireless Technology: |
UHF |
| Directivity: |
Uni-direction |
| Transducer Principle: |
Electrodynamic Microphone |
| Output Impedance: |
50-1000Ω |
| Sound Field Force: |
Combined Type |
| Connector(',s): |
XLR Mini |
Product Description
UHF & PLL wireless microphone
Our wireless microphone are very popular in high quality. We specialized in wireless microphone for almost 10 years. Welcome you to test our wireless microphone.

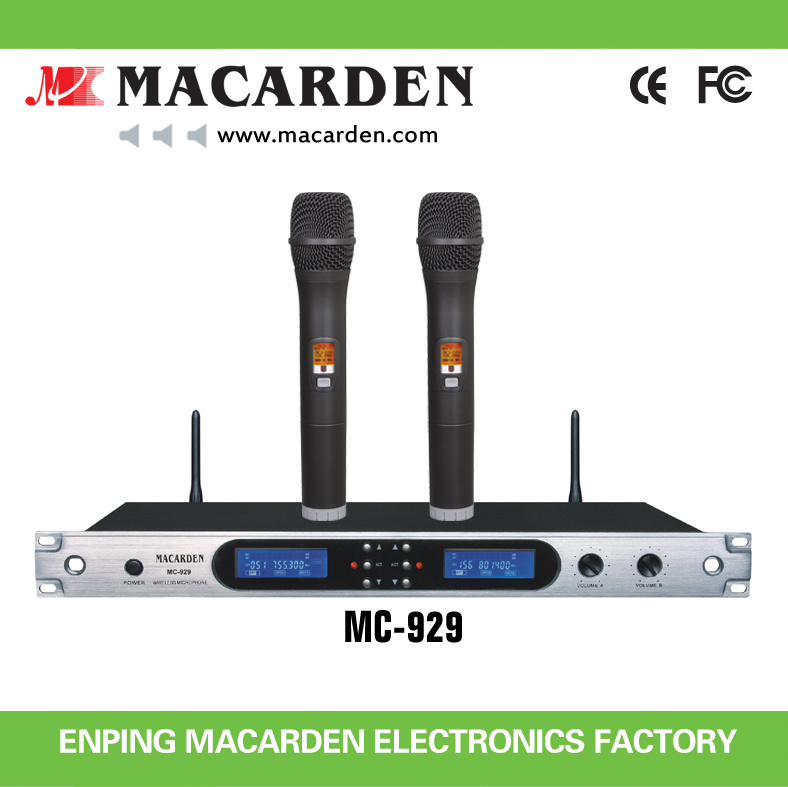

MC-929
PLL & UHF DUAL CHANNEL WIRELESS MICROPHONE
KEY FEATURES
1. Adopt the PLL Synthesized control technic, preset 200 non-interfered channels.
2. Transfer datas to transmitter by infrared.
3. Digital LCD information display.
4. Using high gain antenna, the space availability is more than 100 meters at the clearing.
5. EIA standard 1U dual channel rack-mountable receiver with metal chassisWith the exceptional RF transmission and reception of the dual channel circuitries, the MC-929 system, with a transmission range of more than 100meters, fully delivers all the reception and audio quality features that allow you to really enjoy the freedom of wireless without any of the problems.
Engineered For Dependable UHF Systems
As all the other MACARDEN wireless products, the MC-929 system has been engineered to be dependable dual-channel UHF system with a wide audio frequency range, high S/N ratio, and outstanding performance equal to that of any professional wireless systems costing much more. This is achieved through strict component selection and high quality circuit design. A delicately designed silence circuit eliminates static noise when the transmitters are either turned off or out of transmission range. An auto mute circuit is incorporated in these systems to effectively eliminate the popping noise when the switch is turned on or off.
System Designed For Accessibility
The MC-929 system has been designed and manufactured to be dependable, problem free, versatile and easy to use. The MC-929 system is intended to be readily accessible to everyone with exceptional performance at a preferred and affordable price.
APPLICATIONS
Musician; disc jockey (DJ); karaoke jockey (KJ); church; school; conference room; karaoke; home entertainment
MC-929 RECEIVER
RF Frequency Range: 620-950MHz
Channels by Automatic Channels Targeting: Multi Channels 200
Oscillation Mode: PLL Synthesized
Receiving Sensitivity: -90dBm
Signal/Noise Ratio:>103dB(A)
Max Deviation: ±48KHz
T.H.D: <0.5%@1KHz
Audio Output Level: 3.5dBv(1.5V)@1KHz
Power Supply:Built-in 100/240V AC Switching Power Sup
Working Range: Up to 100m
Dimensions:48X22X4.4cm
MC-929 HANDHELD TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max deviation:±68KHz
Spurious Emissions:<-55dBc
Sound Cartridge:dynamic microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:26.5X5 cm
MC-929 BODYPACK TRANSMITTER
RF Frequency Range: 620-950MHz
Frequency Regulation:IR Sync
RF Output Power:10mW/30mW/country dependent
Max Deviation:±68KHz
Spurious Emissions:<-55dBc
Sound head:condenser microphone
Battery Requirement:2X1.5V AA alkaline
Dimensions:11X6.7cm
Remarks:Refer to actual product in the event of product discrepancy,Frequency range and peak deviation comply with the regulations of different countries.
Enping Macarden Electronics Factory. is located in Enping, Guangdong province, the "microphone manufacturing base in China". Our company, is a professional manufacturer specialized in the development, manufacture and corresponding sells of various UHF wireless microphone series and Conference System etc. We have a dynamic team, which is characterized by devotion, teamwork, integrity, and vision for the future. Combined with our advanced manufacturing and processing equipment, and refined craftsmanship, our products can be easily distinguished from those of our competitors. Up holding the principle of "Business by Quality, Making Development by Innovation, Customer First", we have been striven to meet the needs of customers with high performance, high quality and innovative designs of UHF wireless microphone series products.
Currently, our main markets are Southeast Asia, Europe, North and South America, and it is our aim to export our products worldwide so that more people may enjoy them. Our customers prefer us because of our trustworthiness, innovative products and professional after-sales service.
We will continue to progress through learning from advanced technology in the world, and work together with friends from home and abroad to provide high quality products and perfect after-sales service to satisfy the needs of customers.
