| Prod Model: |
SMART 82 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channels: |
8 Mono, 1 Stereo |
| Mono Channel EQ: |
3-Band |
| Stereo Channel EQ: |
3-Band |
| Phantom Power: |
+ 48 V |
| Gain Range: |
60dB |
| Dynamic Range: |
128.5 dB |
| Distortion: |
Ower Than 0.0007%(20Hz - 50kHz) |
| Fx Processor: |
99 DSP |
| USB: |
with |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Application: |
Amusement |
| Certification: |
RoHS |
Product Description

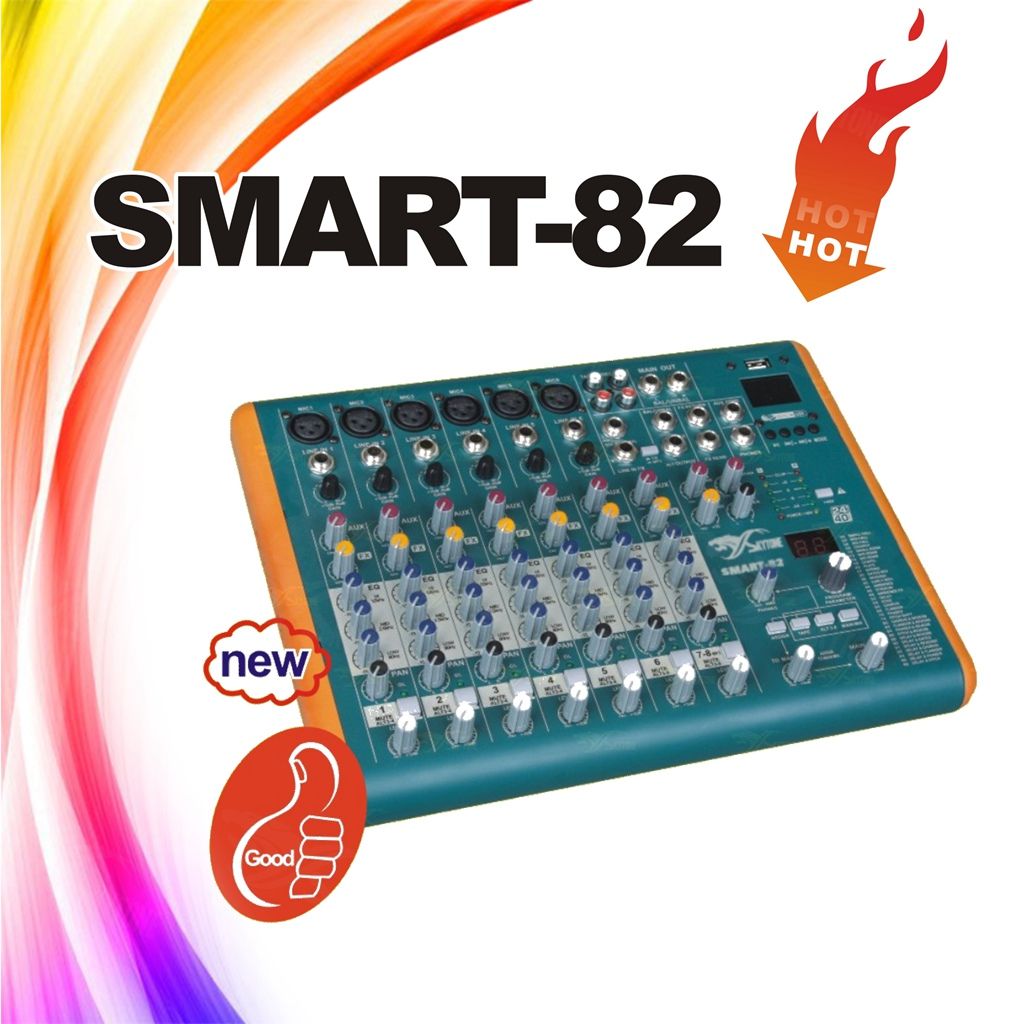

musical sound system HI-FI USB mini audio mixing console
On heat promotion Now !!!
99 types of DSP effect;
With USB interface;
4 channel to 8 channel are available;
Order more than 10PCS before 1st. Sep. , you will receive a coupon of $30 for your future order!!!
Model | SMART42/GRACE4 | SMART62 | SMART82 | SMART122 |
| Mono/stereo input channels | 2/1 | 4/2 | 6/2 | 10/2 |
| Mp3 Play | Yes | Yes | Yes | Yes |
| Mic Preamps | 2 | 4 | 6 | 10 |
| Phantom Power | Yes | Yes | Yes | Yes |
| Mono channel EQ | 3-band | 3-band | 3-band | 3-band |
| Stereo channel EQ | 3-band | 3-band | 3-band | 3-band |
| Aux Sends channel | 2 | 2 | 2 | 2 |
| FX Returns | 1 | 1 | 1 | 1 |
| FX Processor | 99 DSP | 99 DSP | 99 DSP | 99 DSP |
| Subgroups | 2 | 2 | 2 | 2 |
| power output | -- | -- | -- | -- |
FEATURES:
Ultra-thin fashionable palm design
Ultra-high dynamic & low-noise
High quality Mic preamp
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input processing
Distortion lower than 0.0007%(20hz - 50khz)
48V Phantom for condenser microphone
Radio frequency interference resistance
High dynamic circuit input + 4/-10 operational control
Mono channel 3-band equalizer (low; middle; high) design
2 Aux Sends, 1 Stereo Return, mute LED prompt for overload
99 types of DSP effect
CD/mobile phone Multi-input sources matrix with separate level controls
High resolution 6 LED lights for stereo
High density dust-proof , sturdy and durable chassis
Specifications |
Mic Input (Maximum levels) |
30dBu |
Line Input (Maximum levels) |
21dBu |
All other lnput (Maximum levels) |
22 dBu |
Mixer Rated Output (Main outs) |
+4dBu |
Mixer Rated Output (All other outputs) |
+4 dBu |
Mixer Rated Output (Maximum output) |
22 dBu |
Frequency response (Mic input to main output ) |
+0,-1 dB,<10Hz to 80kHz
+0,-3 dB,<10Hz to 120kHz |
Connection Impedance (Mic inputs): |
4.7ohms |
Connection Impedance (Line Inputs) |
>10k ohms
|
Connection Impedance (Outputs) |
>120 ohms
|
EQ(each band): |
±15dB |
Mono channel EQ: ( High ) |
12KHz |
Mono channel EQ : ( Mid ) |
2.5kHz |
Mono channel EQ : ( Low ) |
80Hz |
Stereo channel EQ: ( High ) |
12KHz |
Stereo channel EQ :( Mid ) |
2.5kHz |
Stereo channel EQ: ( Low ) |
80Hz |
