| Prod Model: |
MG32/14FX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Mg32/14fx |
| Mixing Channels: |
24 Mono + 4 Stereo |
| Group: |
4 |
| Aux: |
8 (2X Alternative) |
| Main: |
Stereo, Mono |
| Input Channel Functions: |
CH1-24: Hpf, 3-Band MID-Sweep Peq, Intert I/O; CH2 |
| Output Channel Functions: |
Lpf on Mono out |
| On-Board Processors: |
2X Spx |
| Mic Inputs: |
24 |
| Phantom Power: |
+48V DC; on/off Per 8CH |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Touch Control |
| Speaker Material: |
Metal |
| Application: |
Commercial |
| Certification: |
CCC |
| THD: |
<0.005% |
| Speaker System: |
Audio Mixer |
| Monitor: |
No |
Product Description

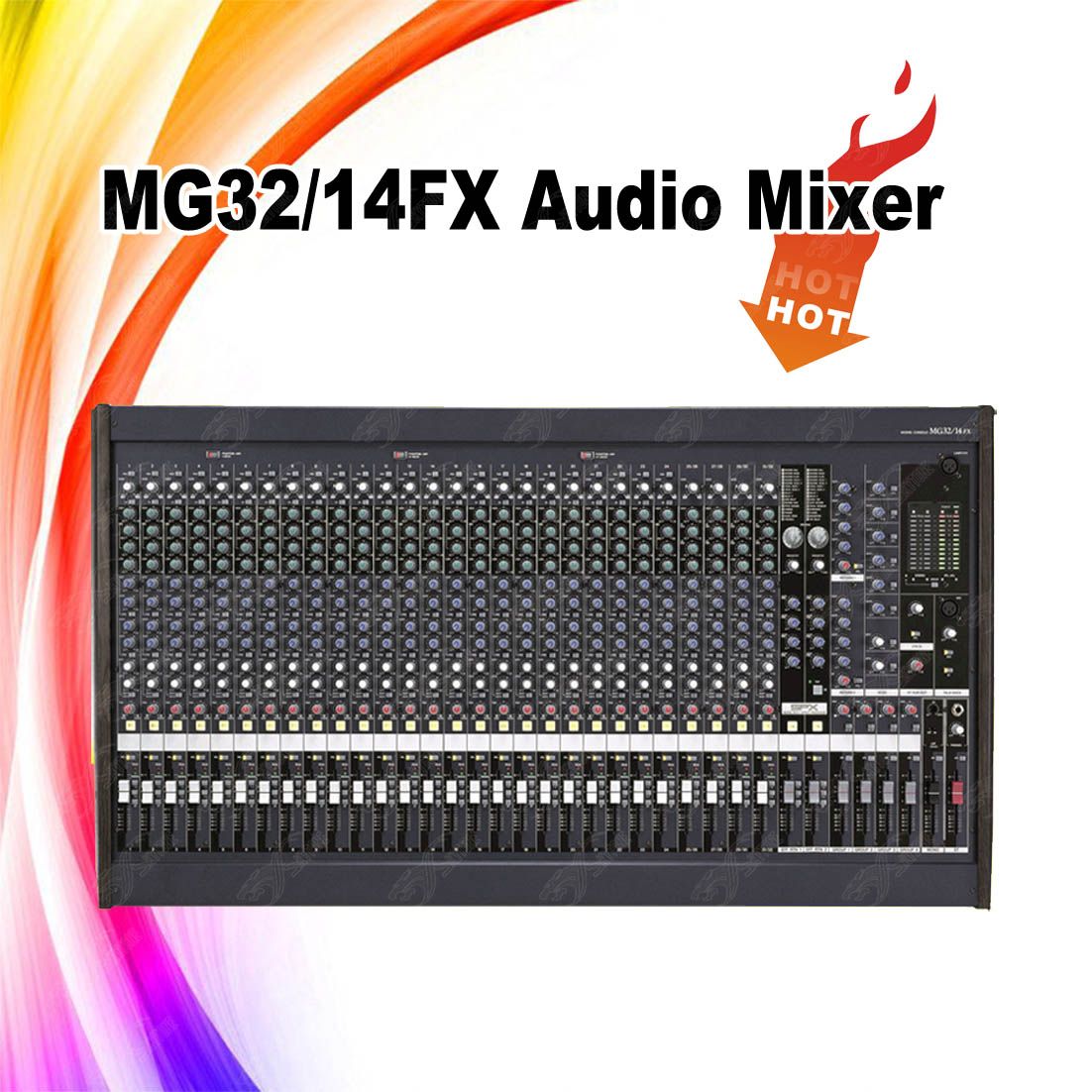

MG32/14FX style mixer/mixing console/console
Serious live sound mixer with dual SPX built-in
These 32-input models are suitable for serious live sound applications in which a substantial number of sources must be handled efficiently. The MG32/14FX also feature dual Yamaha SPX effect processors built in, so you have everything you need for great sound right in the console. A comprehensive complement of auxiliary and group buses provides extensive mixing and signal routing versatility.
Main Features
--Serious Consoles for Live Sound or Installations
--High Input Capacity for Live Sound
--Versatile Inputs
--Top-quality Microphone Preamps
--Switchable Phantom Power
--Insert I/O
--Mid-sweep 3-band Mono Channel EQ, 4-band Stereo Channel EQ
--Multi-bus Configuration with a Total of 14 Buses
--Ample Sends and Returns
--Comprehensive Output Connectors
--Reliable XLR Output Connectors
--Variable LPF on the Mono Output
--12-segment Level Meters
--High-performance Digital Effect Processors Built In
--Illuminated Switches for High Visibility
--Talkback for Convenient Communication
--Intuitive Controls and High Reliability

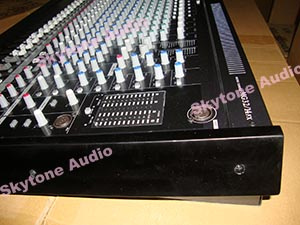

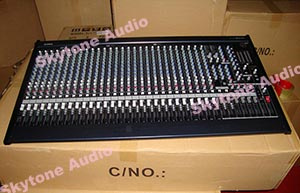

Real photos:
| Yamaha style mixer/mixing console Specification: |
|
| Model | MG32/14FX |
| Outline |
|
| Mixing channels | 24 Mono + 4 Stereo |
| GROUP | 4 |
| AUX | 8 (2x alternative) |
| MAIN | Stereo, Mono |
| Input channel functions | CH1-24: HPF, 3-band mid-sweep PEQ, Intert I/O; CH25-32: 4-band PEQ |
| Output channel functions | LPF on Mono out |
| On-board processors | 2x SPX |
| Mic inputs | 24 |
| Phantom power | +48V DC; ON/OFF per 8ch |
| Line inputs | 4x Stereo |
| Control and others | Foot switch |
| General specifications |
|
| Total harmonic distortion | Less than 0.1% |
| Frequency response | 0, +1.0, -3dB 20Hz-20kHz |
| Hum & noise level(Equivalent input noise) | -128dBu |
| Hum & noise level(Residual output noise) | -99dBu |
| Crosstalk | -70dB |
| Power requirements | Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz |
| Power consumption | 120W |
| Dimensions | 1027mm*140mm*551mm |
| Net weight | 22KG |
