| Prod Model: |
MK-400B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Composition: |
Lcd Display |
| Communication: |
Wireless |
| Pointing Feature: |
Hypercardioid |
| Color: |
Black |
Product Description

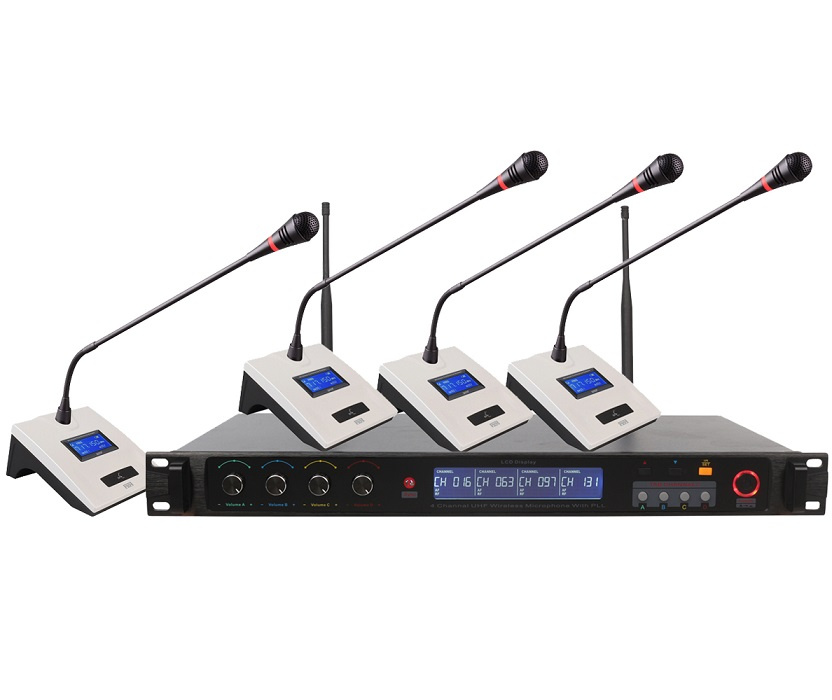

Model Name: MK-400B 4 Channel Wireless Conference Microphone
System Characteristic
Frequency range: 610-960MHz (depend on applicable country regulations)
Channel: 160 presetting frequencies
Modulation: Wide band FM
Max Deviation: ±45KHz
Frequency response: 50Hz-15 KHz
S/N. :> 105dB (A)
T.H.D. (1 KHz): <0.3%
Operational Temperature: -10ºC-55ºC
Working Range: 80M (in ideal environment)
Receiver
Oscillation mode: PLL (Digital frequency synthesizer)
F/N Ratio: ≥80dB
P/N Ratio: ≥80dB
Sensitivity: 5dBuV
Audio output Voltage: Balanced (XLR jack): 250mV/600Ω
Unbalanced (1/4 jack): 400mV/3KΩ
Working Voltage: DC 13.5-16V
Working current: ≤800mA
Handheld transmitter
RF output power: 30mW (depend on applicable country regulations)
Oscillation mode: PLL (digital frequency synthesizer)
Stability: <30ppm
Dynamic range: ≥100dB (A)
Frequency response: 50Hz-15 KHz
Max input sound pressure: 130dB SPL
Mic capsule: dynamic
Power supply: AA alkaline batteries
Conference and Bodypack transmitter
RF output power: 30mW (depend on applicable country regulations)
Oscillation mode: PLL (digital frequency synthesizer)
Stability: <30ppm
Dynamic range: ≥100dB (A)
Frequency response: 50Hz-15 KHz
Max input sound pressure: 130dB SPL
Mic capsule: condenser
Power supply: AA alkaline batteries
MineSound Electronics Co., Limited is a professional electronic equipments manufacturer devoting to designing, manufacturing, marketing and distributing professional electronics audio equipments, focusing on wired and wireless microphones, conference systems and instrument microphones etc.
Stable quality, rapid delivery, best quality control and high quality after service is always the foundation of our future develop direction.
We have built up the best market sales network, and got the high praise from all over the world. The Best market sensitivity assures our R&D department can meet with different demands of the market. We offer the best solution for the agents, distributors, projects synthesized dealer etc.
OEM and ODM business is also welcome.
